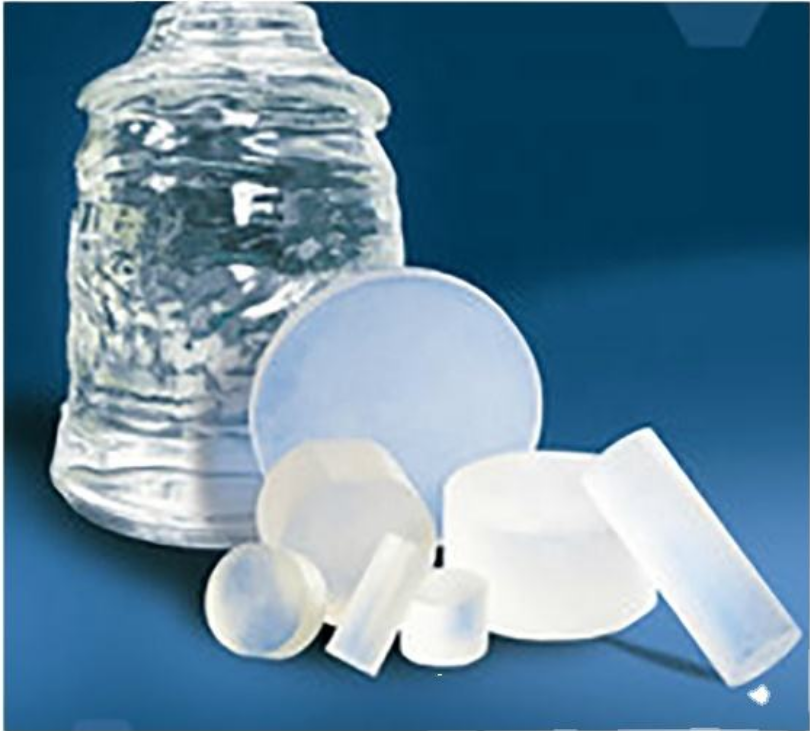

Sapphire optical glass engineering guide
- Share
- publisher
- Felix Glass
- Issue Time
- Jul 25,2026
Summary
Felix Glass’s Sapphire Optical Glass Engineering Guide supports optical engineers designing single-crystal sapphire components. It covers crystal orientation selection, machining tolerances, polishing grades, AR/AF coating schemes for medical, aerospace, industrial and laser optical systems.
Engineering Reference For Optical System Designers Felix Glass compiles this practical engineering handbook for OEM optical engineers, covering single-crystal sapphire material selection, crystal orientation, mechanical specification, polishing grades, vacuum coating options, drawing standards and manufacturability review. This guide supports your optical window, touch cover, sensor port and high-performance optical component design across medical, aerospace, industrial and laser equipment. Mohs hardness 9, second only to diamond. High compressive strength, excellent abrasion resistance for frequently cleaned touch interfaces and rugged sensor viewports. Continuous transmission from deep UV ~170 nm through visible spectrum to mid-infrared 5.5 μm. Suitable for imaging, thermal detection and laser transmission systems. Nearly inert against most acids, alkalis and disinfectants. Stable up to 1500°C under normal atmosphere, compatible with repeated sterilisation cycles for medical devices. Design reminder: Sapphire is anisotropic. Crystal cut plane directly affects birefringence, optical uniformity and mechanical strength for precision optical systems. Choosing the correct sapphire crystal plane is one of the most critical early-stage design decisions. Felix Glass provides orientation marking and inspection records upon request. For polarisation-sensitive optical systems, specify birefringence control targets to lock crystal axis during pre-production sampling. Standard thickness tolerance ±0.03 mm; precision grade ±0.005 mm. Support radiused corners, cutouts, through holes, stepped edges, chamfer and free-form contour machining. Commercial grade: 60/40 scratch-dig. Precision optical grade: 40/20, 20/10. Flatness from λ/2 down to λ/10 @632.8nm upon project demand. Confirm crystal orientation, tolerances, edge geometry, cosmetic zones and coating requirements. Cut sapphire boule according to specified crystal plane, initial stress relief annealing. Diamond grinding to achieve near-net shape, edge profiling and hole machining. Rough polishing → fine polishing → final optical surface finishing, flatness inspection. Vacuum coating, full optical & cosmetic inspection, clean-room vacuum packaging. Coating selection depends on operating wavelength, reflection requirement, cleaning cycles and environmental exposure. Felix Glass supports masked coating zones on custom sapphire components. All coating durability targets must be agreed with defined wipe protocol before sampling and validation. Biocompatible touch covers, sensor windows resistant to repeated disinfectant wiping. IR sensor viewports, airborne camera protective windows under wide temperature range. Furnace monitoring windows, plasma chamber optical ports, corrosive process observation. High laser damage threshold optical windows for industrial laser and inspection systems. Outer contour, hole locations, radii, thickness, datum reference scheme and all tolerances. Crystal orientation requirement, blank grade, annealing specification if required. Scratch-dig grade, flatness, parallelism, coating type, coating masked zones. Felix Glass engineers provide free DFM review for your sapphire optical drawing. We point out manufacturability risks and propose optimised tolerance suggestions before quotation. Sapphire delivers far higher hardness, thermal conductivity and mid-infrared transmission, suitable for harsh environment. Fused silica is more cost-effective for benign UV-visible systems with low abrasion risk. No. C-plane minimises birefringence for most imaging systems. Polarisation-insensitive structural windows can select alternative crystal planes based on cost and availability. The sapphire substrate itself withstands autoclave cycles. The final reliability depends on coatings, printing and adhesive stack; full stack validation is recommended for medical devices. Commercial polishing Ra <10 nm; precision optical polishing Ra <1 nm for high-performance optical assemblies. Yes. Felix Glass accepts small-batch prototype orders for engineering verification before mass production release. Share your optical specification, engineering drawing, working environment parameters, target coating performance, prototype quantity and estimated annual volume. Our optical engineering team will complete manufacturability assessment and formal quotation within 2 working days. Optical Engineering Contact: james@felixglass.comSapphire Optical Glass Engineering Guide
Submit Optical Design Drawing For DFM Review
Fundamental Material Properties of Single-Crystal Sapphire
Mechanical Performance
Optical Transmission
Chemical & Thermal Stability
Crystal Orientation Selection Guide
Machining, Tolerance & Surface Polishing Specification
Dimensional & Geometric Tolerance
Optical Surface Quality
Standard Cleanroom Sapphire Production Workflow
Drawing & DFM Review
Blank Cutting & Orientation
CNC Grinding & Shaping
Multi-Stage Optical Polishing
Coating, Inspection & Packing
Available Optical Coating Options For Sapphire
Coating Type
Typical Application
Single-Layer AF Anti-Fingerprint
Medical touch panels, easy surface cleaning, anti-smudge performance
Broadband AR Anti-Reflection
Visible / near IR imaging systems, maximise light transmission
AR+AF Composite Stack
Medical diagnostic HMIs, combines low reflection & stain resistance
DLC Diamond-Like Carbon
High-abrasion environments, corrosion and particle erosion protection
Target Application Fields For Sapphire Optics
Medical Diagnostic Equipment
Aerospace & Defence Optics
Industrial High-Temp Viewports
Laser & Precision Metrology
Required Content On Sapphire RFQ Engineering Drawing
Geometry & Datum
Sapphire Material Rules
Optical & Surface Rules
Engineering Support Service
Sapphire Optical Engineering FAQ
What is the difference between sapphire and fused silica optical window?
Does every optical system require C-plane sapphire?
Can sapphire components survive autoclave sterilisation?
What surface roughness standard can Felix Glass achieve?
Is custom shaped sapphire available for low prototype quantities?
Request DFM Review & Custom Sapphire Quotation
