Optical Manufacturing Capabilities: One-Stop Precision Optical Production
Full-stack integrated engineering and manufacturing for high-end optical components, infrared optics, sapphire optics, quartz glass and functional display glass. Covering optical design, precision machining, ultra-precision polishing, thin-film coating and full-process quality verification for global OEM industrial optical projects.
Overview of Felix Glass Manufacturing System
High-performance optical components demand tightly controlled, full-cycle production workflows. Every process stage determines surface precision, optical transmittance, thermal stability and long-term service performance of glass and crystalline optical substrates.
Our closed-loop industrial system supports prototype validation, customized OEM development and standardized large-scale mass production. We adapt processing routes for sapphire, fused silica, quartz, ZnS, ZnSe, BK7/K9 and calcium fluoride materials.
From early-stage optical scheme consultation to final interferometric quality inspection, Felix Glass delivers consistent precision for aerospace, defense EO/IR, semiconductor, medical, machine vision and laser equipment manufacturers worldwide.
Full Engineering & Manufacturing Architecture
Our workflow is divided into six interconnected professional systems covering all stages of custom optical component fabrication.
Core Production Challenges For Precision Optics
Micron & Sub-Nanometer Tolerance
Ultra-strict dimensional and surface figure requirements for imaging and infrared optical systems.
Multi-Material Machining Differences
Sapphire, quartz, infrared crystals require differentiated cutting, grinding and polishing processes.
Surface Contamination Control
Particle and scratch management critical for cleanroom semiconductor and aerospace optics.
Coating Adhesion & Stability
High-performance AR, HR, IR coatings must resist temperature cycling and environmental erosion.
Core Optical Manufacturing Systems
- Engineering Design System: optical scheme, structural optimization, material selection & prototype verification
- Precision Fabrication System: CNC cutting, contour shaping, drilling, milling and precision forming
- Optical Surface Processing System: fine grinding, double-sided ultra-precision polishing & flatness calibration
- Thin Film Functional Coating System: AR, HR, spectral filter, AG/AF, infrared optical coatings
- Glass Strengthening & Post-Processing: chemical strengthening, laser etching, printing and optical bonding
- Full‑Range QA System: dimensional testing, surface screening, optical parameter inspection & batch traceability
Supported Optical Product Systems
- Precision Optical Windows & Sight Glass
- Sapphire & Infrared Optical Domes
- Fused Silica & Quartz Glass Components
- BK7 / K9 Optical Prisms & Lenses
- IR ZnS, ZnSe, CaF2 Optical Substrates
- AG / AF / AR Functional Display Cover Glass
Recommended Optical Materials Comparison Table
| Material | Transmission Range | Main Advantages | Typical Applications |
|---|---|---|---|
| Sapphire (Al₂O₃) | UV–5 μm | Extremely high hardness, scratch resistance, high temperature capability | High‑temperature windows, underwater cameras, aerospace sensors, protective domes |
| ZnSe (Zinc Selenide) | 0.6–14 μm | Excellent LWIR transmission, low absorption | Thermal imaging, IR cameras, CO₂ laser systems |
| ZnS (Zinc Sulfide) | 0.4–14 μm | Wide spectral transmission, stronger mechanical properties than ZnSe | Military IR systems, thermal imaging, multispectral sensors |
| Germanium (Ge) | 2–14 μm | High refractive index, excellent LWIR performance | Thermal cameras, infrared imaging systems |
| Silicon (Si) | 1.2–15 μm | Lightweight, high thermal conductivity, good IR transmission | LWIR imaging, IR sensors, laser systems |
| BK7 / H‑K9L Optical Glass | 350–2500 nm | Cost‑effective, excellent visible transmission, easy processing | Security cameras, LiDAR, optical sensors |
| Fused Silica (Quartz) | 180–2500 nm | Very low thermal expansion, excellent UV transmission | UV optics, laser systems, LiDAR, scientific instruments |
| Borosilicate Glass | 350–2500 nm | Thermal shock resistance, economical | Industrial cameras, outdoor sensors, lighting systems |
| Sapphire Ceramic / Spinel | UV–5 μm | High strength, transparent armor capability | Aerospace windows, harsh environment optical protection |
| Calcium Fluoride (CaF₂) | 0.2–8 μm | Excellent UV and IR transmission, low dispersion | UV imaging, spectroscopy, scientific instruments |
| Magnesium Fluoride (MgF₂) | 0.2–7 μm | Excellent UV performance, chemical resistance | UV optical systems, spectroscopy |
| Zirconium Fluoride (ZrF₄) | 0.3–7 μm | Good mid‑IR transmission | IR fiber systems, infrared sensors |
| Chalcogenide Glass | 1–12 μm | Moldable IR material, lightweight | Thermal imaging, compact IR optics |
| Aluminum Oxynitride (ALON) | UV–5 μm | Transparent armor, extreme hardness | Defense optical windows, protective domes |
| Spinel (MgAl₂O₄) | UV–5 μm | High impact resistance, better toughness than sapphire | Aerospace, missile seeker windows, protective covers |
In‑House Production Workflows
Ultra‑Precision CNC Machining
Custom contour cutting, drilling and milling for complex‑shaped optical blanks.
Sub‑Nanometer Optical Polishing
Optical‑grade surface finishing for low distortion imaging and infrared optics.
Custom Thin‑Film Coating
Anti‑reflection, high‑reflection, infrared and functional coating services.
Laser Etching & Patterning
Precision marking, shape cutting for flat glass and crystal components.
Chemical Strengthening Treatment
Improve surface hardness and impact resistance for cover glass products.
Interferometric Optical Inspection
Flatness, roughness, scratch‑dig and optical performance testing before delivery.
Quality Assurance & Production Standards
- Compliant with ISO 10110 international optical drawing specifications
- Full dimensional measurement & surface defect screening for each batch
- Coating adhesion, spectral transmittance and environmental aging testing
- RoHS & REACH compliance for all optical glass and crystal materials
- Complete batch production records and full product traceability
- Cleanroom available for contamination‑sensitive optical assemblies
Served Industrial Application Fields

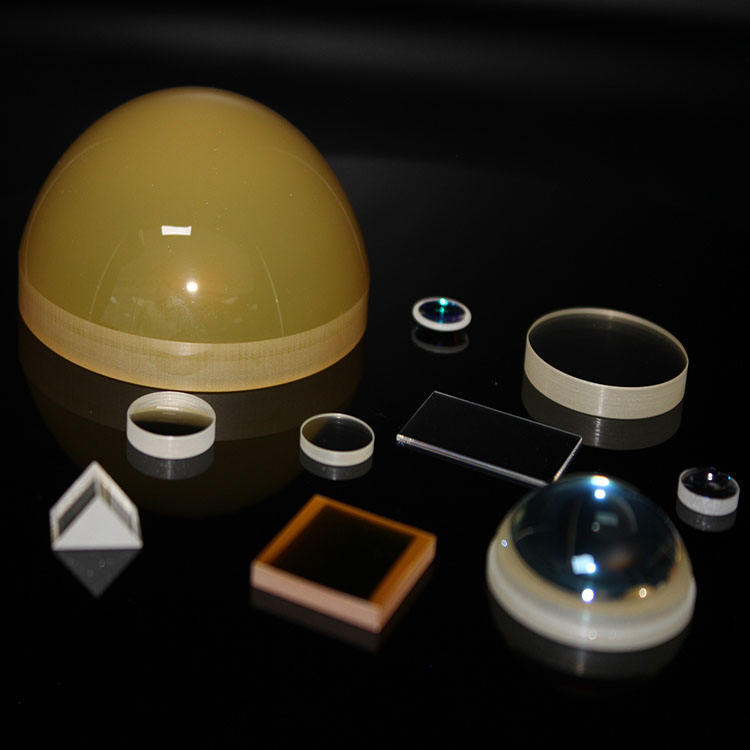

Aerospace & Defense EO/IR Systems
Lightweight sapphire & infrared domes for drone and turret thermal imaging.

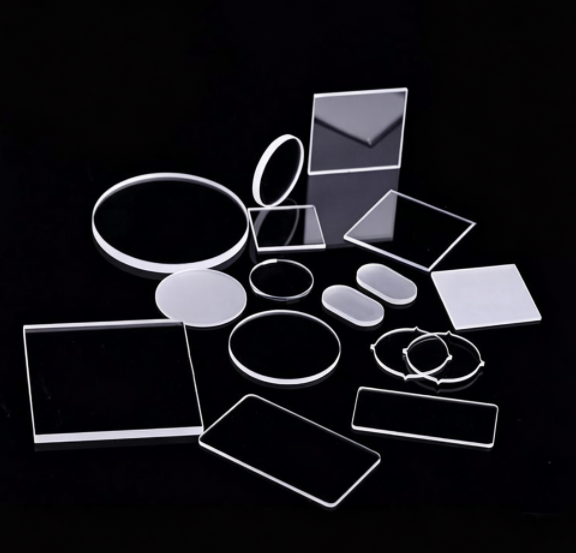

Semiconductor Processing Equipment
Fused silica & quartz optics for wafer inspection, metrology and lithography systems.
Machine Vision & Laser Equipment
Optical windows, prisms and protective glass for industrial automation.
Medical & Scientific Instruments
Low‑distortion optical substrates for detection, measurement and imaging devices.
Why Choose Felix Glass For Custom Optical Manufacturing?
- Vertically integrated full‑process optical fabrication from raw blanks to finished coated components
- Rich material processing experience covering sapphire, quartz, IR crystals and optical glass
- Flexible production: rapid prototype sampling to stable large‑volume mass manufacturing
- In‑house coating workshop to control optical performance and delivery lead time
- Dedicated optical engineering team providing pre‑production material & process consultation
Related Precision Optical Solutions
Frequently Asked Questions
Q: Do you support custom optical components according to engineering drawings?
A: Yes, we accept OEM custom manufacturing based on customer optical drawings, specifications and wavelength requirements.
Q: Can you process multiple different optical materials in one order?
A: We support sapphire, fused silica, quartz, BK7/K9, ZnS, ZnSe and CaF2, and can combine multi‑material projects.
Q: Are prototype samples available before mass production?
A: We provide small‑batch prototype sampling service for optical equipment developers.
Q: Can you provide optical coating together with substrate processing?
A: Yes, we offer one‑stop service including blank fabrication, polishing and customized thin‑film coating.
Submit Your Technical RFQ
To receive formal manufacturing quotation for custom optical components, please prepare these details:
- Optical drawings, dimensional tolerances and surface quality specifications
- Required base optical material
- Working wavelength range and coating requirements (if any)
- Surface flatness, roughness and optical performance targets
- Demand: prototype sampling or mass continuous order
Our optical engineering team will complete technical evaluation and offer formal quotation within 24–48 working hours.
