Core Pain Points We Solve
Standard half-sphere domes have limited field of view and leave blind monitoring areas
Ordinary dome surfaces produce severe edge distortion for wide-angle optical imaging
Plastic and low-grade glass domes scratch easily in airborne & marine working environments
Few suppliers provide professional optical simulation for custom hyper-hemisphere outlines
Product Key Advantages
Ultra-Wide Panoramic Field Of View
Unique hyper hemispherical curved design realizes full-view blind-spot free monitoring for panoramic camera systems.
Low Distortion Precision Contour Polishing
Aerospace-grade ultra-precision surface processing effectively reduces edge image distortion under large FOV shooting.
Dual-Band Sapphire & IR Material Options
High-purity sapphire and infrared substrates support visible + MWIR/LWIR dual-spectrum panoramic monitoring.
Custom Broadband AR Optical Coating
Custom anti-reflection coating improves light transmittance, guarantee clear all-day and thermal imaging effect.
Harsh Environment Resistance
Mohs 9 sapphire material resists sand abrasion, salt fog and drastic temperature changes.
Free Optical Simulation Support
Our optical team provides professional optical simulation according to your FOV and turret structure requirements.
Engineering Specification Table
| Parameter Item | Custom Technical Specification |
|---|---|

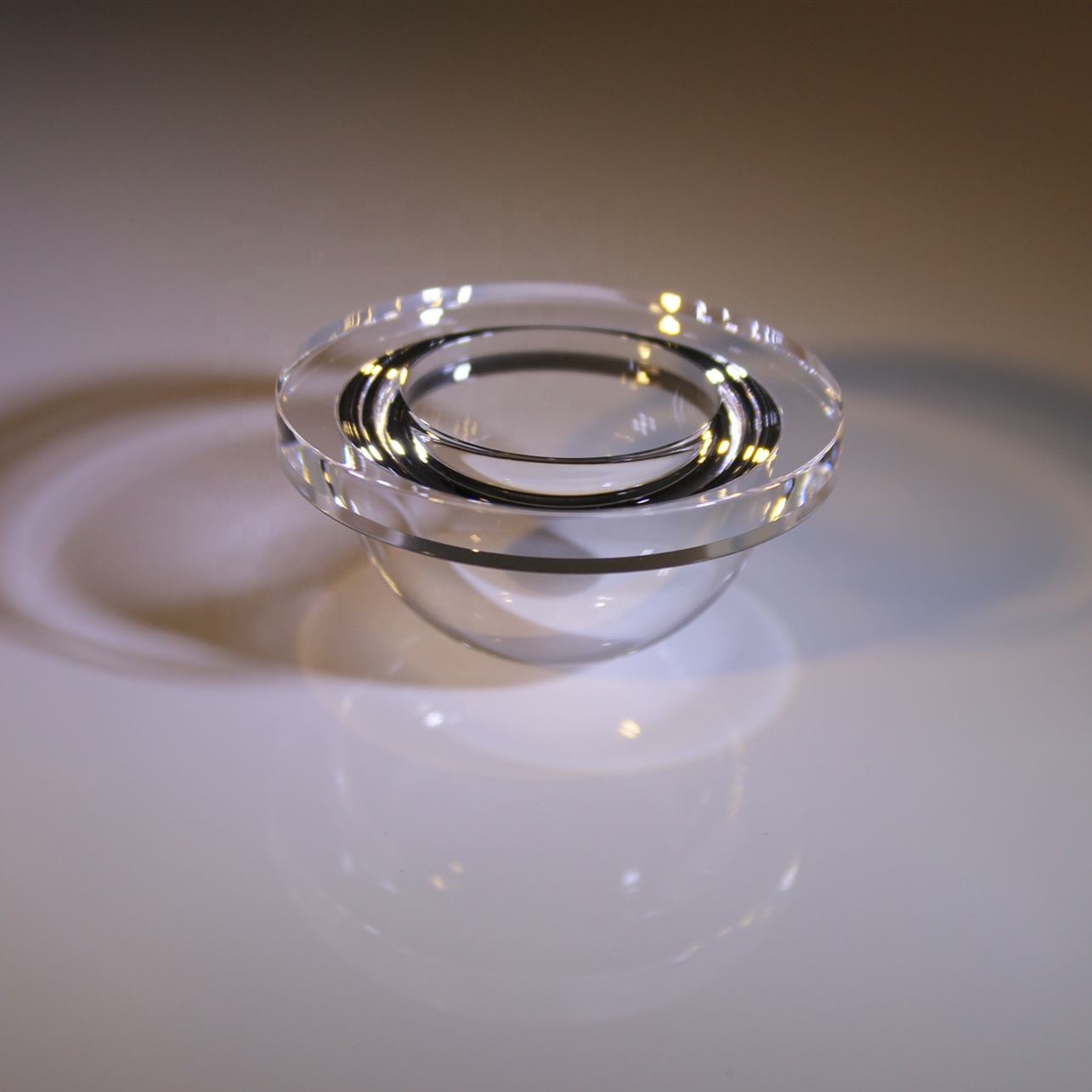

| Product Type | Hyper Hemispherical Ultra Wide FOV Optical Dome |
| Core Materials | Single Crystal Sapphire, ZnS, ZnSe IR Optical Substrate |
| Field Of View | Custom ultra-wide panoramic large FOV hyper hemisphere profile |
| Optical Surface Quality | 20/10, 40/20 MIL aerospace precision grade |
| Custom Coatings | Single-band AR, Dual-band BBAR anti-reflection coating |
| Imaging Performance | Ultra-low edge distortion for blind-spot free panoramic observation |
| Processing Feature | Hyper contour CNC grinding, precision polishing, edge & flange customization |
| Application Scenarios | ROV panoramic camera, aerial inspection drone, airborne thermal imaging system |
In-House Hyper Hemisphere Dome Manufacturing Capability
All ultra-wide FOV hyper hemispherical domes are produced in Class 100 dust-free optical workshops. We complete special hyper contour blank forming, CNC curve grinding, ultra-precision polishing and custom vacuum coating, with professional optical simulation service before production.
Typical Application Scenarios
- Underwater ROV & AUV full-view panoramic monitoring camera systems
- Industrial VTOL fixed-wing UAV aerial all-around inspection payloads
- Day-night dual-spectrum airborne thermal imaging surveillance equipment
- Offshore platform blind-spot free perimeter observation devices
- Tactical panoramic optical monitoring turret systems without dead angle
Our optical engineers provide one-stop hyper dome customized service including curvature simulation, material matching and coating design. Every finished dome will pass full FOV distortion testing to ensure zero blind spot panoramic shooting performance.
Why Choose Our Hyper Hemispherical Domes
Hyper Contour Optical Simulation
Professional optical team provides free FOV distortion simulation before custom production
Special Curve Processing Line
Dedicated equipment for complex hyper hemisphere CNC contour grinding
Full Dimension Customization
Custom diameter, curve radian, edge flange and optical coating scheme
Distortion & FOV Full Inspection
100% panoramic field of view and image distortion testing before shipment
Global Industrial Optical Standard
Meet US & EU aerial and underwater surveillance equipment specifications
Frequently Asked Questions
Q1: What is the difference between hyper dome and normal hemispherical dome?
A: Hyper hemispherical design achieves much wider panoramic field of view, effectively eliminate monitoring blind spots, while standard half-sphere dome has limited shooting range.
Q2: Can you provide optical simulation for my turret structure?
A: Yes, we offer free professional optical simulation according to your required FOV and camera parameters to optimize hyper dome radian design.
Q3: Is plastic hyper dome acceptable for industrial surveillance?
A: No, plastic will scratch, deform and degrade quickly in high altitude/marine environment; we only supply sapphire & infrared crystal optical domes for industrial OEM.
Q4: Can hyper dome match dual-band visible & thermal imaging system?
A: Sure, we support BBAR dual-band anti-reflection coating for simultaneous day monitoring and LWIR thermal detection.
Q5: Do you provide prototype hyper dome samples for testing?
A: We support small batch prototype samples for client panoramic imaging performance verification before mass order.
Related Custom Precision Optical Domes
Get Custom Hyper Hemispherical Ultra Wide Angle Dome Solution
Submit your required FOV range, working spectrum and turret installation size. Our optical team provides optical simulation drawing and formal quotation within 24 hours.
