Sapphire Optical Window Manufacturer
- Share
Felix Glass manufactures precision sapphire optical windows for demanding industrial applications.Our sapphire solutions combine single crystal material,optical polishing,custom dimensions and coating capability from prototype development to mass production. Direct communication with Felix Glass engineering and sales team for custom sapphire window projects. James supports global OEM customers with custom sapphire optical windows,sapphire domes and precision optical components for industrial cameras,sensors and high temperature optical systems. Our engineering team assists customers from drawing review,material selection and prototype development through final production. Precision sapphire windows manufactured according to industrial application requirements. Custom round sapphire windows for optical instruments,cameras and sensor protection systems. OEM sapphire windows with custom dimensions for industrial equipment and optical applications. Large size sapphire windows designed for demanding observation and protection applications. Scratch resistant sapphire windows for outdoor cameras and industrial vision systems. Anti‑reflection coated sapphire windows optimized for improved optical transmission. Custom engineered sapphire components produced according to customer drawings. Engineered sapphire windows manufactured according to customer drawings with precision processing,custom dimensions and optical coating options. Superior mechanical and optical performance for harsh industrial,optical and high‑temperature environments. With Mohs hardness 9,sapphire provides outstanding surface durability for outdoor cameras,sensors and optical protection systems. Sapphire maintains excellent mechanical and optical performance in demanding high temperature environments. Optical grade sapphire provides excellent transmission from ultraviolet wavelengths into infrared applications. Engineers select optical materials according to hardness,temperature resistance,optical performance and application environment. Felix Glass engineers evaluate application conditions before production to recommend suitable sapphire window specifications. Temperature,pressure,chemical exposure and outdoor conditions determine sapphire window design requirements. Wavelength range,transmission requirement and coating specification influence optical performance. Size,thickness,mounting method and impact resistance determine final window structure. Tolerance,surface quality,quantity and production requirements are reviewed before manufacturing. Custom sapphire optical windows designed for industrial systems requiring durability,optical clarity and environmental resistance. Solution: High‑temp resistant sapphire optical window Application: Flame monitoring systems operating under continuous high‑temperature conditions. Benefit: UV‑IR transmission and long service lifetime. Solution: High‑strength sapphire observation window Application: Industrial furnace monitoring systems. Benefit: Thermal stability and scratch‑resistant surface. Solution: Scratch‑proof sapphire protective window Application: Outdoor cameras,machine vision and optical sensors. Benefit: Weather resistance and high optical clarity. Felix Glass supports global OEM customers with custom sapphire solutions for demanding optical applications. Customer Requirement: Optical window for industrial flame monitoring equipment operating under continuous high temperature conditions. Challenge: Standard glass could not provide sufficient thermal stability and service lifetime. Solution: Custom sapphire optical window with precision polishing and protective coating options. Result: Improved system reliability and long‑term optical performance. Customer Requirement: Protective optical window for outdoor monitoring equipment exposed to dust,impact and abrasion. Challenge: Conventional glass required frequent replacement due to surface damage. Solution: Sapphire protection window with high hardness and optical polishing. Result: Enhanced equipment durability and reduced maintenance requirements. Customer Requirement: Observation window for high temperature manufacturing equipment. Challenge: Required stable optical performance under elevated temperatures. Solution: Sapphire window optimized for thermal resistance and optical transmission. Result: Reliable optical observation during continuous operation. Felix Glass delivers full‑chain sapphire window manufacturing for aerospace, military EO/IR, vacuum and semiconductor systems. Precision cutting & shaping for custom sapphire blanks with strict dimensional tolerance. Material removal process to achieve flatness and parallelism for sapphire optics. High‑grade surface finish for IR / UV transmitting sapphire windows. AR anti‑reflective and hard coating for improved transmission & durability. Nanometer‑level dimension & surface quality verification before shipment. Our controlled production workflow supports prototype development,sample validation and long‑term OEM manufacturing. Engineering team evaluates dimensions,tolerance,application environment and optical requirements. Optical grade single crystal sapphire material is selected according to project requirements. Cutting,grinding and polishing create the required optical geometry and surface quality. AR coating and protective surface treatments are available for different applications. Felix Glass applies strict quality control throughout manufacturing to support industrial OEM optical applications. Diameter,thickness,shape and tolerance are inspected according to customer specifications. Optical surfaces are checked for scratches,digs,polishing quality and appearance requirements. Transmission and coating requirements can be evaluated according to wavelength and system requirements. Clean packaging methods minimize contamination and protect precision optical surfaces. Felix Glass provides supporting documents for international industrial OEM customers. Quality Management Material Compliance European Compliance Sapphire Spec Sheet AR‑Coating Test Data Send your application requirements,technical specifications or drawings.Felix Glass engineers will review your project and recommend a suitable sapphire optical window solution. Yes.Felix Glass manufactures custom sapphire optical windows according to customer drawings,dimensions,tolerances and application requirements. Sapphire windows are widely used in industrial cameras,sensors,furnace observation systems,flame detection equipment and optical protection applications. Felix Glass supports customized sapphire windows in different diameters,thicknesses and shapes according to customer specifications. Yes.AR coating and protective coating options are available according to wavelength requirements and application conditions. Yes.Felix Glass supports prototype evaluation,sample development and long‑term OEM production programs.Custom Sapphire Optical Window Manufacturer
OEM Sapphire Windows for Industrial Cameras,Sensors and High Temperature Systems
OEM Manufacturing | Custom ProcessingYour Sapphire Optical Engineering Contact
James Fu
International Sales Director
Custom Sapphire Window Product Solutions

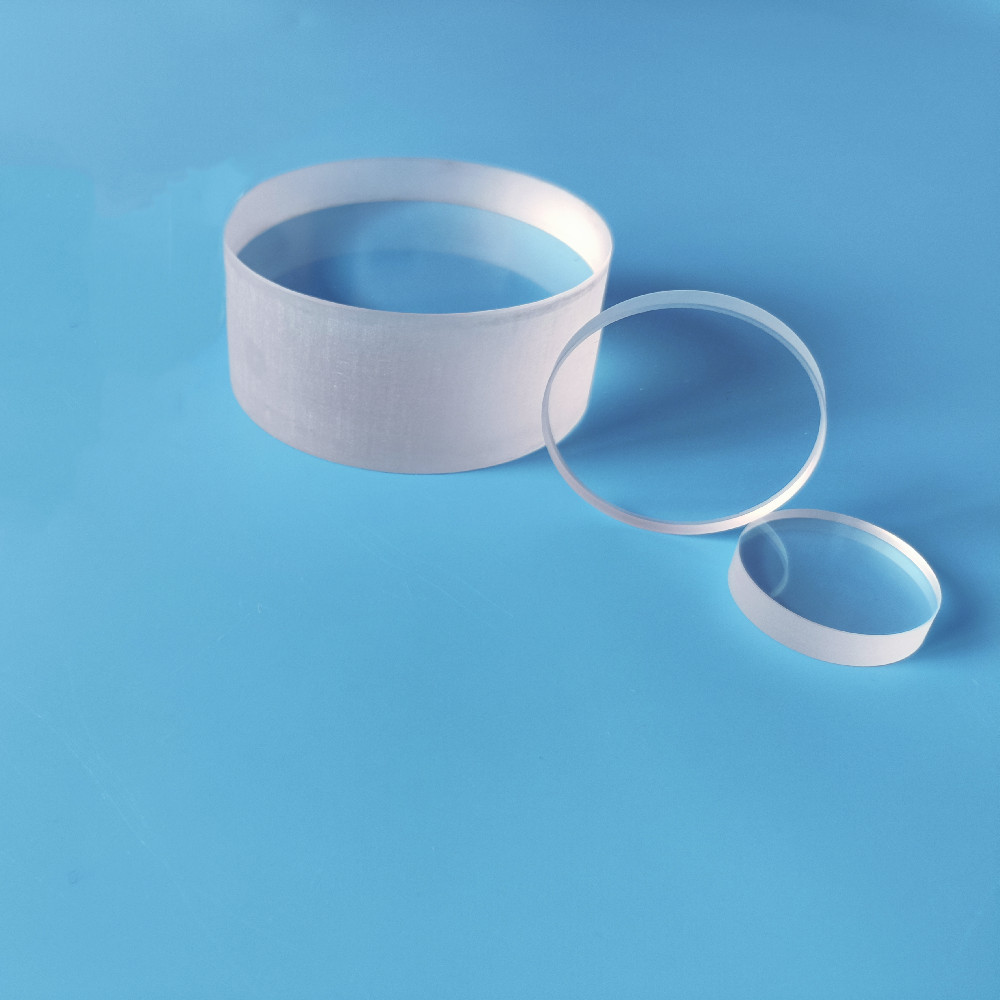

Round Sapphire Optical Window
Square Sapphire Window

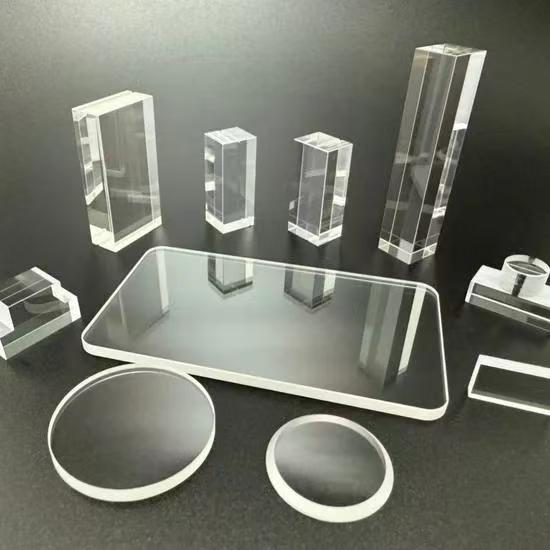

Large Sapphire Optical Window

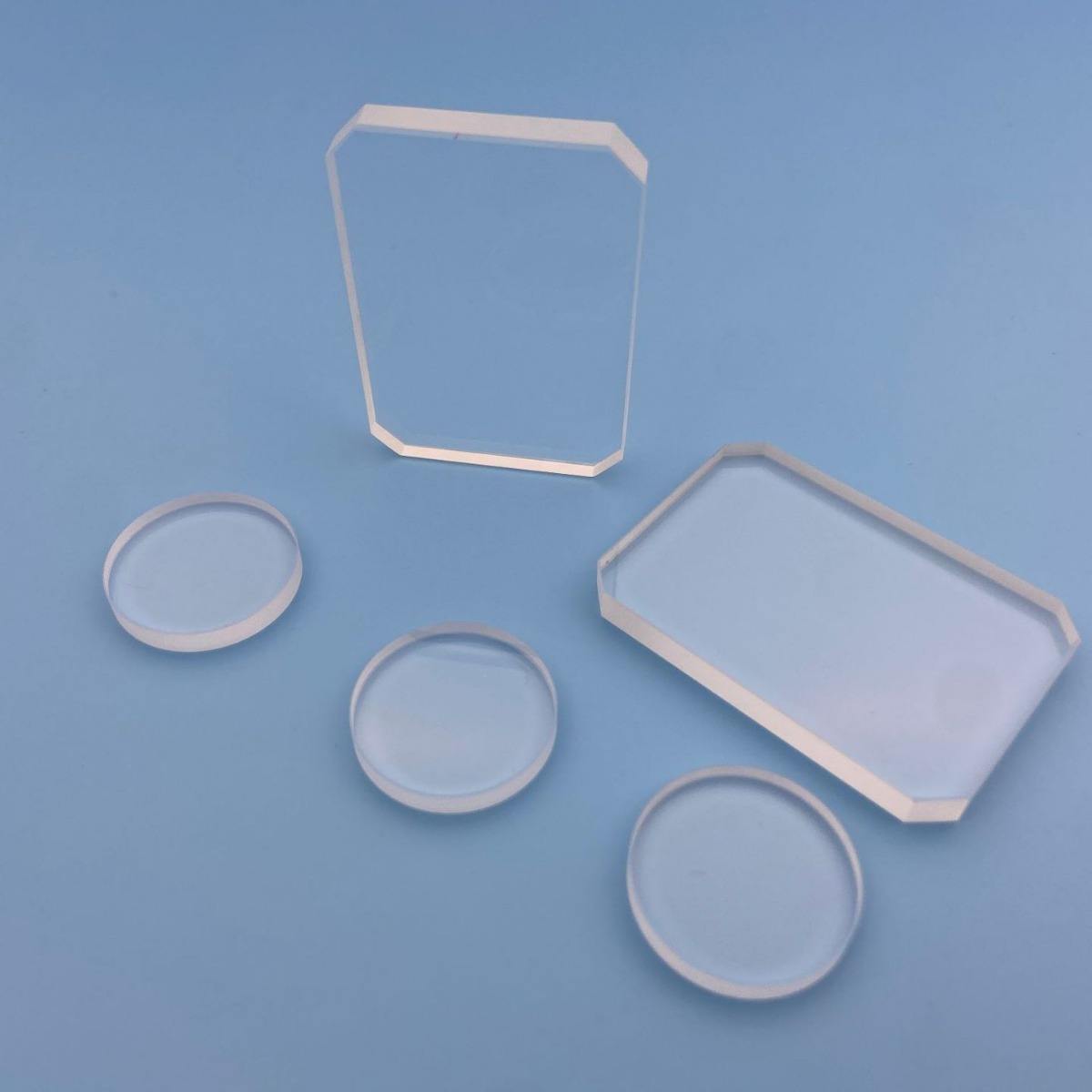

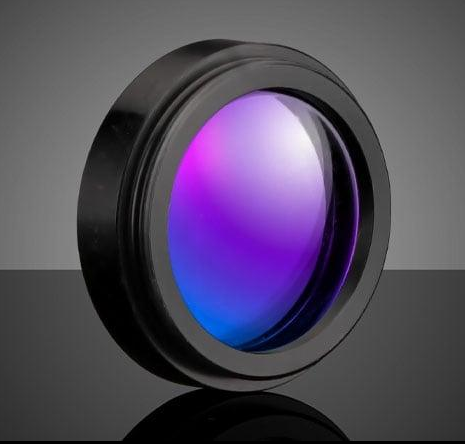

Sapphire Camera Protection Window
AR Coated Sapphire Window
Custom Sapphire Optical Component
Sapphire Optical Window Technical Datasheet
Engineering Parameter
Manufacturing Capability
Material
Single Crystal Sapphire (Al₂O₃)
Crystal Structure
Single Crystal Aluminum Oxide
Crystal Orientation
Custom Available
Transmission Range
UV to Approximately 5μm IR
Hardness
Mohs 9 Scratch Resistance
Diameter Range
5mm‑300mm Custom Size
Thickness Range
0.3mm‑50mm Custom Thickness
Surface Quality
10/5‑60/40 Scratch & Dig Available
Surface Flatness
λ/10 Precision Available
Parallelism
Customized According To Requirement
Edge Processing
Chamfering,Grinding and Polishing
Coating
AR Coating and Protective Coating Available
Production Capability
Prototype Samples to Mass Production
Why Engineers Choose Sapphire Optical Windows
Extreme Scratch Resistance
High Temperature Capability
Excellent Optical Transmission
Sapphire Window Material Comparison
Engineering Requirement
Sapphire
Fused Silica
BK7 Glass
Hardness
★★★★★ Excellent
★★★ Good
★★ Average
Scratch Resistance
Excellent
Good
Limited
High Temperature Performance
★★★★★ Excellent
★★★★ Very Good
★★★ Good
Mechanical Strength
High
Medium
Medium
UV Transmission
Excellent
Excellent
Good
Industrial Protection
Excellent
Good
Limited
Typical Applications
Industrial Cameras,Sensors,Furnace Windows
UV Optics,Laboratory Systems
General Optical Components
How Engineers Select Custom Sapphire Windows
Operating Environment
Optical Requirement
Mechanical Requirement
Manufacturing Requirement
Sapphire Window Application Solutions
Gas Turbine Flame Detection Window
Industrial Furnace Observation Window
Industrial Camera Protection Window
Sapphire Window Engineering Case Studies
High Temperature Flame Detection Sapphire Window
Outdoor Industrial Camera Protection Window
Industrial Furnace Observation System
Sapphire Window Manufacturing Capability

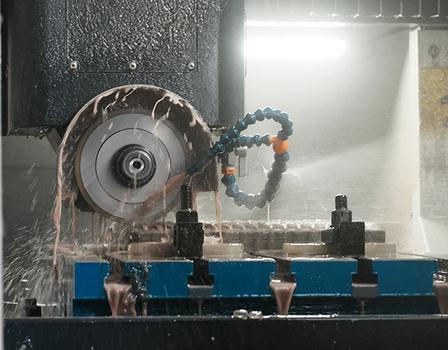

CNC Machining
Surface Grinding
Ultra‑Precision Polishing
Optical Coating
Clean‑room Inspection
Custom Sapphire Window Manufacturing Process
Drawing Review
Material Selection
Precision Processing
Surface Treatment
Sapphire Window Quality Assurance
Dimension Inspection
Surface Quality Inspection
Optical Performance Verification
Packaging Protection
Certification & Technical Documents
Request Custom Sapphire Window Engineering Evaluation
Frequently Asked Questions About Sapphire Windows
Can Felix Glass manufacture custom sapphire windows?
What applications use sapphire optical windows?
What sizes of sapphire windows can you manufacture?
Can you provide AR coated sapphire windows?
Do you support prototype and mass production?
