ADAS & DVR Camera Cover Glass | AR AG Coated 9H Hardness Automotive Lens Protective Glass
- Price
- US $2.88-5.99
- Model
- FG-FT-001
- MOQ
- 5 piece
Item specifics
- Substrate
- Automotive-grade low-iron tempered glass
- Coating Options
- AR single layer / AG single layer / AR+AG composite coating
- Visible Transmittance
- ≥92% (97% peak for AR coated)
- Auto Camera Dedicated Haze
- 6%–10% low-distortion range
- Surface Hardness
- 9H Mohs scratch resistance
- Common Thickness
- 0.7mm / 1.1mm / 2.0mm
- Operating Temperature
- -40℃ ~ 120℃
- Custom Processing
- Small circular/irregular cutting, full edge chamfering, anti-chipping edge polishing
- Documentation
- Automotive UV & thermal cycle aging test reports available on request
Review
Description
Product Overview

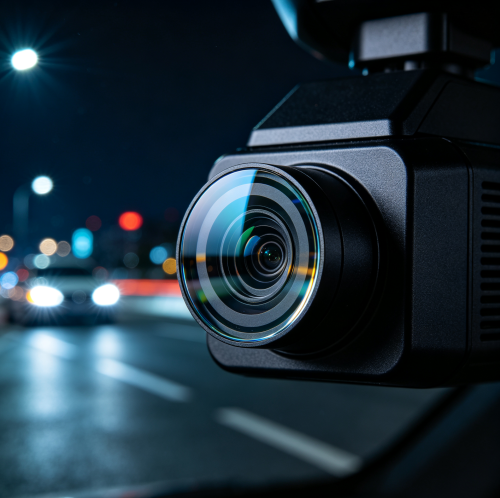

Felix Glass ADAS & DVR camera cover glass is dedicated protective lens glass for vehicle driving auxiliary and recording systems. Made of automotive low-iron tempered glass with professional AR and AG optical coatings, it ensures high light transmittance for on-board cameras while eliminating strong light glare. The glass features stable weather resistance to adapt to long-term outdoor vehicle operation, fully customizable in size, shape and edge processing for all types of ADAS sensors and DVR cameras.
AR & AG Coating Core Functions
AR Anti-Reflection
Multi-layer anti-reflection coating reduces surface light reflection, raises light transmittance up to 97%. It avoids overexposure at night and backlight, delivering clear, undistorted image capture for ADAS sensors and DVR recorders.
AG Anti-Glare
Low-haze matte etching diffuses intense sunlight, high beam glare and road light reflection, preventing lens blooming that affects camera identification accuracy under bright driving conditions.
Coating Combination Selection Guide
- AR Only: Forward ADAS main cameras requiring maximum light transmission
- AG Only: Exterior side-view cameras exposed to strong sunlight
- AR + AG Composite Coating: Universal front DVR, rearview ADAS streaming mirror cameras (most widely used)
Automotive Weather & Camera Optical Durability
Specially optimized for vehicle camera long-term outdoor use:
- Coatings remain intact under continuous UV solar radiation
- Stable optical performance in -40°C ~ 120°C extreme temperature cycles
- No peeling, fading or transmittance drop after thousands of hot/cold alternations
- Resist rainwater, road dust and regular car washing wiping
- Consistent image capture performance throughout vehicle service life
Technical Specifications
| Property | Standard Parameter |
|---|---|
| Substrate | Automotive-grade low-iron tempered glass |
| Coating Options | AR single layer / AG single layer / AR+AG composite coating |
| Visible Transmittance | ≥92% (97% peak for AR coated) |
| Auto Camera Dedicated Haze | 6%–10% low-distortion range |
| Surface Hardness | 9H Mohs scratch resistance |
| Common Thickness | 0.7mm / 1.1mm / 2.0mm |
| Operating Temperature | -40℃ ~ 120℃ |
| Custom Processing | Small circular/irregular cutting, full edge chamfering, anti-chipping edge polishing |
| Compliance | ISO 9001, RoHS, REACH |
| Documentation | Automotive UV & thermal cycle aging test reports available on request |
Key Features
- 9H High Hardness Anti-Scratch: Protect camera lens from road gravel, dust and wiping scratches
- Auto-Grade Tempered Safety: Shatters into tiny smooth fragments to avoid secondary damage during collision
- Camera-Optimized Low-Distortion AG Haze: Balance anti-glare effect without blurring camera captured images
- Long-Lasting Weatherproof Coatings: Stable against sunlight, cold and heat all year round

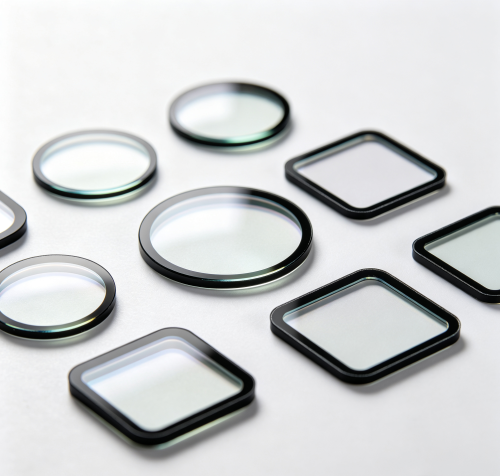

- Miniature Custom Machining: Support tiny round, oval and special outlines matching compact vehicle camera modules
Applications

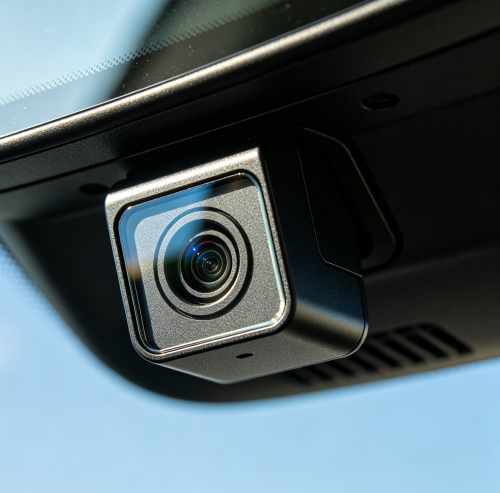

Front ADAS driving sensor camera covers, car DVR driving recorder lens protective glass, streaming rearview mirror built-in camera panels, side blind spot monitoring camera glass, parking surround view camera lens covers, commercial vehicle rear monitoring DVR protective glass.
OEM Custom Manufacturing Services
- Custom small-size round/irregular outlines matching different camera module dimensions
- Flexible AR, AG or AR+AG composite coating collocation for different camera installation positions
- Precision edge chamfering and anti-chip polishing for compact camera assembly
- Small batch prototype trial and mass bulk supply for auto electronics OEM factories
- Complete optical and automotive aging test documentation supplied upon demand
Why Choose Felix Glass
Professional manufacturer of automotive camera protective cover glass with dedicated optical coating production lines. Every piece undergoes strict transmittance, haze and coating adhesion inspection before shipment. Our engineers provide targeted coating recommendations for ADAS and DVR camera modules, with fast sampling and global stable delivery for auto electronic manufacturers.
FAQ
1.Which coating combination suits mainstream front DVR and ADAS cameras?
AR + AG composite coating is the mainstream option, balancing high camera light transmittance and anti-high-beam glare performance.
2.Can the 9H tempered glass prevent scratches from road gravel?
Yes, 9H Mohs hardness effectively resists minor impact and scratch from flying gravel and daily cleaning wiping.
3.Will coatings degrade after long-term outdoor sunlight exposure?
AR and AG coatings pass long-duration UV aging testing, maintaining steady camera optical performance over years of vehicle use.
4.Can you produce small custom shapes for miniature ADAS sensor cameras?
Small circular, oval and special irregular cutting, precision edge polishing are all fully supported based on OEM camera drawings.
5.Can automotive aging test reports be provided for product certification?
Full UV and high-low temperature cycle aging test documents are available upon request for auto electronics project validation.
.Related Products
Automotive Display Cover Glass for All Types of Vehicle Display Equipment
Automotive Touch Cover Glass & Streaming Rearview Mirror Glass
Medical Touch Panel Glass
AR / AF / AG Tempered Display Cover Glass
Get a Free Quote
Submit your camera glass size, thickness, coating scheme and edge processing requirements. Our automotive optical engineering team will send customized quotations, qualified samples and professional technical guidance within 24 hours for your ADAS and DVR camera projects.
