Model: FG- SOC-BLK-001

Item specifics

Material: Synthetic Single-Crystal Sapphire (BK7/K9 optical glass available as secondary custom option)

Spectral Range: 150nm ~ 5.5μm (UV-Vis-Mid IR)

Mohs Hardness: 9.0

Operating Temperature: -200℃ ~ 1600℃

Surface Quality: 20/10, 10/5 Aerospace Grade

Dimensional Tolerance: ±0.01mm

Available Coating: UV/Visible/IR AR coating

Custom Options: Shape, size, mounting holes, edge treatment

Review

Description

Aerospace single crystal sapphire protective optical lids & covers

Aerospace Grade Sapphire Optical Covers | Custom Sapphire Window Lids

Felix Glass Co., Limited manufactures aerospace grade sapphire optical covers and custom sapphire window lids fabricated from premium single-crystal sapphire. These high-performance protective optics shield sensitive optical sensors, cameras and precision instruments under extreme aerospace operating environments while preserving high light transmittance and consistent dimensional stability. Featuring Mohs 9 extreme hardness, superior thermal shock resistance and broad-spectrum transmission, our sapphire covers guarantee stable operation of critical optical systems under high temperature, pressure and cosmic radiation conditions.

Get Custom Quote Contact Aerospace Engineering

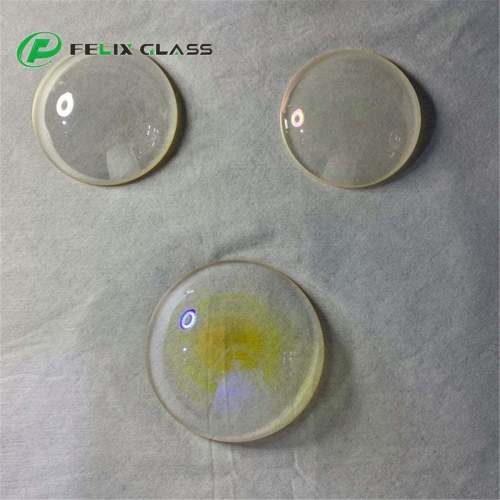

Felix Glass aerospace grade sapphire optical covers, custom single crystal sapphire window lids for satellite, UAV and defense EO/IR optical sensor protection

Direct answer

Aerospace Optical System Risks Solved By Sapphire Optical Covers

Standard optical glass lacks sufficient hardness, thermal stability and radiation tolerance required for space, high-altitude aircraft and defense optical equipment. Aerospace grade sapphire window lids deliver outstanding scratch and impact resistance, wide UV to mid-infrared transmission and low thermal expansion. The rigid sapphire barrier protects internal optical assemblies against particle erosion, rapid temperature fluctuation and long-duration space radiation without degrading imaging or sensing performance.

Mohs 9 Single Crystal Sapphire

Ultra-hard aerospace-grade substrate provides excellent scratch resistance, impact resistance and long-term durability under harsh airborne and orbital conditions.

Broad Spectrum Optical Transmission

Stable transmittance covering 150nm to 5.5μm, supporting multi-band UV, visible and mid-infrared aerospace optical detection systems.

Drawing-Based Full Customization

Shape, dimension, thickness, mounting holes, edge finishing and aerospace AR coating specifications can be finalized per customer engineering drawings before production.

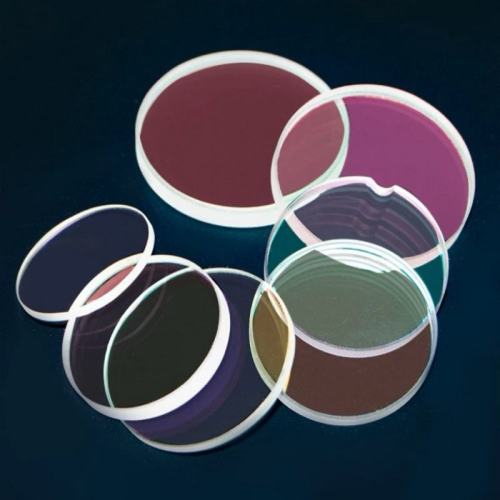

Custom aerospace grade flat & curved sapphire optical window lids with precision machining for satellite and airborne optical sensors

Attention to specification

Material & Aerospace-Grade Technical Parameters For Engineering Review

The core raw material is high-purity aerospace single-crystal sapphire. For projects with strict cost control without extreme abrasion requirements, fused silica optical windows can be selected as an alternative solution. We support wavelength-specific AR anti-reflection coatings and customized mechanical features including mounting holes, chamfered edges and sealing profiles.

Base Material: Aerospace grade high-purity single crystal sapphire.
Available Configurations: Flat sapphire covers, curved/domed protective lids, custom outlines with mounting features.
Functional Coatings: UV / Visible / Mid-IR band targeted AR anti-reflection coatings for aerospace optical systems.
Service Mode: OEM & ODM aerospace customization, prototype sampling and mass serial production available.

Interest stage

Key Product Specifications For Aerospace Sapphire Optical Covers

Product type	Aerospace Grade Sapphire Optical Covers \| Custom Sapphire Window Lids
Model reference	FG-SAPPHIRE-COVER-AERO01
Material	Aerospace Grade High-Purity Single-Crystal Sapphire
Spectral Transmission Range	150nm ~ 5.5μm (UV – Visible – Mid IR)
Mohs Hardness	9.0
Operating Temperature	-200℃ ~ 1600℃
Surface Quality	Aerospace Grade 20/10, 10/5 MIL STD
Dimensional Tolerance	±0.01mm
Coating Options	Wavelength-specific AR anti-reflection coating
Customizable Items	Shape, size, thickness, mounting holes, edge treatment
Quality Standard	Aerospace-grade optical performance & environmental stability inspection

Application match

Main Application Fields Of Aerospace Sapphire Optical Window Lids

Orbital altitude, flight speed, spectrum band and environmental loads determine final outline geometry, thickness and coating scheme. Our aerospace sapphire optical covers deliver consistent protection for space-borne payloads, airborne platforms and ground defense optical detection equipment.

Satellite & Space-Borne Optical Sensors

Protective sapphire window lids for on-orbit observation payloads resisting long-term cosmic radiation and temperature cycling.

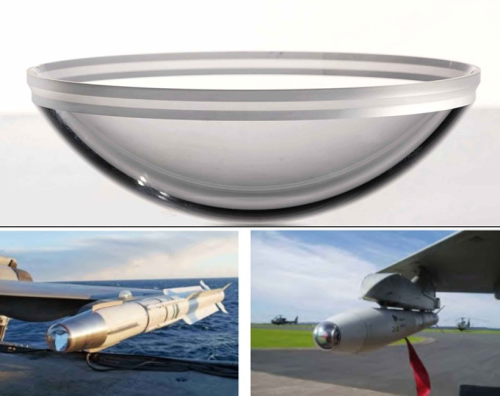

Sapphire optical protective cover for aircraft and UAV airborne camera & EO/IR systems

Aircraft & UAV EO/IR Imaging Systems

Hard sapphire covers shield airborne cameras and targeting optics under high-altitude flight conditions and particle erosion.

Aerospace sapphire window lid for defense military optical equipment and harsh-environment instruments

Defense & Harsh Environment Optical Instruments

Reliable optical protection for military optical equipment and industrial optical instruments operating under extreme temperature and abrasion conditions.

Desire stage

Felix Glass RFQ & Production Workflow For Aerospace Sapphire Optical Covers

Aerospace Drawing Review

Check outline dimension, thickness, mounting hole layout, optical zone, tolerance and environmental working requirements.

Sapphire Blank Cutting

Select qualified single-crystal sapphire ingot and calculate machining allowance according to customer aerospace drawings.

CNC Precision Machining & Grinding

CNC contour cutting, hole machining and surface grinding to form custom flat or curved sapphire cover geometry.

Optical Polishing & Vacuum Coating

Ultra-precision surface polishing followed by vacuum deposition of wavelength-matched AR anti-reflection coatings.

Aerospace-Grade Inspection & Packing

Full dimension, surface and optical testing; shockproof anti-scratch packaging for aerospace supply chain transit.

Original capability retained

From Aerospace Prototype Sampling To Mass Sapphire Cover Orders

We support small-batch prototype sampling and large-volume serial manufacturing of custom aerospace sapphire optical covers and window lids. To receive accurate formal quotation, please submit engineering drawing, order quantity, outline specification, coating requirements, dimensional tolerance, operating environment and aerospace acceptance testing standards.

Prototype lead time and bulk delivery cycle depend on part shape complexity, customized hole features and aerospace coating testing requirements. Simple flat sapphire cover models complete feasibility evaluation rapidly; complex multi-feature aerospace components will arrange dedicated engineering communication to optimize design and control overall project cost.

Aerospace sapphire optical cover precision inspection in Felix Glass optical laboratory

Decision support

Select Sapphire vs Fused Silica Window For Your Aerospace Project

Choose Sapphire Optical Covers When

Optical surfaces face continuous abrasion, particle impact, repeated cleaning; priority is extreme surface hardness and long service lifetime in harsh aerospace environments.

Choose Fused Silica Windows When

Application focuses on wide UV transmission, ultra-low thermal expansion and high-temperature resistance without demanding scratch-resistant performance.

Confirm AR Coating Requirements When

The optical system operates on fixed wavelength bands and requires minimized surface reflection to improve imaging and detection signal-to-noise ratio.

Related aerospace sapphire optical components

Internal Links For Sapphire Optical Product Cluster Comparison

Sapphire Optical Dome Category Underwater ROV Sapphire Dome AR Sapphire Hemispherical Dome Single-Crystal Spherical Sapphire Dome Custom Fused Silica Aerospace Dome Sapphire Optical Glass Material Hub Marine Camera Sapphire Cover

Buyer FAQ

Frequently Asked Questions About Aerospace Grade Sapphire Optical Covers

What are aerospace grade sapphire optical covers used for?

Aerospace sapphire optical covers protect optical sensors, cameras and precision instruments on satellites, aircraft and defense systems, delivering scratch resistance, thermal stability and high transmittance under extreme harsh environments.

Can you produce custom shapes and sizes for aerospace projects?

Yes. We fully customize outline shape, dimension, thickness, mounting holes and edge finishing strictly according to your technical drawings and aerospace specifications.

Can AR anti-reflection coating be supplied for sapphire covers?

We provide wavelength-targeted AR coatings for UV, visible and infrared wavebands to maximize light transmittance matching your specific optical system design.

What inspection standards apply to aerospace sapphire covers?

All sapphire optical covers are manufactured and inspected following aerospace-grade requirements covering optical performance, dimensional accuracy and environmental stability testing.

Do you support aerospace prototype and small batch orders?

Yes. We offer prototype sampling, small-batch trial production and mass manufacturing to satisfy different verification and formal production phases of aerospace projects.

Action stage

Submit Your Sapphire Cover Drawing For Aerospace Engineering Evaluation & Quotation

Share your aerospace project background, sapphire optical cover engineering drawing, coating specifications and target order quantity. Felix Glass aerospace optical engineering team will evaluate manufacturability, optical performance and inspection requirements and issue official quotation for custom aerospace grade sapphire window lids.
