2-32 Inch Custom Projected Capacitive Touch Screen Panel 10-40 Multi Touch Points Support AG AR AF Coating
- Model
- CTS-232-01
Item specifics
- Substrate
- Ultra-low iron tempered glass
- Surface Treatment | Value
- AG / AR / AF / Normal Optional
- Light Transmittance
- ≥92% (97% for AR coated)
- AG Haze Range
- 5%–15% adjustable
- AF Water Contact Angle
- ≥110°
- Thickness Options
- 0.7mm, 1.1mm, 2.0mm, 3.0mm, 5.0mm
- Working Temp
- -40℃ ~ 180℃
- Custom Deep Processing
- Irregular mirror cutting, full edge chamfering, black silk screen border, camera & sensor hole drill
- Compliance Standard
- ISO 9001, RoHS, automotive high-low temperature aging test certified
- Item
- Touch Points | Value：10~40 Points
- Glass Hardness | Value
- 6H Tempered Explosion-proof
Review
Description
Custom Projected Capacitive Touch Screen Panel 2~32 Inch

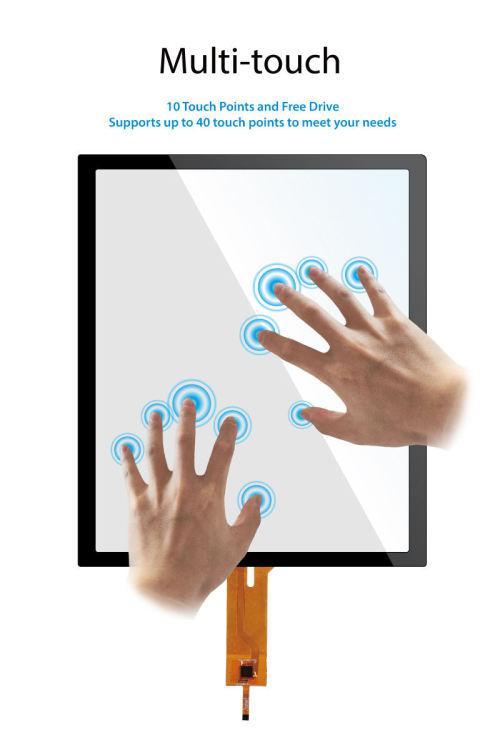

1. Multi-Touch Performance
Our capacitive touch screen supports default 10 touch points, expandable up to 40 touch points with free drive. No extra driver installation, stable & sensitive touch recognition even with thin gloves.

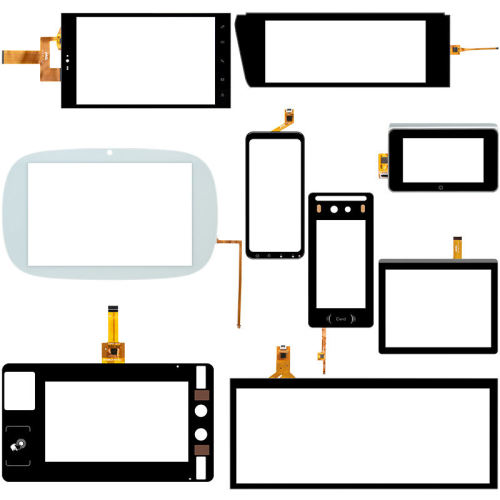

2. Full Custom Size & Shape
Standard size covers 2 inch to 32 inch, rectangle, square & irregular cutout shapes available. We customize border width, viewing area and outline to perfectly match your LCD module.

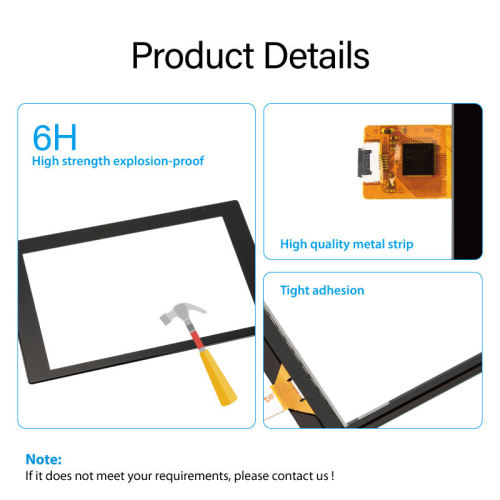

3. Durable Structure & Premium Material
- 6H high hardness tempered cover glass, scratch resistant and explosion-proof
- High-quality metal FPC strip for stable signal transmission
- Tight lamination to avoid bubble & delamination during long-term operation

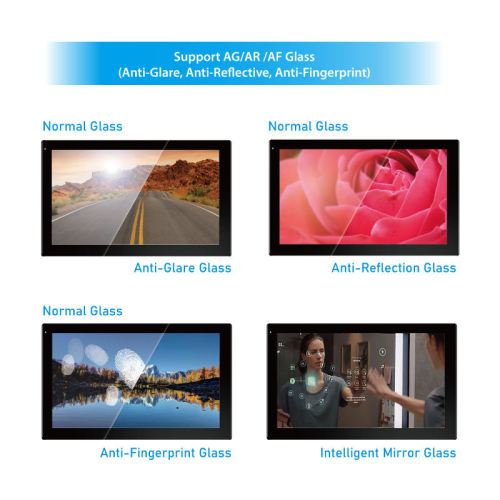

4. Optional AG / AR / AF Surface Coatings
We supply 4 surface glass solutions for different application scenarios:
- AG Anti-Glare: Eliminate strong light reflection, reduce eye strain
- AR Anti-Reflection: Improve light transmittance, clearer display outdoors
- AF Anti-Fingerprint: Oil repellent, easy to wipe fingerprints
- Intelligent Mirror Glass: For smart mirror interactive devices
Technical Specifications
| Item | Parameter |
|---|---|
| Touch Type | Projected Capacitive Touch Screen |
| Size Range | 2" ~ 32" (custom shape acceptable) |
| Touch Points | 10 standard, max 40 optional |
| Cover Glass | 6H tempered explosion-proof glass |
| Surface Treatment | Normal / AG / AR / AF |
| FPC Interface | Industrial flexible metal strip cable |
| Operating Temp | -20℃ ~ +70℃ |
Application Scenarios
Medical display equipment, industrial HMI control panels, self-service kiosks, smart retail terminals, home automation touch panels.
Custom Service
One-stop OEM & ODM customization: size, outline, silk screen logo, FPC length, surface coating. Send your drawing or requirement, our engineer team offers solution within 24 hours.
Certifications
ISO9001, ISO14001, CE, RoHS, FDA, SGS certified, comply with EU & US industrial standards.
Note
If standard specs cannot match your demand, contact us for personalized touch screen solution.
