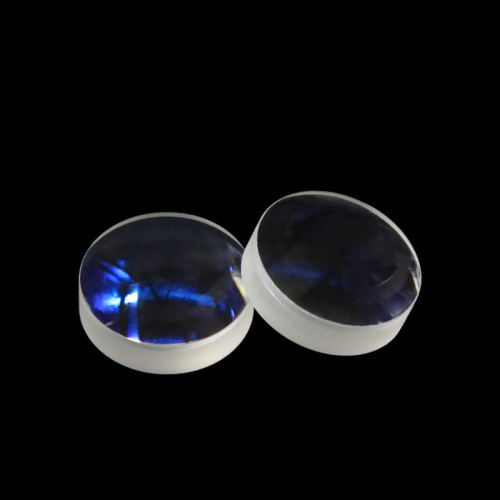

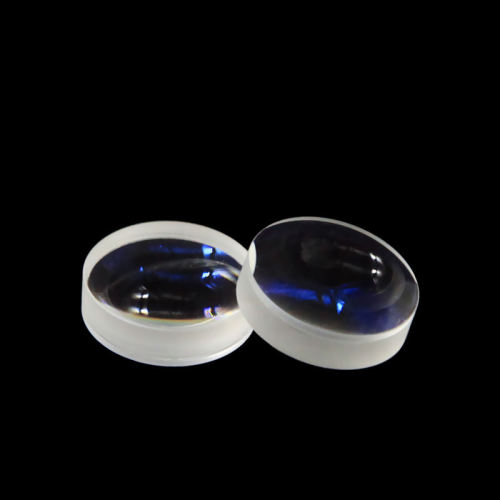

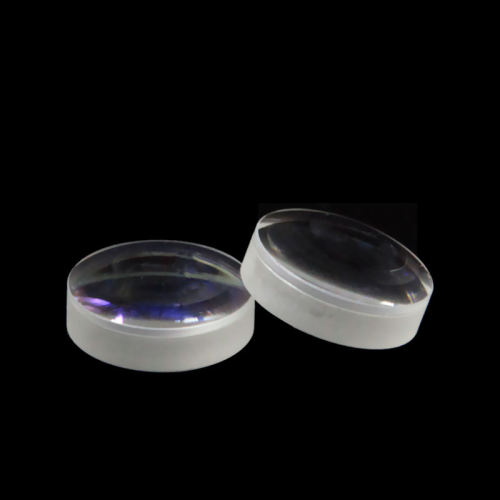

22mm Achromatic Cemented Doublet Spherical Lens
- Model
- FG-ACH-22MM-DOUBLET
Item specifics
- Material:
- Standard BK7+flint glass pair / Premium H-LAF53+H-ZF7L glass pair, custom glass combinations availab
- Coating:
- AR / IR / UV / AF
- Shape:
- 22mm fixed diameter spherical round lens
- Diameter Range
- Standard 22mm Custom Size
- Focal Length:
- Customizable
- Feature:
- High Transmittance, Low Distortion, Scratch Resistant, Custom Coating
- Available Glass Matched Pairs
- BK7+Flint Glass, H-LAF53+H-ZF7L, Custom Combinations On Request
- Lens Type
- Plano Convex Single Spherical Lens
Review
Description
Our 22mm achromatic cemented doublet lens consists of two bonded optical glass elements with two glass combinations for custom optical design:
1. Standard BK7/K9 crown + flint glass, cost-effective for general optical systems
2. Premium H-LAF53 & H-ZF7L low-dispersion set for ultra-high resolution imaging
The cemented doublet structure eliminates chromatic aberration and color fringing, delivering far sharper images than single spherical lenses.
Core Advantages
- Custom focal length, multi-layer AR coating and edge blackening available
- Ultra-precision polished surfaces, low stray light and high light transmittance
- Firm optical cement bonding for stable long-term industrial operation
- Custom glass pairs acceptable based on customer technical drawings
Applications
Telescope objectives, machine vision cameras, spectrometers, laser collimation modules, laboratory optical instruments
OEM Custom Service
Full in-house manufacturing: cutting, grinding, polishing, cementing and coating with complete optical inspection. We provide prototype samples, small trial batches and mass production with consistent optical precision.
Send your optical specifications or drawings to get tailored achromatic doublet solutions and factory direct pricing.
Optical Prisms
FAQ
1. What is an achromatic cemented doublet lens used for?
It is a two-piece bonded optical lens mainly designed to correct chromatic aberration. It produces crisp images without obvious color fringes, widely applied in machine vision, spectroscopy, telescopes and precision imaging equipment.
2. What’s the difference between standard and premium glass sets?
- Standard BK7/K9 + flint glass: budget-friendly, suitable for ordinary visible-light instruments.
- Premium H-LAF53 + H-ZF7L: low dispersion with minimal color distortion, ideal for high-end optical devices requiring superior imaging accuracy.
3. Can achromatic doublets correct spherical aberration?
Its primary function is chromatic aberration correction. It performs better than single lenses overall, but aspherical lenses are required to fully remove spherical aberration.
4. Can focal length and coatings be customized?
Yes. We customize focal length, center/edge thickness, edge blackening and full-spectrum multi-layer AR coatings according to your demands.
5. Do you offer sample orders?
Samples, small batches and mass orders are all supported. Every lens undergoes full dimensional and optical performance inspection before delivery.
6. What quality inspections do you carry out for cemented lenses?
Full-process tests include surface finish check, curvature measurement, centration error detection, cement uniformity test and transmittance verification to guarantee stable and consistent optical performance.
