Mohs 9 Surface Hardness
Resists scratches from dust, debris, and routine cleaning in factory floor and production line environments. Maintains optical clarity over thousands of cleaning cycles without image degradation.

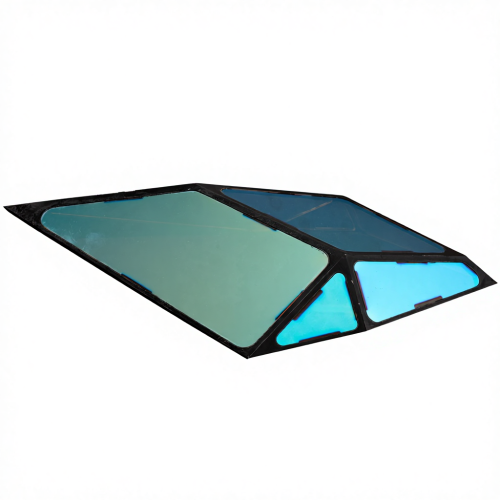

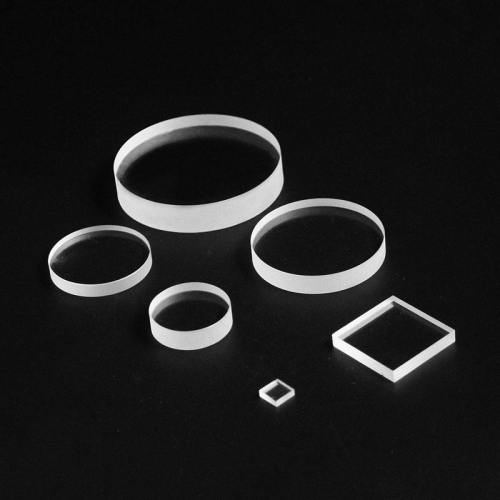

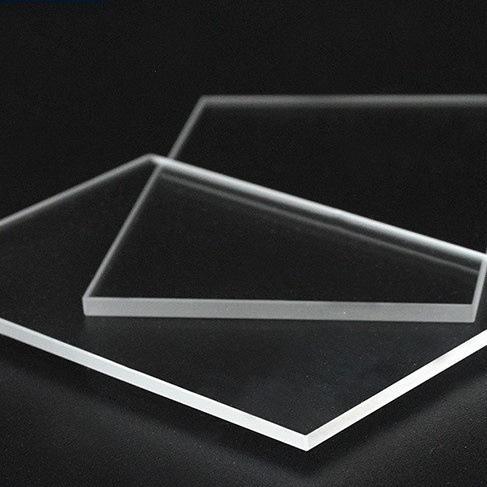

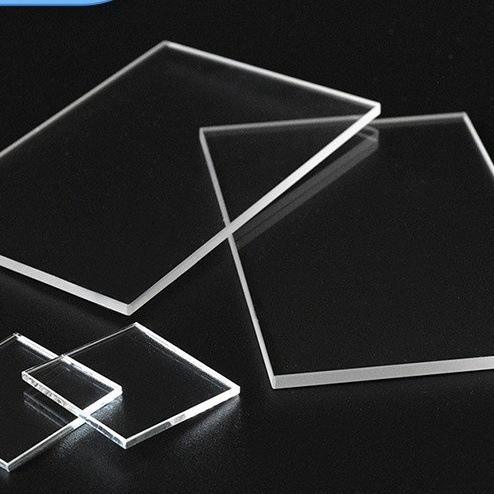

Sapphire Optical Window Blanks for Inspection Equipment
- Model
- FG-SAP-VP-001
Item specifics
- Material
- Single Crystal Sapphire (Al2O3)
- Crystal Orientation
- C-plane, A-plane, R-plane, M-plane
- Dimension
- Custom 2 mm to 300 mm; round, square, shaped
- Angle Tolerance
- ±0.05° standard; ±0.01° on request
- Surface Quality
- 40-20 to 10-5 scratch-dig (MIL-PRF-13830B)
- Surface Flatness
- λ/4 to λ/10 at 633 nm
- Clear Aperture
- ≥90% of physical diameter
- Transmission
- ≥85% visible; UV/IR coating-enhanced
- Coating
- AR, BBAR, AF, hydrophobic; single/dual-band
- Sterilization Compatibility
- Autoclave 134°C, EtO, Gamma 25 kGy, UV-C
- Operating Temperature
- -70°C to 500°C continuous
- Edge Processing
- Seamed, ground, polished; chamfer/bevel options
- MOQ
- 5 pcs prototype; 50+ pcs batch
- Lead Time
- 2–4 weeks prototype; 4–8 weeks batch
Review
Description
Sapphire Optical Windows for Inspection Equipment
Felix Glass manufactures single crystal sapphire optical window blanks and precision-polished components for industrial inspection cameras, machine vision systems, and high-resolution imaging equipment. Each sapphire window is fabricated from high-purity aluminum oxide (Al2O3) crystal, offering a combination of optical clarity, Mohs 9 surface hardness, and resistance to harsh operating environments that standard optical glass cannot provide.
Inspection system engineering teams specifying optical windows for camera housings and imaging modules typically evaluate three factors: optical transmission consistency across the imaging wavelength range, surface durability under continuous operation and cleaning, and dimensional stability for precise optical alignment. Sapphire optical windows address all three requirements in a single material solution.
Material selection
Why Sapphire for Industrial Inspection and Imaging Applications
Single crystal sapphire provides a distinct set of material properties that align with the requirements of inspection camera optical assemblies. The following characteristics make it a practical choice when system designers evaluate window materials for camera protection, optical path reliability, and long-term service in production environments.
Broadband Optical Transmission
Transmits from UV (200 nm) through visible to mid-IR (5 m), covering the full range used by industrial cameras, multispectral imagers, and machine vision sensors.
Thermal Stability
Low thermal expansion coefficient minimizes dimensional change during temperature cycling in production environments, preserving focus and optical alignment under varying operating conditions.
Chemical and Environmental Resistance
Resistant to industrial cleaning agents, coolants, oils, and airborne contaminants. No surface etching or hazing after prolonged exposure to production floor environments.
Mechanical Durability
High Young's modulus (345-386 GPa) and fracture toughness provide reliable window integrity under mechanical mounting stress and vibration in industrial imaging systems.
Long Service Life
Unlike polymer or coated glass windows that degrade under continuous use, sapphire maintains consistent optical performance over years of operation, reducing maintenance downtime and replacement costs.
Use cases
Inspection Equipment Applications
Sapphire optical windows are specified across a range of industrial inspection and imaging system classes. The specific window design varies by camera type, wavelength range, environmental exposure, and mounting configuration.
Machine Vision Cameras
Protective sapphire windows for high-resolution machine vision cameras used in automated quality control, defect detection, and dimensional measurement on production lines.
Inspection Microscope Systems
Precision-polished sapphire covers for industrial inspection microscopes, surface analyzers, and automated optical inspection stations in manufacturing environments.
Borescope and Endoscope Optics
Scratch-resistant sapphire tip windows for industrial borescopes, remote visual inspection probes, and endoscopic inspection systems used in aerospace and manufacturing.
Line Scan Camera Housings
Durable sapphire slit windows for line scan cameras used in continuous web inspection, print quality control, and high-speed sorting systems.
Optical performance
Optical Transmission Performance for Inspection Wavelengths
Sapphire provides consistent optical transmission across the wavelength range most commonly used in industrial inspection instruments. The material's intrinsic transmission characteristics support both broadband visible imaging and narrowband multispectral inspection.
UV Range (200-380 nm)
Transmission exceeds 80% above 250 nm, suitable for UV fluorescence inspection, surface contamination detection, and UV-sensitive machine vision applications.
Visible Range (380-780 nm)
Transmission exceeds 85% across the visible spectrum, supporting high-resolution color imaging, defect detection, and standard machine vision camera systems.
Near-IR Range (780 nm-3 m)
Transmission exceeds 85% in NIR, suitable for thermal imaging, NIR inspection, moisture detection, and material sorting applications in production environments.
Mid-IR Range (3-5 m)
Useful transmission for thermal camera windows and mid-IR inspection systems. Crystal orientation selection influences mid-IR cut-off behavior for specific detection requirements.
Material properties
Key Material Properties for Inspection Camera Windows
When engineering teams evaluate sapphire for inspection camera optical assemblies, the following material properties are relevant to window design, camera integration, and production environment service life.
Mechanical and Thermal Properties
- Density: 3.98 g/cm at 25 C
- Young Modulus: 345-386 GPa (orientation dependent)
- Mohs Hardness: 9 (second only to diamond)
- CTE: 5.3 x 10 K (parallel to c-axis, 25 C)
- Thermal Conductivity: ~35 W/(m K) at 300 K
- Melting Point: 2050 C
Optical Properties
- Refractive Index: ~1.77 at 532 nm (ordinary ray)
- Transmission Range: 200 nm-5 m
- dn/dT: ~13 x 10 K at 633 nm
- Birefringence: ~0.008 (visible, c-axis vs a-axis)
- Scatter Loss: Low bulk scatter for high-purity crystal
- Autofluorescence: Low background for sensitive imaging
Specifications
Technical Specifications
The table below lists the primary specification parameters reviewed during the custom sapphire optical window quotation and manufacturing process. Actual achievable values depend on the specific part geometry, quantity, and application requirements.
| Specification | Standard Range | Notes |
|---|---|---|
| Material | Single Crystal Sapphire (Al2O3) | Kyropoulos or EFG growth method available |
| Crystal Orientation | C-plane, A-plane, R-plane, M-plane | Selected per wavelength and birefringence requirements |
| Dimension | 2 mm to 300 mm (round); custom shapes available | Drawing-based outline and slotting supported |
| Angle Tolerance | 0.05 standard; 0.01 on request | Verified by X-ray orientation measurement |
| Surface Quality | 40-20 to 10-5 scratch-dig (MIL-PRF-13830B) | ISO 10110 also supported on request |
| Surface Flatness | /4 to /10 at 633 nm | Measured by interferometer; tighter on request |
| Clear Aperture | 90% of physical diameter | Defined per drawing; larger on request |
| Transmission | 85% visible; UV/IR coating-enhanced | Uncoated; coating-dependent values provided case by case |
| Coating | AR, BBAR, AF, hydrophobic | Single-band and dual-band options available |
| Durability | Scratch and chemical resistant per Mohs 9 | Industrial cleaning agent and contaminant resistant |
| Operating Temperature | -70 C to 500 C continuous | Short-term excursions beyond range reviewed case by case |
| Edge Processing | Seamed, ground, polished edge | Chamfer and bevel profiles available |
| MOQ | 5 pieces (prototype); 50+ pieces (batch) | Lower quantities reviewed on request |
| Lead Time | 2-4 weeks (prototype); 4-8 weeks (batch) | Expedited service reviewed per project |
Crystal engineering
Crystal Orientation Options for Inspection Optics
Crystal orientation influences birefringence, transmission cut-off, mechanical properties, and surface finishing behavior. Selection should be based on the specific optical path and imaging method of the inspection instrument.
C-plane (0001)
Most common orientation for window applications. Zero birefringence along the optical axis. Suitable for imaging, machine vision, and general inspection camera windows where polarization effects should be minimized.
A-plane (1120)
Selected when specific mechanical properties or mid-IR transmission cut-off behavior differs from C-plane. Reviewed case by case for polarized imaging systems and multispectral inspection windows where controlled birefringence is acceptable.
Precision finishing
Surface Quality and Precision Polishing Standards
Surface quality directly affects optical throughput, stray light, and image contrast in inspection systems. Felix Glass maintains polishing capabilities across a range of scratch-dig specifications to match the resolution requirements of different inspection methods.
10-5 Scratch-Dig
Highest optical grade for high-resolution inspection microscopes, precision imaging systems, and critical measurement cameras where surface scatter must be minimized for accurate defect detection.
20-10 Scratch-Dig
Precision optical grade for machine vision cameras, automated inspection stations, and general imaging system optical interfaces. Balances performance with manufacturing efficiency for production volumes.
40-20 Scratch-Dig
Standard optical grade for protective camera covers, environmental windows, and applications where surface quality requirements are moderate. Cost-effective for high-volume production camera systems.
Optical coatings
Optical Coating Options for Inspection Windows
Thin-film coatings can be applied to sapphire optical windows to enhance transmission, reduce reflection, improve surface functionality, or meet specific wavelength band requirements of inspection instruments.
Anti-Reflection (AR) Coating
Single-band or broadband AR coatings reduce surface reflection loss from approximately 7.5% per surface (uncoated) to below 0.5% in the target wavelength range. Improves image contrast and light throughput.
Hydrophobic and Oleophobic Coating
Applied to sapphire windows exposed to oils, coolants, and process fluids. Reduces residue adhesion, simplifies cleaning between inspection cycles, and maintains optical clarity in production line environments.
Dual-Band AR Coating
Covers two separated wavelength bands such as UV and visible for fluorescence inspection, or visible and NIR for combined color imaging and thermal inspection systems.
Environmental durability
Durability and Environmental Resistance for Production Environments
Sapphire optical windows maintain their optical and mechanical properties after prolonged exposure to demanding industrial environments. This is a practical consideration for inspection instruments that operate continuously on production floors with exposure to contaminants, cleaning agents, and temperature fluctuations.
Temperature Cycling
Withstands temperature fluctuations from -70 C to 500 C without optical distortion or mechanical failure. Suitable for inspection stations operating near heat sources, ovens, or outdoor installations.
Chemical Exposure
Resistant to industrial cleaning solvents, degreasers, coolants, and process chemicals. Sapphire's chemical inertness prevents surface etching and optical degradation common with coated glass windows.
Impact and Abrasion
Mohs 9 hardness provides exceptional resistance to particulate impact, tool contact, and abrasive wear. Maintains optical clarity after years of exposure to factory floor environments where glass windows would require frequent replacement.
Dust and Contaminant Resistance
Hard, non-porous surface resists particle embedding and contaminant adhesion. Simplified cleaning with standard industrial wipes without micro-scratching or haze development over time.
Production capability
OEM Custom Manufacturing for Inspection Sapphire Optics
Felix Glass supports inspection equipment OEMs with drawing-based custom sapphire optical window manufacturing. The production workflow is structured to handle both prototype quantities for design verification and batch volumes for instrument production ramp-up.
Drawing-Based Customization
Round, square, rectangular, stepped, notched, and slotted sapphire optical windows are machined to customer-provided engineering drawings. Tolerances down to 0.01 mm are achievable depending on geometry.
Prototype to Batch Scaling
Prototype quantities start from 5 pieces for design verification. Batch production volumes of 50 to 5,000+ pieces are supported with consistent quality control across the production run.
Inspection Documentation
Each production batch is accompanied by dimensional inspection reports, surface quality verification documentation, and transmission measurement data. Full material certification is available on request.
Quality assurance
Quality Assurance for Precision Sapphire Optical Components
Every sapphire optical window shipped for inspection equipment applications undergoes a defined inspection sequence. The inspection plan can be aligned with the specific requirements of the customer purchasing specification, including ISO 9001 quality management considerations for industrial component suppliers.
Dimensional Verification
Diameter, thickness, outline, bevel, and special feature dimensions are measured against the approved drawing. Measurement equipment is calibrated to traceable standards.
Surface Defect Inspection
Visual inspection under controlled lighting for scratches, digs, edge chips, and coating defects. Inspection criteria are aligned with the agreed scratch-dig specification.
Transmission Measurement
Spectrophotometer measurement across the specified wavelength range. Transmission data is recorded and included in the batch inspection report.
Flatness and Parallelism
Interferometer measurement of surface flatness ( /4 to /10) and wedge/parallelism. Results are documented in the final inspection record.
Engineering FAQ
Frequently Asked Questions About Sapphire Inspection Windows
Can sapphire windows withstand factory floor environments with dust and contaminants?
Yes. Single crystal sapphire's Mohs 9 hardness resists scratching from airborne particulates, metal dust, and routine contact. The non-porous surface prevents contaminant embedding, and standard industrial wipes can clean the window without micro-scratching. Sapphire inspection windows typically outlast coated glass alternatives by a significant margin in production environments.
What surface quality is recommended for high-resolution machine vision cameras?
For high-resolution machine vision systems performing precision defect detection, 20-10 scratch-dig or better is typically recommended. Lower surface scatter helps maintain image contrast and edge sharpness. For critical measurement applications, 10-5 scratch-dig ensures minimal surface-induced image artifacts.
Can sapphire windows be used with thermal and IR cameras?
Yes. Sapphire transmits from UV through mid-IR (up to approximately 5 m), making it suitable for visible, NIR, and SWIR/MWIR inspection cameras. Crystal orientation selection and anti-reflection coating help optimize transmission for specific IR wavelength bands.
What information is needed for a custom sapphire inspection window quotation?
Please provide the window drawing or outline dimensions (diameter, thickness, shape), required surface quality (scratch-dig), flatness specification, wavelength range of interest, coating requirements, operating environment conditions, target quantity, and target lead time. This allows the engineering team to assess feasibility and prepare an accurate quotation.
Can sapphire windows be coated for specific inspection wavelengths?
Yes. AR and BBAR coatings can be designed for specific wavelength bands used in your inspection system. Single-band, dual-band, and broadband coating options are available. Coating design is reviewed case by case based on the specific wavelength requirements, angle of incidence, and substrate crystal orientation.
Related resources
Related Sapphire Optics and Inspection Equipment Resources
Request a quotation
Request Engineering Review for Sapphire Inspection Window Drawings
Share your drawing, wavelength requirements, surface quality specification, and operating environment details. The Felix Glass engineering team will review feasibility and provide a project-specific quotation with lead time and inspection documentation details.
Request Sapphire Inspection Window Quote
