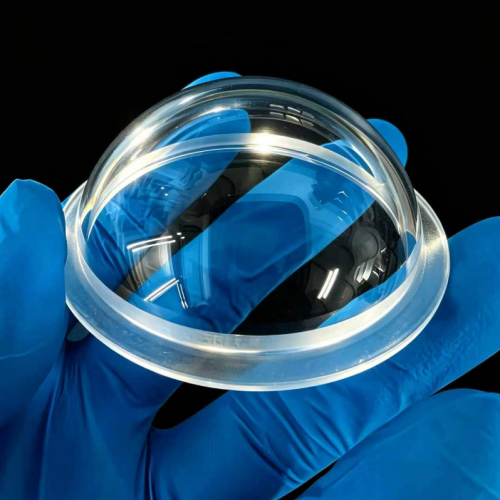

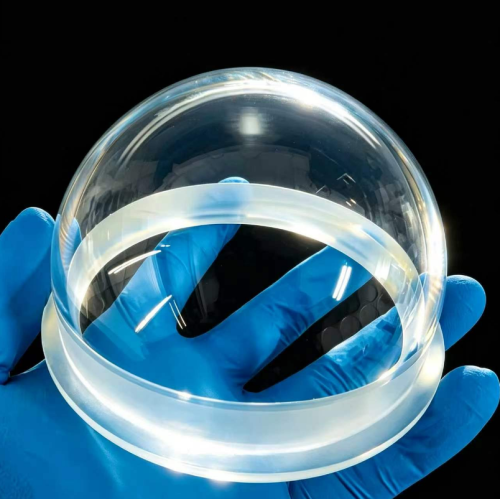

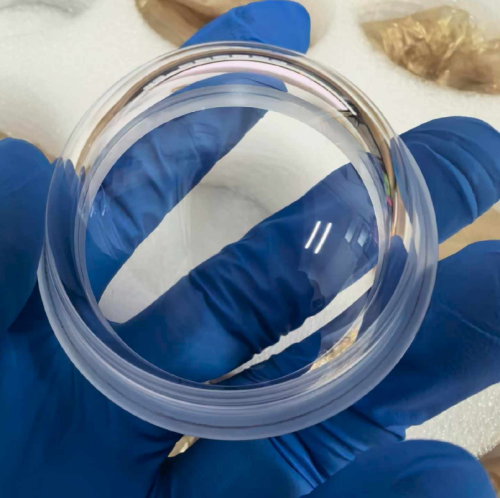

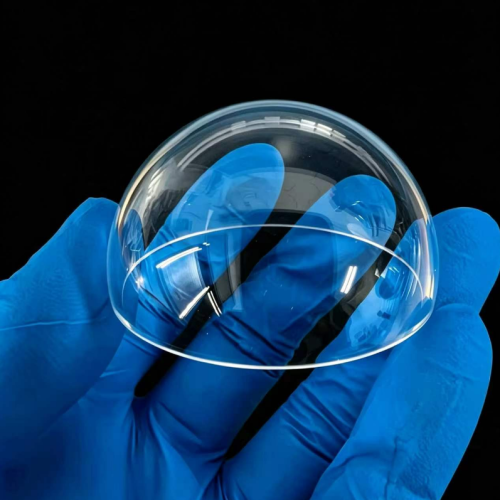

Custom JGS2 fused silica quartz domes. UV optimized transmission for sensor & aerospace.
- Model
- FG-VFQD-024
Item specifics
- Materia
- JGS2 UV‑Grade Fused Silica
- Working Wavelength
- 185‑2500 nm
- Max Continuous Temperature
- 1100℃
- Dome Style
- Hemispherical / Partial Spherical
- Surface Quality
- 40‑20, up to 20‑10 scratch‑dig
- Surface Figure
- λ/2 ~ λ/4 @632.8nm
- Coating
- Bare / AR‑UV / Broadband AR
- Edge Treatment
- Custom Chamfer / Rounded / Sharp Edge
- Bubble Grade
- Class0 / Class1 / Class2 optional
- Process
- CNC‑Grinding‑Polishing‑Inspection
Review
Description
Felix Glass custom‑manufactures high‑purity JGS2 quartz domes for ultraviolet, optical sensor and aerospace systems. Precision CNC grinding & polishing, strict dimensional & surface quality inspection. We strictly adopt original JGS2 fused silica blanks, consistent UV optical performance, avoid substitute material risk. CNC machining, grinding, polishing, coating and metrology inspection completed inside factory, stable lead‑time control. Accept your CAD drawings, STEP / PDF files. We review geometry feasibility before quotation. Dimensional test, surface defect check, transmittance verification before shipment; inspection report available upon request. Send your drawing, dimension requirement, quantity and coating demand. Our optical engineering team will reply RFQ within 24 working hours.JGS2 Fused Silica Quartz Dome Manufacturer
JGS2 Quartz Dome Key Specifications
Item
Parameter
Material Grade
JGS2 Fused Silica Quartz (UV grade fused silica)
Working Wavelength
185 nm ~ 2500 nm, excellent UV transmittance
Outer Diameter
Custom range: 10mm ‑ 300mm
Wall Thickness
Custom per customer drawing
Radius of Curvature
Spherical dome, custom R value
Surface Quality
Standard 40‑20; High‑grade up to 20‑10 scratch‑dig
Surface Figure
λ/2 ~ λ/4 @632.8nm optional
Coating
Bare JGS2 quartz / AR‑UV / multi‑band AR coating
Process Flow
CNC Machining → Grinding → Fine Polishing → Cleaning → Inspection & Packaging
Why Choose Felix Glass as Your JGS2 Quartz Dome Manufacturer
Genuine JGS2 Raw Material
Full‑In‑House Manufacturing
Custom Drawing Support
Rigorous Metrology Inspection
Typical Applications for JGS2 Quartz Dome
Packing & Logistics
Request For Quotation for JGS2 Quartz Dome
