Model
FG-Multispectral HIP ZnS

Item specifics

Material
Multispectral HIP ZnS (Clear Zinc Sulfide)
Working Wavelength
0.4μm – 14μm (Visible + NIR + LWIR Dual Band)
Refractive Index @10μm
~2.20
Knoop Hardness
110–120 KHN
Surface Quality
Custom 60-40 / 40-20 / 20-10 scratch-dig grades
Coating Options
Broadband multispectral AR, DLC hard coating

Review

Description

Multispectral HIP ZnS – Clear Zinc Sulfide for Dual-Band EO/IR Systems

Felix Glass fabricates high-transmission multispectral HIP ZnS optical domes, windows and lenses. Unlike standard yellowish FLIR grade ZnS, our HIP multispectral ZnS remains optically clear and delivers consistent transmission across both visible and long-wave infrared bands, ideal for dual-band EO/IR gimbals, airborne surveillance and multi-spectral imaging payloads.

Key Advantages of Multispectral HIP ZnS Optics

  • Dual-band performance: transparent in visible, near-IR and 8–14μm LWIR spectrum
  • HIP hot isostatic pressed material, low optical scatter, zero internal voids
  • Clear substrate appearance, no natural yellow tint of conventional FLIR ZnS
  • Custom fabrication: hemispherical domes, flat windows, plano-convex lenses
  • Compatible with broadband AR, DLC hard coating for outdoor airborne use
  • Strict material grade segregation from FLIR ZnS to eliminate specification mix-ups

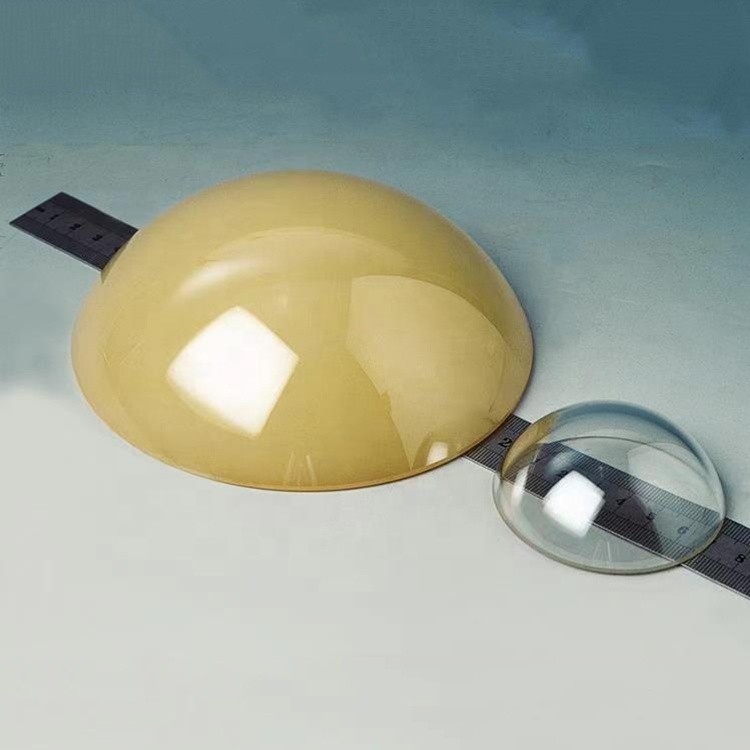

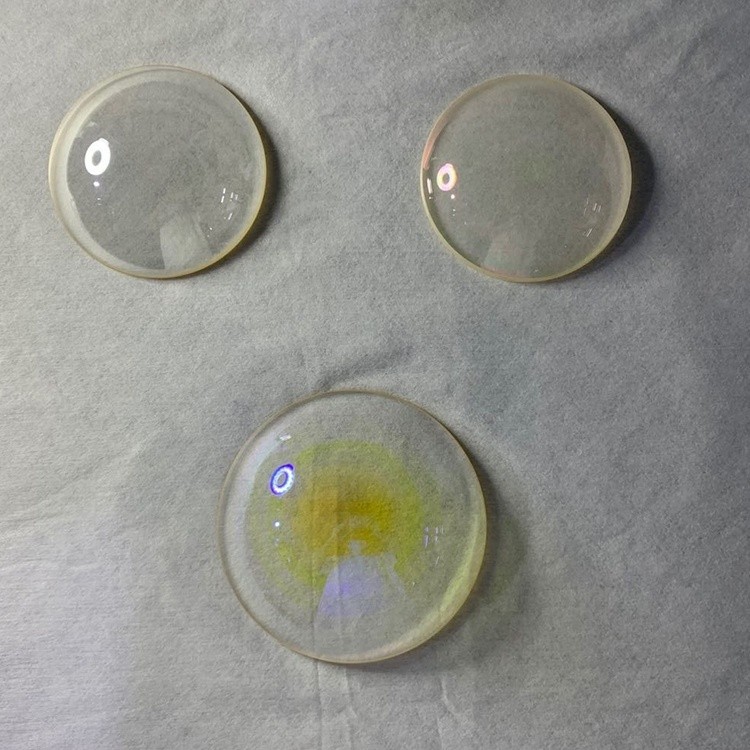

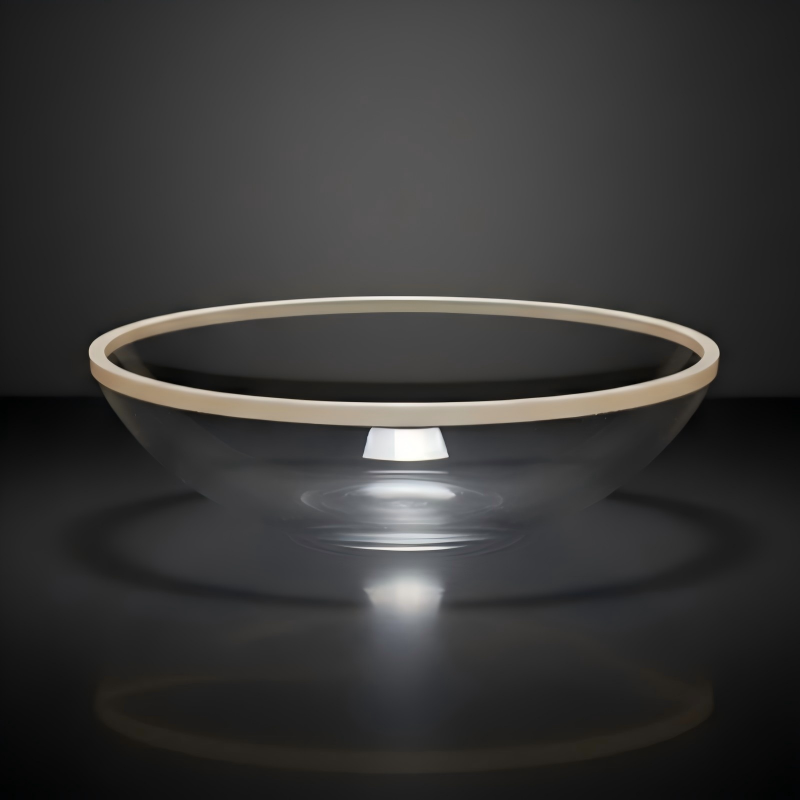

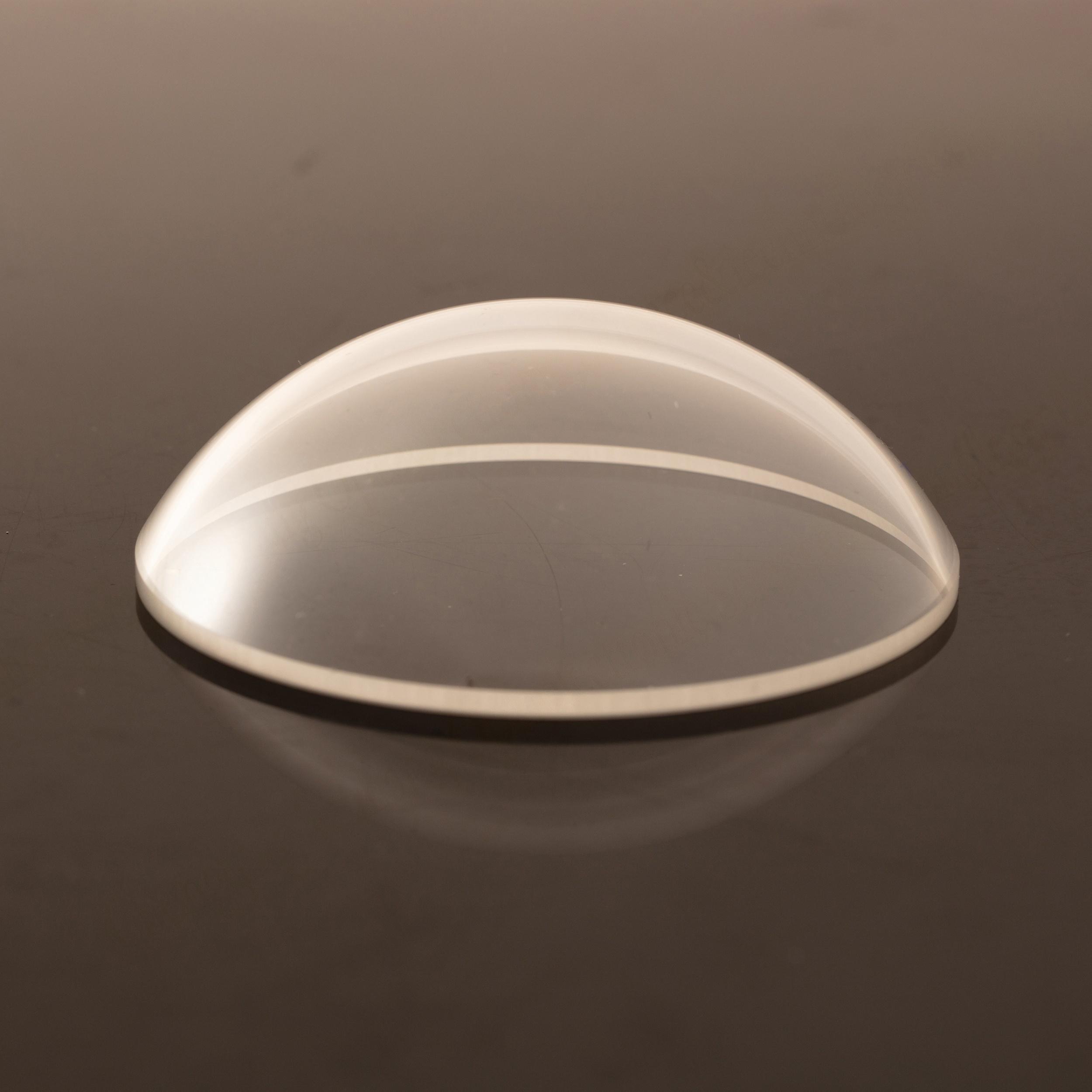

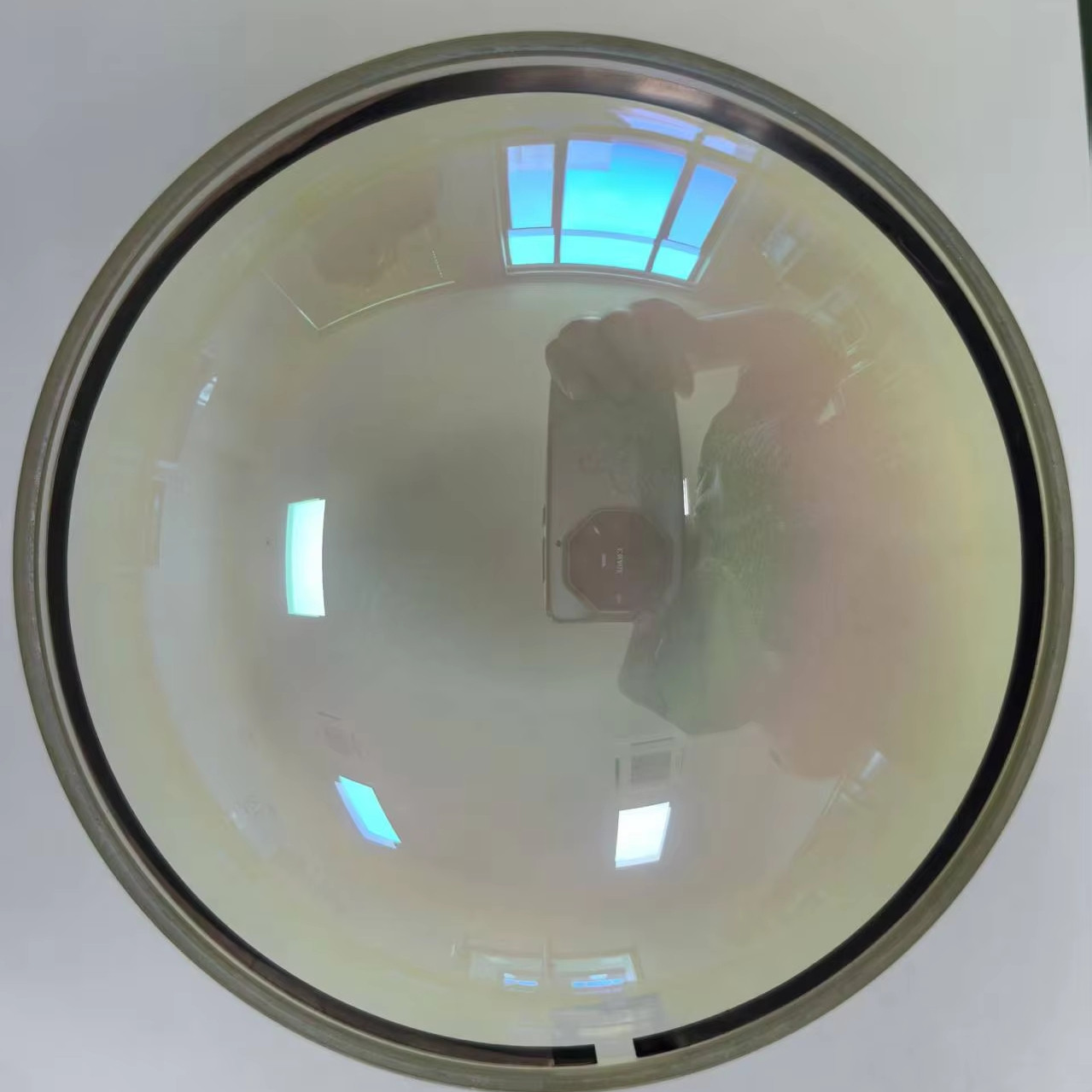

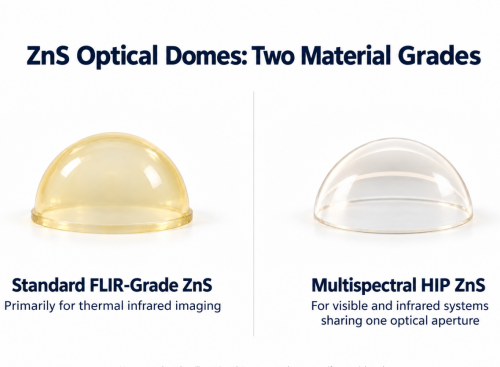

Batch of clear multispectral HIP ZnS plano-convex lenses for dual-band EO/IR systems Large clear multispectral HIP ZnS hemispherical optical dome Size comparison of FLIR grade and multispectral HIP ZnS optical domes Clear multispectral HIP ZnS hemispherical dome side profile Flanged AR coated multispectral HIP ZnS dome for gimbal optical systems Comparison of standard FLIR grade and multispectral HIP ZnS optical dome grades

Core Optical & Mechanical Specifications

Material Multispectral HIP ZnS (Clear Zinc Sulfide)
Working Wavelength 0.4μm – 14μm (Visible + NIR + LWIR Dual Band)
Refractive Index @10μm ~2.20
Knoop Hardness 110–120 KHN
Surface Quality Custom 60-40 / 40-20 / 20-10 scratch-dig grades
Coating Options Broadband multispectral AR, DLC hard coating

Common Application Scenarios

  • Dual-band EO/IR camera gimbals for UAV, rotorcraft and maritime surveillance payloads
  • Multi-spectral target tracking and reconnaissance systems
  • Combined visible camera + LWIR thermal imager shared-aperture optical domes
  • Industrial multispectral inspection and optical test bench components

Multispectral HIP ZnS vs Standard FLIR Grade ZnS

Standard FLIR grade ZnS is naturally yellow-tinted and optimized exclusively for 8–14μm LWIR thermal imaging, with no visible-light transmission. Multispectral HIP ZnS is clear, post-HIP densified and engineered to pass visible light alongside infrared wavelengths. View our standard FLIR grade ZnS dome product page for material selection reference.

Custom Manufacturing & Prototype Service

Send your CAD drawing, dimension sketch, wavelength requirement, surface quality and coating specification for formal quotation. We support small-batch prototyping and volume OEM production. All outgoing parts are inspected with interferometer metrology, scratch-dig visual check and spectral transmission testing to match your optical system requirements.

Request Multispectral HIP ZnS Quotation

Submit your optical drawing, size, coating requirement and project quantity. Our engineering team will review feasibility and send you a formal quote within 24 hours.

Submit Your RFQ

Related Resources

• Read our ZnS / ZnSe material selection guide
• Check common questions in our Infrared Dome FAQ
• Compare standard FLIR ZnS dome and CVD ZnSe dome options

recommend

Factory Supply CVD ZnSe Plano-Convex Spherical IR Window Lens, Square & Round Dual Sizes

Factory Supply CVD ZnSe Plano-Convex Spherical IR Window Lens, Square & Round Dual Sizes

Model : FG-Multispectral HIP ZnS

ZnSe Manufacturer | Custom ZnSe CO₂ Laser Protection Window

ZnSe Manufacturer | Custom ZnSe CO₂ Laser Protection Window

Model : FG-Multispectral HIP ZnS

IR Grade CVD ZnSe Optics for LWIR Thermal Imaging Systems

IR Grade CVD ZnSe Optics for LWIR Thermal Imaging Systems

Model : FG-Multispectral HIP ZnS

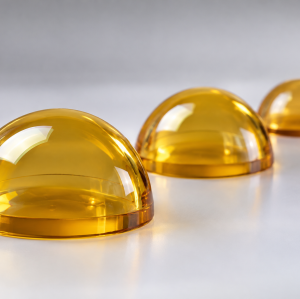

Custom CVD ZnSe IR Dome for LWIR Thermal Imaging & CO2 Laser Systems

Custom CVD ZnSe IR Dome for LWIR Thermal Imaging & CO2 Laser Systems

Model : FG-Multispectral HIP ZnS

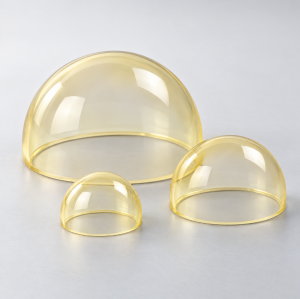

Standard FLIR Grade CVD ZnS Dome | Cost-Effective LWIR Optics
