Quartz Crucible
- Share
Product Overview

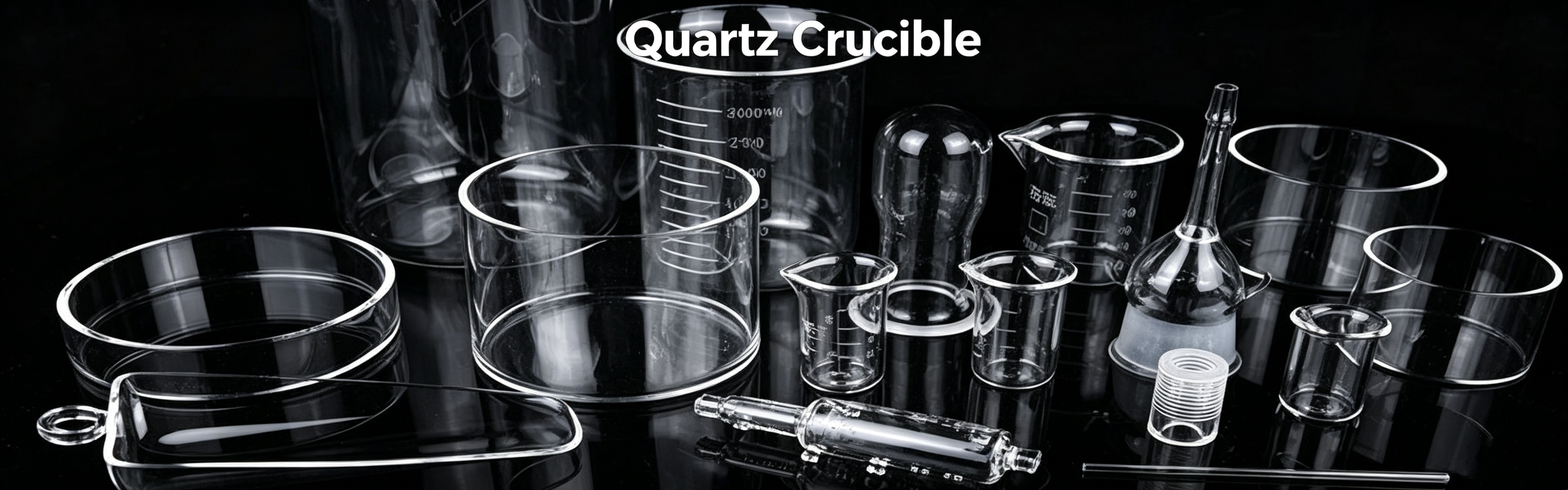

Felix Glass is a professional custom quartz crucible manufacturer and OEM optical quartz fabrication supplier, providing semiconductor-grade precision optical quartz components for polysilicon manufacturers, laboratory analytical equipment suppliers, photovoltaic sintering factories and precious metal melting workshops worldwide. Our quartz crucibles are manufactured from 99.99% ultra-high purity fused silica with JGS2 and JGS3 material grades, featuring extremely low metal impurity content, ultra-low CTE and excellent high-temperature stability. The dense quartz structure effectively avoids sample contamination during high-temperature melting, sintering and chemical digestion processes. These crucibles are core containers for semiconductor silicon melting, photovoltaic wafer sintering, lab ICP analysis and precious metal smelting.We support custom inner volume, wall thickness, lid matching and special bottom profiling processing, fully compliant with semiconductor purity standards and ISO 9001 full inspection, covering small lab analytical crucibles to large industrial OEM melting vessels.
Product Overview
Felix Glass is a professional custom quartz crucible manufacturer and OEM optical quartz fabrication supplier, providing semiconductor-grade precision optical quartz components for polysilicon manufacturers, laboratory analytical equipment suppliers, photovoltaic sintering factories and precious metal melting workshops worldwide.
Our quartz crucibles are manufactured from 99.99% ultra-high purity fused silica with JGS2 and JGS3 material grades, featuring extremely low metal impurity content, ultra-low CTE and excellent high-temperature stability. The dense quartz structure effectively avoids sample contamination during high-temperature melting, sintering and chemical digestion processes. These crucibles are core containers for semiconductor silicon melting, photovoltaic wafer sintering, lab ICP analysis and precious metal smelting.
We support custom inner volume, wall thickness, lid matching and special bottom profiling processing, fully compliant with semiconductor purity standards and ISO 9001 full inspection, covering small lab analytical crucibles to large industrial OEM melting vessels.
Product Specifications
| Parameter | Specification |
|---|---|
| Material | 99.99% Ultra-High Purity Fused Silica (JGS2/JGS3) |
| Standard Volume Range | 5ml–50000ml small lab to large industrial sizes |
| Wall Thickness | 2mm–15mm customizable thickened wall option |
| Inner Surface Finish | Smooth fused finish, low impurity precipitation |
| Transmission Range | 220nm–3500nm UV-Vis-IR spectrum |
| Operating Temperature | Up to 1100°C continuous working |
| CTE | 5.5×10⁻⁷ /°C ultra-low thermal expansion |
| Impurity Content | Ultra-low heavy metal, low contamination |
| Tolerance | Inner diameter ±0.2mm, height ±0.3mm |
| Customization | Lid matching, thickened bottom, pouring spout, special shaping |
Key Features
✓ Ultra-High Purity Raw Material, Minimal Sample Contamination
✓ High Temperature & Thermal Shock Resistant for Long Sintering Cycles
✓ Dense Smooth Inner Wall Reduces Material Adhesion
✓ Excellent Chemical Inertness Against Most Acid Reagents
✓ Full Sizes from Micro Lab Crucible to Large Industrial Melting Tank
✓ OEM Custom Shape, Volume & Lid Assembly Support
Manufacturing Capabilities
1. Full‑Axis CNC Machining for complex outlines & holes2. Precision Edge Grinding & Safety Chamfer Processing3. Single & Double Sided Ultra‑Fine Optical Polishing4. High‑Temperature Tempering & Stress Relief Treatment5. Magnetron Sputtering Multi‑Layer Optical Coating6. Complete Optical Performance Lab Inspection
Available Material Grades
1. JGS2 UV‑Vis Grade – Laboratory chemical analysis, small melting experiments
2. JGS3 IR Grade – Photovoltaic sintering, industrial high-temperature smelting
3. Ultra-Pure Low-Impurity Fused Silica – Semiconductor polysilicon melting dedicated
Main Application Industries
1. Semiconductor Polysilicon Melting & Silicon Wafer Production
2. Photovoltaic Cell High-Temperature Sintering Process
3. Laboratory ICP, XRF & Chemical Digestion Analysis
4. Precious Metal Gold/Silver Alloy High-Purity Melting
5. Mineral & Ore High-Temperature Ashing Experiments
6. Aerospace Material Thermal Sintering Testing
7. Pharmaceutical High-Purity Raw Material Melting
8. Industrial High-Temperature Chemical Reaction Containers
Custom Manufacturing Service
1. Full OEM & ODM one‑stop optical glass customization
2. Small prototype sample orders supported before mass production
3. Ultra‑low MOQ for laboratory & R&D startup clients
4. Free technical drawing evaluation & customized solution design
5. Custom coating, printing, shaping and hole layout processing
Why Choose Felix Glass
1. 19+ years professional fused silica optical glass manufacturing experience
2. ISO 9001 certified full factory quality control system
3. Independent optical testing laboratory for all performance indicators
4. Stable export supply chain serving global industrial customers
5. Standardized production line to guarantee consistent fast delivery
Frequently Asked Questions
-
1. Q: What is the MOQ for custom quartz crucibles?A: Ultra-low MOQ support, single small-volume lab crucible samples are available for chemical testing.2. Q: Can you customize quartz crucibles according to customer size drawings?A: Our thermal processing team accepts volume, height and wall thickness custom specs, free drawing review and 24-hour formal quotation.3. Q: What quartz grade is suitable for semiconductor polysilicon melting?A: Ultra-pure low-impurity fused silica grade is specially designed to avoid silicon contamination.4. Q: What long-term temperature can quartz crucibles withstand?A: Stable continuous operation at 1100°C, resistant to repeated heating and cooling cycles without cracking.5. Q: Can quartz crucibles be used for acid digestion experiments?A: Chemically inert to nearly all acids except hydrofluoric acid, ideal for wet chemical analysis.6. Q: Do you supply matching quartz lids for crucibles?A: Custom quartz lids with sealing edges can be produced to match all crucible sizes.7. Q: What sizes of quartz crucibles are in regular stock?A: 5ml to 5L standard lab crucibles, large industrial 10L–50L crucibles made to order.8. Q: Will high-temperature melting cause metal contamination from crucibles?A: Ultra-high purity fused silica raw material controls heavy metal impurities at trace levels for high-purity smelting.9. Q: Can thickened bottom crucibles be customized for long-time sintering?A: Yes, thickened bottom and wall designs extend service life under continuous high temperature.10. Q: Can a pouring spout be added on large melting quartz crucibles?A: Pouring spouts, side notches and special shaping are all available custom processes.
