Core Pain Points We Solve Across All Dome Applications
Single dome structure cannot match diverse installation and field-of-view demands
Improper raw material selection causes light failure under different spectrum environment
Abrasion, salt fog, high pressure and thermal shock lead to frequent lens damage outdoors
Few manufacturers own full-form dome processing capacity for all industrial scenarios

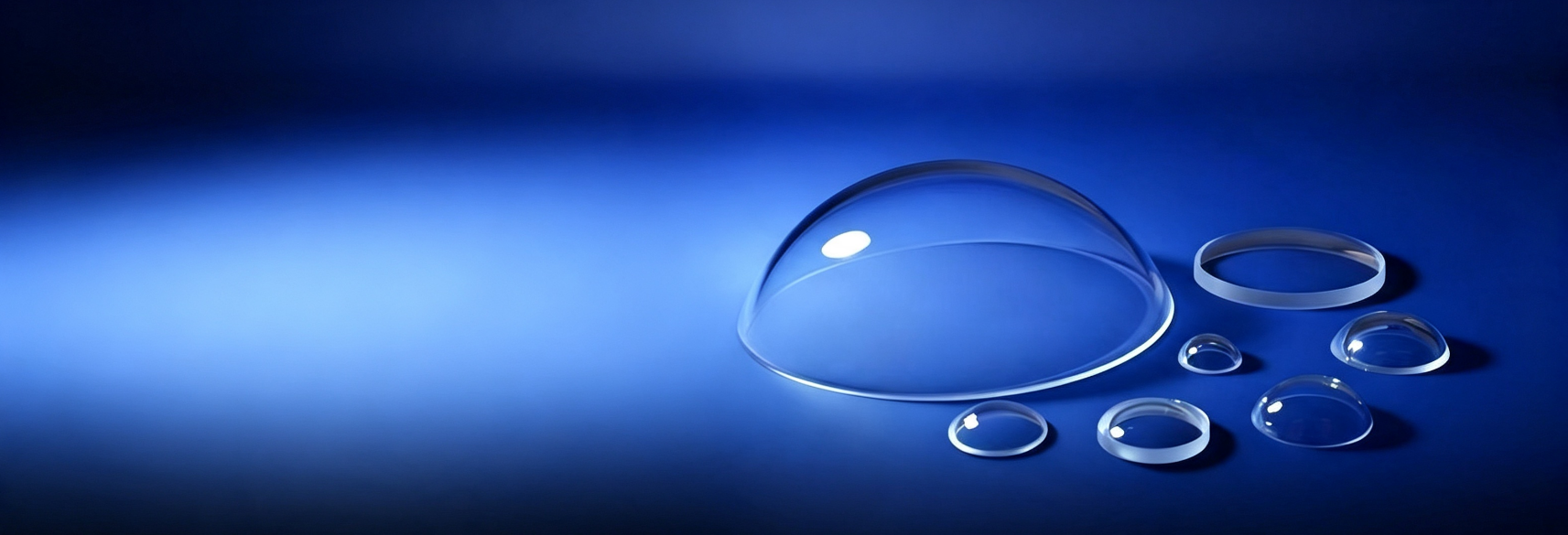

Product Key Advantages Of Our Full-Spectrum Optical Dome
Six Standard Mature Structural Designs
Ready-made mold for hyper hemispherical,flanged,deep-sea,aerospace,marine,MWIR/LWIR infrared six types dome,shorten prototype cycle.
Multi-Grade Optional Optical Substrates
Visible BK7/H-K9L, high-hardness sapphire, infrared ZnS/ZnSe/Germanium three major material series for different working waveband.
Custom Tailored Anti-Reflection Coating
Single-band AR,dual-band BBAR coating available to meet visible,near-infrared,medium & long wave infrared transmission requirement.
Strong Environmental Adaptability
Custom optimized structure for deep-sea high pressure,offshore salt fog,airborne thermal shock and high-strength sand erosion.
Free Pre-Production Optical Simulation
Engineer team provides FOV distortion simulation,curvature and flange structural design according to customer equipment parameters.
Full In-house One-stop Manufacturing
CNC contour grinding,ultra-precision polishing,vacuum coating and full optical inspection finished inside our factory.
Optical Substrate Material Selection Guide
Select proper raw material based on your working spectrum, environment and equipment application
| Optical Material | Key Performance Features | Suitable Dome Types | Working Spectrum | Limitations & Notes |
|---|---|---|---|---|
| Single Crystal Sapphire | Mohs 9 high hardness, salt corrosion resistance, thermal shock stable, broadband transmission | All 6 types dome | UV ~ Mid IR | Higher cost; best choice for harsh environment |
| BK7 / H-K9L Optical Glass | Low cost, easy precision polishing, stable visible light performance | ROV shallow water, UAV visible camera, marine shore monitoring, flanged dome, hyper hemispherical dome | Visible & Near IR | Cannot pass MWIR/LWIR; Not recommended for deep sea long-term immersion |
| ZnS (Zinc Sulfide) | Excellent mid & long infrared transmittance | MWIR LWIR thermal imaging IR dome, hyper hemispherical panoramic IR dome | Visible ~ LWIR | Not ideal for long-duration salt fog environment |
| ZnSe (Zinc Selenide) | Low absorption in long wave infrared, ideal for thermal camera | MWIR LWIR thermal imaging IR dome | NIR ~ LWIR | Soft surface, need protective coating; higher price |
| Germanium (Ge) | High transmittance for long wave infrared | MWIR LWIR thermal imaging IR dome | MWIR / LWIR | Strong absorption under high temperature, only for thermal system |
Reminder: We support customized single-layer & broadband BBAR anti-reflection coating matched with each substrate. Send your spectrum requirement for free material recommendation.
General Engineering Specification Table For All Series Optical Dome
| Parameter Item | Custom Technical Specification |
|---|---|
| 6 Main Product Categories | Deep Sea High Pressure ROV Dome / MWIR-LWIR Thermal IR Dome / UAV Aerospace EOIR Dome / Anti-Corrosion Marine Dome / Integrated Flange Mount Dome / Hyper Hemispherical Ultra Wide FOV Panoramic Dome |
| Core Optional Materials | Single Crystal Sapphire, BK7 / H-K9L Optical Glass, ZnS, ZnSe, Germanium (Ge) Infrared Crystal Substrate |
| Optical Surface Quality | 20/10, 40/20 MIL aerospace precision grade |
| Custom Coatings | Single-band AR, Dual-band BBAR multi-layer anti-reflection coating |
| Processing Feature | Custom curvature CNC grinding, ultra-precision polishing, edge shaping, integrated flange customization |
| Available Working Spectrum | Visible light, Near infrared, MWIR, LWIR full waveband coverage with targeted raw material matching |
Note: BK7 / H-K9L only fits visible & near-infrared spectrum, cannot be used for MWIR/LWIR thermal imaging; BK7 is not recommended for long-term deep seawater continuous immersion, select sapphire for harsh underwater environment.
In-House Full-Series Optical Dome Manufacturing Capability
All six types surveillance domes are manufactured in Class100 dust-free optical workshop. We complete blank forming, special curve CNC grinding, ultra-precision polishing and customized vacuum coating independently, supporting targeted material matching for different application scenarios.
Six Independent Product Branches & Applicable Scenarios
- 1. High Pressure Sapphire Underwater Detection Viewport: Deep sea ROV、AUV underwater detection camera；BK7 optional for shallow water visible monitoring
- 2. MWIR LWIR Thermal Imaging IR Dome: Airborne, vehicle-mounted thermal imaging turret, only ZnS/ZnSe/Ge/Sapphire available, BK7 invalid for infrared band
- 3. UAV & Aerospace EOIR Optical Dome: Drone inspection payload; BK7 for pure visible camera, sapphire for visible+IR dual-band equipment
- 4. Marine Corrosion Resistant Optical Dome: Offshore platform perimeter monitoring; BK7 only for shore fixed camera
- 5. Flanged Mounted Precision Optical Dome: Industrial monitoring,container embedded installation,full substrate options available
- 6. Hyper Hemispherical Ultra Wide Angle Dome: Zero blind spot panoramic shooting for aerial and on-site large-area surveillance
Our optical engineers provide one-stop customized solution including curvature simulation,raw material screening and coating design. Every finished dome will pass full FOV,pressure and spectrum inspection before delivery.
Why Source All Types Optical Dome From Felix Glass
Custom Optical Simulation
Free FOV distortion simulation for any dome radian structure
Full Structure Production Line
Support six mainstream dome contour one-stop processing
All-Round Material Customization
Visible and infrared multi-substitute raw material selection
Strict Multi-Dimensional Testing
Pressure,salt fog,optical performance full inspection
Global Industry Standard Compliance
Meet US & EU industrial surveillance optical specifications
Related Precision Optical Dome Solutions
High Pressure Sapphire Underwater Detection Viewport for ROV & AUV
Deep sea pressure-resistant sapphire optical window for underwater detection camera
MWIR LWIR Thermal Imaging IR Dome | ZnS ZnSe Optical Dome
Broadband infrared dome for thermal surveillance & night vision imaging system
UAV & Aerospace EOIR Optical Dome | Custom Sapphire Surveillance Dome
Lightweight sapphire dome for airborne EO/IR monitoring equipment
Marine Corrosion Resistant Optical Dome | Salt Fog Proof Sapphire Dome
Salt spray resistant sapphire dome for long-term marine environment deployment
Flanged Mounted Precision Optical Dome | Integrated Flange Sapphire Dome
Integrated flange sapphire dome for easy equipment assembly & sealing
Hyper Hemispherical Ultra Wide Angle Dome | Sapphire Wide FOV Optical Dome
Ultra-wide field of view sapphire dome for panoramic monitoring camera
Frequently Asked Questions For Combined Series Optical Dome
Q1: Can BK7/H-K9L glass be used on infrared thermal imaging dome?
A: Not available. BK7 only transmits visible and near-infrared light, light will be completely blocked under MWIR/LWIR waveband, infrared dome must adopt ZnS,ZnSe or Germanium crystal.
Q2: When should we pick sapphire instead of BK7 glass?
A: Choose sapphire for deep-sea long-term soaking, high altitude airborne harsh environment,anti-salt fog requirement and dual-band visible+IR imaging projects.
Q3: Do you support switching dome structure after prototype confirmation?
A: We can adjust six existing mature outlines for secondary modification according to customer installation structure, extra mold cost only for brand-new customized radian.
Q4: Can one dome realize both day visible shooting and night thermal imaging?
A: Yes,select sapphire broadband substrate plus BBAR dual-band anti-reflection coating to achieve dual-spectrum synchronous imaging.
Q5: Can we order mixed-type dome bulk procurement in one order?
A: Accept mixed SKU consolidated order of six dome types, unified delivery to reduce client multiple purchasing cost.
Get Customized Optical Dome Solution For Your Equipment
Submit your working waveband,installation mode,operating environment and required field of view. Our optical engineers will deliver material recommendation plus formal quotation within 24 hours.
