AR anti-reflection
Reduces surface reflection for imaging, ultrasound, and diagnostic-display viewing. The source lists up to 97% visible-light transmittance for an AR configuration.
Medical Touch Panel Glass for Medical Equipment & Displays- felix glass
- Price
- US $6.55-8.99
- Model
- MDG-055
- MOQ
- 5 piece
Item specifics
- Material
- Medical Grade High Aluminosilicate Glass
- Thickness
- customizable, OEM/ODM supported
- Coating Options
- AG anti-glare / AR anti-reflection / AF anti-finge
- Hygiene Performance
- ≥99% anti-bacterial rate
Review
Description

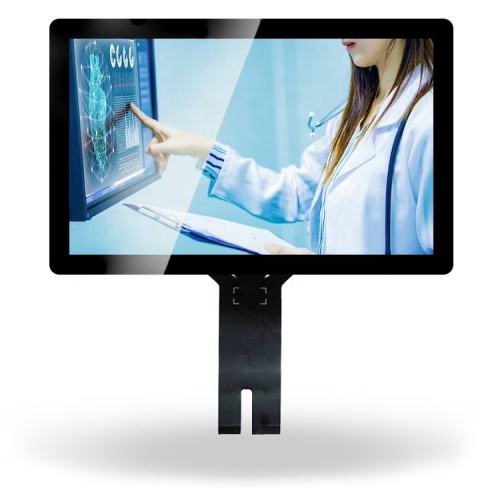

Felix Glass manufactures custom protective cover glass for medical displays and touch interfaces, including diagnostic monitors, ultrasound systems, surgical displays, patient monitors, ophthalmic devices, and laboratory instruments. The source product specifies high-purity low-iron tempered glass, precision machining, magnetron-sputtered optical coatings, and optional AR anti-reflection, AF anti-fingerprint, and AG anti-glare functions. This product remains in the Industrial Touch Panel Glass category. The values below retain the source product content. Final material, coating stack, dimensions, optical performance, cleaning resistance, hygiene claim, and documentation must be confirmed for the ordered configuration and intended equipment. Each treatment addresses a different display or cleaning condition. The coating requirements should be written as measurable optical, surface, and durability criteria. A hydrophobic and oleophobic surface helps reduce fingerprint, medical-liquid, and disinfectant residue and supports routine wiping. A low-haze matte surface diffuses reflections from surgical lamps and ward lighting while display sharpness remains a project-specific validation item. Compare related cover-glass options in the Felix Glass product catalog. These combinations are starting points. Reflection, haze, sparkle, image sharpness, touch behavior, cleaning chemistry, and coating wear should be tested on the assembled display. Learn about the manufacturer on About Us. The original description identifies repeated alcohol cleaning, hydrogen peroxide exposure, common disinfectants, retained optical clarity, coating adhesion after wiping, and frequent clinical touch as design considerations. Cleaning resistance depends on the exact chemical concentration, dwell time, cloth, pressure, cycle count, temperature, coating stack, edge exposure, and acceptance criteria. These parameters should be included in sample validation; no cleaning-resistance statement should be treated as universal. The existing product attribute lists an antibacterial rate of at least 99%. Before using that value for procurement, labeling, or regulatory work, request the organism, test standard, laboratory, sample configuration, contact time, report, and applicable coating. Cover glass is not sterile and is not presented here as a medical device. Additional material and coating notes are available in the Felix Glass blog. Confirm test methods, tolerances, sample construction, component scope, certificate issuer, and document validity before purchase. The 9H value should identify its scale, load, method, and pass criteria. The original description lists the following use cases. The finished equipment manufacturer remains responsible for system-level optical, electrical, cleaning, safety, and regulatory validation. The source lists custom dimensions, shapes, thicknesses, coating combinations, black borders, logos, markings, sensor holes, cutouts, notches, and chamfered edges. Prototype and production quantities can be reviewed against the selected process route. Start from the Felix Glass home page for a broader view of glass and coating capabilities. The original description states that transmittance, haze, coating uniformity, and surface quality are inspected before shipment. It also references engineering support, coating recommendations, production supply, and documentation on request. For supplier qualification, define the sampling plan, lot traceability, dimensional method, cosmetic limits, optical test methods, coating-wear test, cleaning test, packaging, sample lead time, capacity, and delivery terms. The source recommends AR+AF+AG as a starting point. Final selection depends on surgical-light reflections, display luminance, image content, viewing angle, touch use, cleaning, and test results. The source describes resistance to repeated alcohol, hydrogen peroxide, and common-disinfectant cleaning. Validation must use the exact chemical, concentration, dwell time, cloth, load, cycle count, and acceptance criteria. Yes, subject to CAD review, glass thickness, edge distance, tooling, printing artwork, tolerances, and inspection requirements. The source lists ISO 9001, RoHS, REACH, and optical test documentation. Request the current files and verify that their scope covers the ordered material and process. No. The listed rate requires supporting test details and does not establish sterility, sterilization compatibility, clinical efficacy, or medical-device status. Use Contact Us to request coating data, cleaning-test details, and current documentation. The original description contained unverified placeholders for touch-screen cover glass, quartz glass tube, ITO glass, FTO glass, and quartz glass plate. Those placeholder links are removed. Use the approved catalog and blog paths above to compare cover-glass substrates, coating combinations, conductive glass, and processing options. Send the equipment application, CAD drawing, dimensions, thickness, coating combination, optical targets, haze, openings, edge geometry, printing artwork, cleaning chemicals, cleaning cycles, environment tests, documentation needs, sample quantity, annual volume, and requested schedule.
Felix Glass Co., Limited · Model MDG-055
1. Medical Touch Panel Glass for Equipment Displays
Surface-function overview
2. AR, AF, and AG Functions for Medical Displays
AF anti-fingerprint
AG anti-glare
Configuration guide
3. Coating Combination Selection
AR onlySource recommendation for medical imaging and diagnostic displays where reflection control is the primary requirement.
AR + AFSource recommendation for patient monitors, ward displays, and general medical touch interfaces.
AG + AFSource recommendation for public medical kiosks and multi-user terminals with glare and frequent-touch concerns.
AR + AF + AGSource recommendation for surgical displays exposed to mixed lighting and frequent cleaning.
Cleaning and hygiene review
4. Medical Cleaning and Durability Requirements
Antibacterial claim requires evidence review
Source data consolidated
5. Technical Specifications
Substrate High-purity low-iron tempered glass Coating options AR, AR+AF, AG+AF, or AR+AF+AG Visible-light transmittance At least 92%; source maximum reference of 97% for AR glass AG haze 5%–10% source reference AF water contact angle At least 110 degrees source reference Surface hardness 9H source reference Common thicknesses 1.1, 2.0, and 3.0 mm; custom thickness is listed as available Working-temperature reference -20°C to 120°C Custom processing CNC profiles, full edge chamfering, sensor holes, masking, and black-border printing Compliance references ISO 9001, RoHS, and REACH; documents are listed as available on request
Clinical-equipment integration
6. Medical Display and Touchscreen Applications
OEM and ODM processing

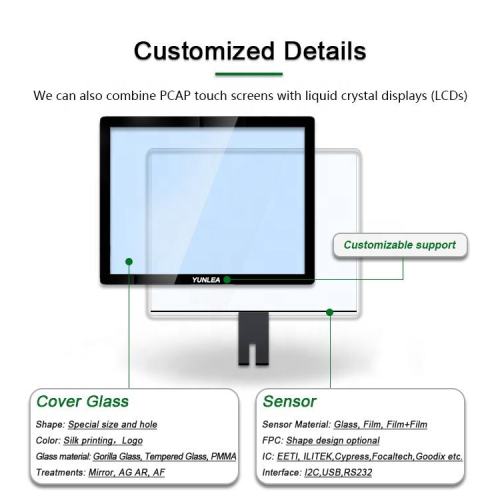

7. Custom Size, Shape, Printing, and Openings
Inspection and documentation
8. Optical, Coating, and Surface Quality Review
Optical checksTransmittance, reflectivity, haze, color, sharpness, and coating uniformity.
Durability checksHardness, coating adhesion, wear, chemical exposure, and repeated wiping.
Appearance checksPrinting, edges, openings, particles, scratches, and dimensional conformity.
Project FAQ
9. Medical Touch Panel Glass FAQ
Which coating combination can be considered for surgical displays?
Can the cover glass tolerate repeated medical disinfection?
Can sizes, cutouts, and black masking be customized?
Can compliance and optical documents be requested?
Does the antibacterial attribute make the glass sterile?
Related resources
10. Related Medical Display Glass Resources
RFQ input checklist
Send project requirements
11. Request a Custom Medical Display Glass Quote
