ITO Glass Electrodes for Lab Electrochemistry - Felix Glass
- Price
- US $2.88-6.26
- Model
- ITO-E01 1
- MOQ
- 5 piece
Item specifics
- Substrate
- Borosilicate glass / Fused silica (quartz) optional
- ITO Layer
- In₂O₃:SnO₂, thickness 100–200 nm
- Sheet Resistance
- 5 Ω/sq, 10 Ω/sq, 15 Ω/sq, 20 Ω/sq (custom)
- Visible Transmittance
- ≥85% @ 550 nm
- Size (Standard)
- 20×20 mm, 25×75 mm (microscope slide), 50×50 mm
- Thickness
- 0.5 mm, 1.1 mm, 1.5 mm
- Surface Roughness
- ≤3 nm RMS
- Working Temp
- ≤250°C
- Chemical Stability
- Resists dilute acid/alkali/organic solvents; ethanol/acetone cleanable
- Custom Process
- Cutting, drilling, patterning, etching, edge chamfering
Review
Description

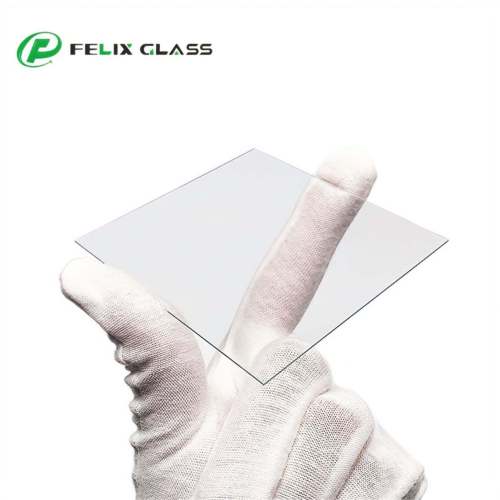

ITO Glass Electrodes | Lab Electrochemistry Conductive Glass Slides
Felix Glass supplies electrochemistry-grade ITO glass (Indium Tin Oxide coated glass) for academic & industrial labs. Made by magnetron sputtering of ITO thin film onto borosilicate/quartz substrate, it combines low sheet resistance, high visible transmittance, excellent chemical stability. It serves as a transparent working electrode for electrochemical and spectroelectrochemical measurements, widely used for cyclic voltammetry(CV), chronoamperometry, spectroelectrochemistry, sensors & photoelectrochemical cells.
Technical Specifications
| Property | Value |
|---|---|
| Substrate | Borosilicate glass / Fused silica (quartz) optional |
| ITO Layer | In₂O₃:SnO₂, thickness 100–200 nm |
| Sheet Resistance | 5 Ω/sq, 10 Ω/sq, 15 Ω/sq, 20 Ω/sq (custom) |
| Visible Transmittance | ≥85% @ 550 nm |
| Size (Standard) | 20×20 mm, 25×75 mm (microscope slide), 50×50 mm |
| Thickness | 0.5 mm, 1.1 mm, 1.5 mm |
| Surface Roughness | ≤3 nm RMS |
| Working Temp | ≤250°C |
| Chemical Stability | Resists dilute acid/alkali/organic solvents; ethanol/acetone cleanable |
| Custom Process | Cutting, drilling, patterning, etching, edge chamfering |
Product Types
Borosilicate ITO Glass (General Electrochemistry)
- Substrate: Borosilicate glass
- Resistance: 10–20 Ω/sq
- Applications: General CV, electrochemical sensing, electrochromic devices
Quartz/Fused Silica ITO Glass (UV & Photoelectrochemistry)
- Substrate: High-purity fused silica
- Transmittance: UV–Vis–IR (185–3500 nm)
- Applications: Deep-UV spectroelectrochemistry, photolithography, photocatalysis
Key Features
- Stable Conductivity: Uniform sheet resistance across surface; consistent electrochemical signals
- High Optical Transparency: ≥85% @550 nm, enables in-situ spectroelectrochemistry
- Excellent Chemical Resistance: Stable in aqueous electrolyte, organic solvents; easy cleaning
- High Flatness & Clean Surface: Low roughness, minimal background current
- Customizable: Cut-to-size, drilled, patterned/etched electrodes
Applications
- Electrochemical working electrodes (3-electrode cells)
- Cyclic Voltammetry (CV), chronoamperometry, impedance testing
- Spectroelectrochemistry & in-situ optical monitoring
- Photoelectrochemical cells & photocatalysis
- Biosensors, electrochromic devices, microfluidic chips
- Laboratory analytical & electrochemical research
Custom Services
- Custom dimensions & thickness
- ITO patterning/etching (electrode arrays, custom circuits)
- Drilling, notching, edge treatment
- Quartz/borosilicate substrate options
- Small batch & prototype orders supported
Why Choose Felix Glass
- Lab-grade quality, batch-to-batch consistency
- ISO 9001 certified, RoHS/REACH compliant
- Strict resistance & transmittance inspection
- Fast sampling & global shipping for academic/industrial labs
- Technical support for electrode design & cleaning protocol
FAQ
What is ITO glass used for in electrochemistry?
Transparent conductive working electrode for CV, spectroelectrochemistry, sensors & photoelectrochemistry.
Sheet resistance choice?
10–20 Ω/sq for general electrochemistry; lower resistance (5 Ω/sq) for high current.
Can I clean with ethanol/acetone?
Yes; stable in common lab solvents & dilute electrolytes.
Standard sizes?
20×20 mm, 25×75 mm, 50×50 mm; custom cutting available.
Quartz vs borosilicate substrate?
Quartz for UV/photoelectrochemistry; borosilicate for general use.
Do you offer patterned ITO?
Yes, custom etching/patterning for electrode arrays.
Request a Quote
Send size, sheet resistance, substrate (borosilicate/quartz) & patterning requirements. Get factory pricing & fast delivery for your electrochemical lab projects.
