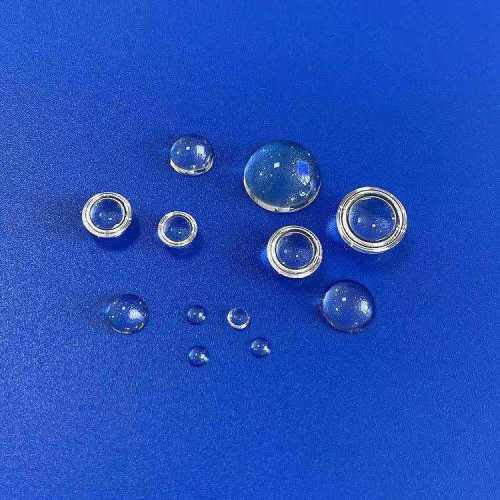

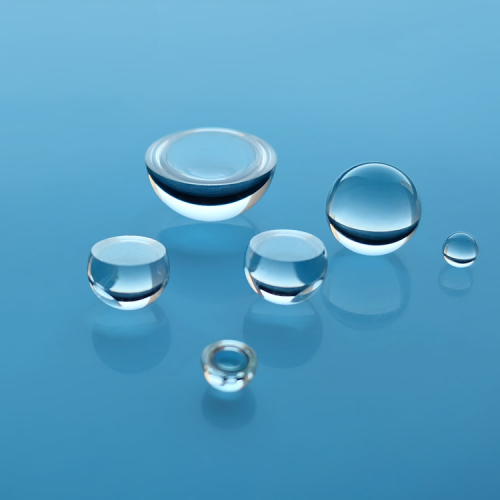

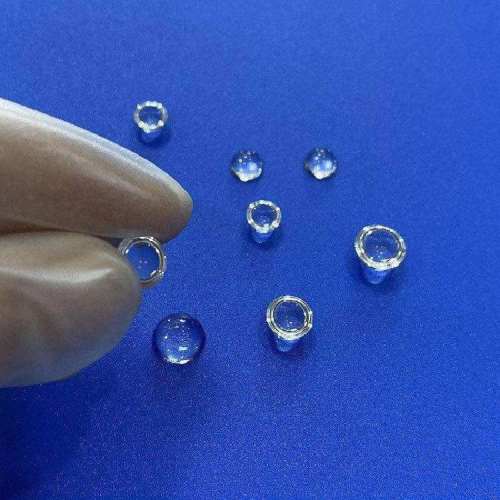

BK7 h-k9l hemispherical lens Half-Ball Lenses, 1mm-60mm Custom OEM Optical Glass Lenses
- Model
- FG--HB-LENS
Item specifics
- Material:
- High purity H-K9L, BK7 optical glass
- Coating:
- AR / IR / UV / AF
- Size
- Custom diameter range 1mm – 60mmv
- Diameter Range
- Custom Size
- Focal Length:
- Customizable
- Feature:
- High Transmittance, Low Distortion, Scratch Resistant, Custom Coating
- Structure
- Full spherical ball lens, precision ground hemispherical half-ball convex lens
Review
Description
BK7 & H-K9L Precision Ball Lenses and Hemispherical Half-Ball Lenses
As a professional BK7 glass ball lens manufacturer, Felix Glass provides high-precision full spherical ball lenses and hemispherical convex lenses made of premium BK7 and H-K9L optical glass. Custom diameter options cover miniature 1mm components up to 60mm large-format spherical optics, supporting full OEM customization for industrial optical systems.
Hemispherical lenses feature a precision-ground flat surface combined with a polished spherical optical surface, providing efficient light collection and beam shaping. This dual-surface structure delivers stable optical performance for a wide range of coupling, collimation and light-guiding applications.
Core Material Characteristics
1. BK7 Optical Glass
Standard industrial optical glass with excellent visible-spectrum transmittance and stable physical properties. Suitable for general visible-light optical assemblies, conventional sensors, and cost-effective industrial lighting optics.
2. H-K9L Optical Glass
Features high optical uniformity and excellent transmission characteristics for demanding optical applications. Preferred for high-precision fiber coupling, optical communication and sensitive optical sensing modules.
Key Product Features
1. Full-Range Customizable Dimensions
Available in diameters from 1mm ultra-miniature spherical lenses to 60mm large hemispherical optics. Custom edge grinding, edge blackening and multi-layer AR coating can be implemented according to project specifications.
2. Consistent Precision Optical Performance
Precision grinding and polishing support consistent optical performance for light collection, coupling and beam shaping applications. Uniform surface quality minimizes stray light and ensures reliable beam control.
3. Stable Compact Structure
Solid monolithic glass construction provides excellent structural stability, suitable for integration into compact optical assemblies operating under normal industrial conditions.
Typical Application Scenarios
- Optical fiber coupling and optical communication modules
- Laser beam delivery and laser collimation systems
- Industrial barcode scanners and optical encoders
- Infrared photoelectric sensors and precision detection modules
- Medical endoscope light-guiding components
- Instrumentation indicator lighting and miniaturized optical assemblies
OEM Manufacturing Capability
From optical glass blank preparation and precision sphere forming to polishing, coating, edge finishing and final optical inspection, every manufacturing process is completed under controlled quality procedures to help ensure consistent dimensional accuracy and optical performance.
We support prototype sampling, small-batch trial production and large-scale mass orders. All custom spherical and hemispherical lenses undergo strict visual and dimensional inspection to meet standardized industrial optical requirements.
Contact Felix Glass today for free technical consultation, custom optical lens solutions and competitive factory pricing. Our professional team supports your laser, semiconductor, vacuum and optical projects worldwide.
FAQ
1. What are ball lenses and hemispherical lenses used for?
Precision spherical ball lenses and hemispherical half-ball lenses are widely used for light collection, beam shaping, fiber coupling and collimation. Common industrial applications include optical communication modules, laser systems, barcode scanners and sensor optical assemblies.
2. What is the difference between BK7 and H-K9L ball lens material?
BK7 is widely used for general visible-light optical applications with balanced cost and performance. H-K9L offers excellent optical uniformity and stable transmission, commonly selected for higher-precision optical coupling and industrial optical systems.
3. Can you provide custom coating and edge treatment?
Yes. We offer customizable anti-reflection coatings, edge blackening, flat surface fine grinding and dimensional modification to match customer optical drawings and spectral requirements.
4. Are small sample orders supported?
We provide flexible sampling and low-MOQ trial orders for project verification, followed by scalable mass production support.
5. What quality standards do your spherical optics follow?
All lenses are processed and inspected under standardized manufacturing controls, ensuring consistent surface quality, dimensional tolerance and repeatable optical performance for OEM industrial integration.
