Standard FLIR Grade ZnS Dome & Window | LWIR Thermal Imaging Optics
- Model
- FG-IR Grade CVD ZnSe
Item specifics
- Material
- Standard FLIR Grade CVD ZnS
- Transmission Band
- 8–12μm LWIR Thermal Imaging
- Available Shapes

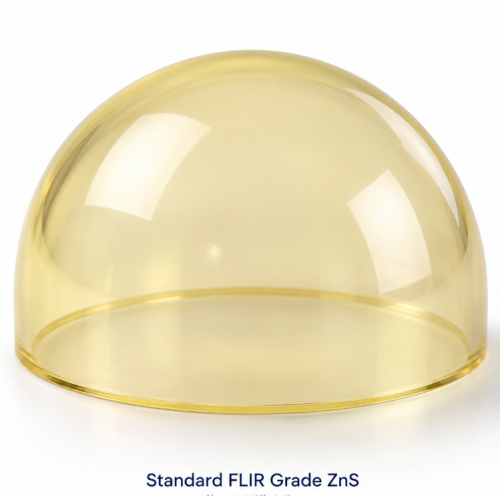

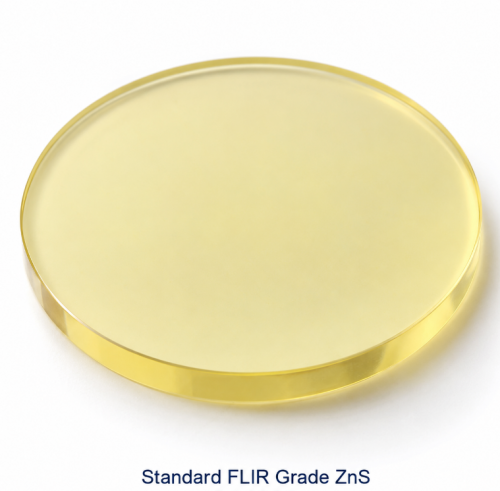

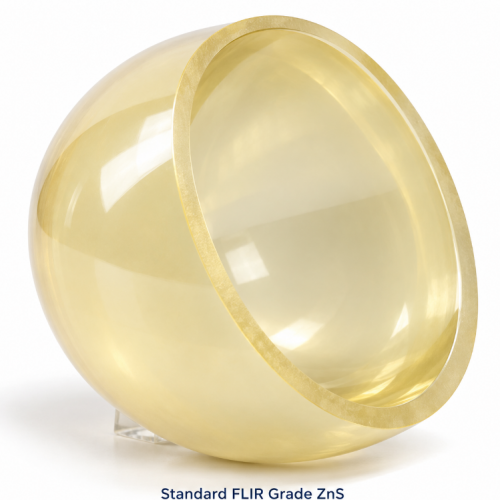

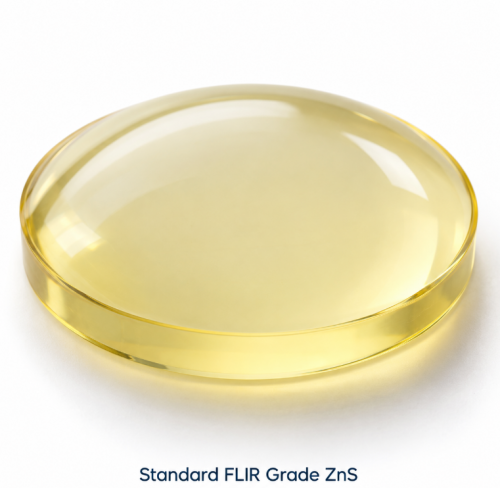

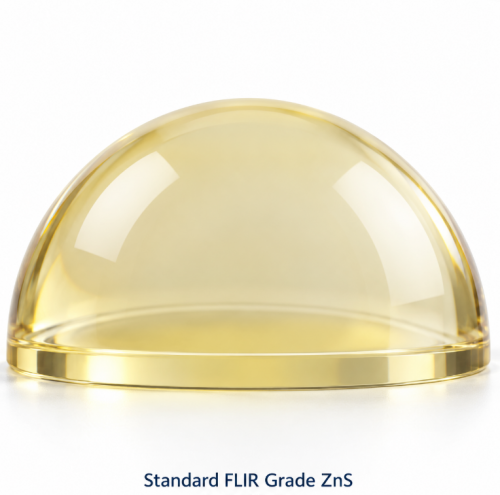

- Hemispherical Dome, Flat Window, Plano-Convex Lens
- Surface Quality
- 60-40 Scratch-Dig
- Surface Figure
- λ/4 @ 632.8nm
- Coating Option
- LWIR AR Coating, DLC Hard Coating
Review
Description
Standard FLIR Grade CVD ZnS – Cost-Effective LWIR Thermal Imaging Optics
Standard FLIR grade CVD ZnS (regular grade zinc sulfide) is the industry baseline material for 8–12μm long-wave infrared thermal imaging front optics. Produced via pure CVD deposition without HIP post-processing, this yellow-tinted polycrystalline ZnS delivers high mechanical toughness, excellent outdoor moisture stability, and flat LWIR transmission for FLIR thermal cameras, UAV turrets, vehicle-mounted gimbals and industrial thermography sensors. We manufacture FLIR ZnS hemispherical domes, flat windows and plano-convex lenses with tight dimensional tolerances and optional LWIR anti-reflection coatings. Check full engineering specs.
Material Definition: FLIR Grade vs Multispectral CLEARTRAN ZnS
FLIR grade is raw CVD-grown ZnS with no hot isostatic pressing treatment, optimized exclusively for LWIR thermal bands rather than visible+infrared multispectral applications. This grade avoids the extra cost of HIP processing while retaining high fracture resistance for exposed outdoor sensor front windows.
- Raw CVD polycrystalline zinc sulfide, no post-HIP treatment
- Primary transmission window: 7–13μm LWIR thermal imaging band
- Yellow-orange natural tint, opaque to visible light
- High mechanical strength for gimbal vibration & harsh outdoor deployment
- Strict batch separation from multispectral CLEARTRAN ZnS to avoid material mixing
Optical Performance Specifications (8–12μm LWIR Baseline)
All standard FLIR ZnS components follow fixed optical baselines to guarantee consistent thermal imaging clarity without ghosting or transmission drop-off.
- Working Wavelength: 8–12μm long-wave infrared
- Uncoated Bulk Transmission: ≥72% single substrate
- Dual-Side AR Coated Transmittance: ≥95% across full LWIR band
- Refractive Index: n=2.192 @10μm for optical path simulation
- Surface Quality: 60-40 scratch-dig (default industrial thermal camera grade)
- Surface Flatness/Figure: λ/4 @632.8nm full aperture
- Wavefront Uniformity: Low distortion for uncooled thermal sensor integration
Dimensional Machining Tolerances for Domes & Windows
Precision machining ensures perfect sealing fit inside EO/IR turret housings and thermal camera enclosures.
| Diameter Tolerance | ±0.06 mm |
|---|---|
| Thickness Tolerance | ±0.03 mm |
| Curvature Radius Tolerance | ±0.15% R |
| Parallelism (Flat Windows) | ≤1.2 arcmin |
| Edge Safety Chamfer | 0.1~0.3mm optional |
| Max Blank Size | Up to 220mm single CVD ZnS blank |
LWIR AR & DLC Hard Coating Options
Coating formulas are strictly tuned for FLIR thermal imaging bands, different from multispectral infrared coating recipes.
- Primary Coating: Broadband LWIR AR coating (8–14μm)
- Average Transmittance: ≥96% after dual-side coating
- Incidence Angle Compatibility: 0°–35° off-axis rays
- Durability Standard: MIL-C-48497 adhesion & humidity test passed
- Upgrade Option: DLC diamond-like carbon hard coating for scratch, dust and rain erosion resistance for outdoor field units
Mechanical & Environmental Operating Limits
These material limits are mandatory for system integration in UAV, vehicle-mounted and field surveillance hardware.
- Operating Temperature Range: -55℃ ~ +130℃
- Thermal Expansion Coefficient: 6.6×10⁻⁶ /K
- Knoop Hardness: 160 HK, high impact resistance
- Chemical Stability: Water-insoluble, stable under 95% RH high humidity
- Vibration Resistance: Suitable for airborne gimbal & mobile vehicle thermal cameras
Common Application Scenarios for FLIR Grade ZnS Optics
- Uncooled LWIR thermal camera front protective domes & windows
- UAV drone EO/IR sensor turret outer optical housing
- Vehicle-mounted thermal surveillance gimbal optics
- Industrial predictive maintenance thermal imager protective windows
- Border security outdoor thermal imaging sensor domes
Production Drawing Requirements & Inspection Certification
We require complete dimensional drawings before production; every finished part ships with full inspection documentation for engineering traceability.
- Required drawing data: OD, thickness, curvature, flange dimensions, sealing surface specs
- Coating specification: Coated surfaces, reserved uncoated sealing zones, LWIR band requirement
- Inspection report content: Raw material grade certificate, dimensional tolerance test, scratch-dig inspection, 8–12μm spectral transmission curve, coating adhesion test record
RFQ Workflow for Custom FLIR ZnS Domes & Windows
Send your technical drawings, application environment, coating requirements and order quantity. Our optical engineering team reviews your optical path design, confirms FLIR grade material suitability, optimizes tolerances and coating schemes, then issues a locked engineering quotation for prototype and mass production. Submit your RFQ now.
