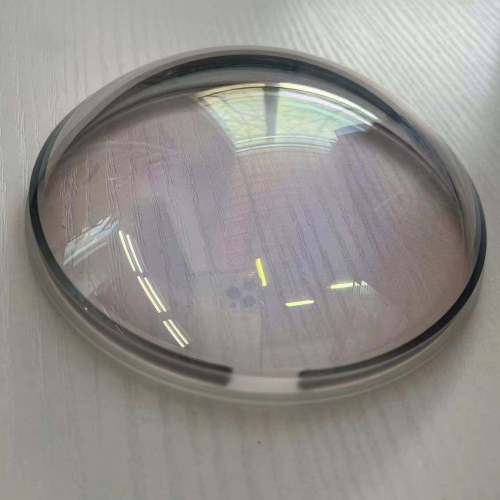

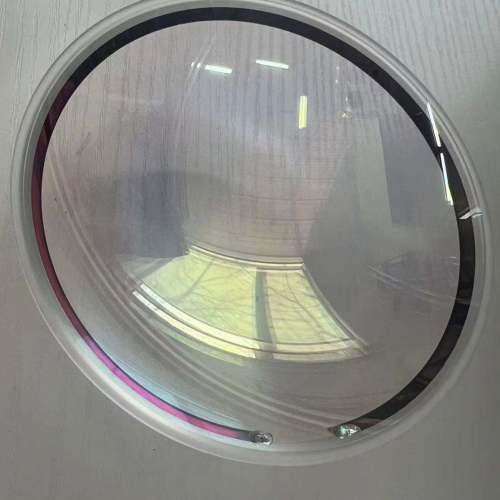

Sapphire Dome | Aerospace & Deep-Sea Grade Optical Dome



✅ Get Your Custom Quote in 24 Hours



Our aerospace and deep-sea grade sapphire domes are premium optical protective components crafted from high-purity single-crystal sapphire. Designed to withstand the most extreme working conditions, these hemispherical domes serve as the primary barrier for sensitive optical systems in satellites, missiles, aircraft, unmanned underwater vehicles (UUVs), and defense electro-optical/infrared (EO/IR) systems. They combine unmatched mechanical strength, pressure resistance, thermal stability, and optical clarity to ensure reliable performance in high-speed, high-temperature, high-pressure, and corrosive environments.



Material: High-Purity Single-Crystal Sapphire (Aerospace/Defense Grade)

Shape: Hemispherical / Full Spherical / Customized

Size Range: 5mm–500mm (Fully Customizable)

Available Coatings: IR AR / UV AR / Broadband Anti-Reflection Coating

Lead Time: 3–7 days for prototypes, 10–20 days for bulk orders



✅ Key Features



- Extreme Environmental Resistance: With Mohs 9 hardness, sapphire domes offer superior scratch and impact resistance against high-speed particles, debris, and thermal shock. They maintain structural integrity from -270°C to 1600°C and can be engineered to withstand deep-sea pressures exceeding 1000 bar.

- Broad-Spectrum Optical Performance: Featuring excellent transmittance from 150nm (UV) to 5.5μm (mid-IR), these domes support multi-band imaging, including visible light, near-infrared, and thermal infrared, making them ideal for multi-sensor systems.

- Precision Engineering & Low Distortion: Manufactured with tight dimensional tolerances (±0.01–0.03mm) and surface quality up to 10/5 scratch-dig, our domes ensure minimal optical distortion, preserving image clarity and sensor accuracy even under high-stress conditions.

- Customizable Configurations: Available in hemispherical, full spherical, or custom geometries with various edge treatments (straight, slanted, or flanged) to match your exact mounting requirements. Single or double-sided anti-reflection coatings are also available for specific wavelength bands.

- Long-Term Durability: Resistant to seawater corrosion, acid/alkali exposure, and UV degradation, sapphire domes provide years of reliable service without performance degradation, reducing maintenance costs and downtime.



✅ Why Choose Sapphire Over Other Materials?



Property	Sapphire Dome	Quartz Glass Dome	Plastic/Acrylic Dome
Mohs Hardness	9.0 (Ultra-hard, scratch-proof)	7.0 (Moderate scratch resistance)	3.0–4.0 (Easily scratched)
Operating Temperature	-270°C ~ 1600°C	-100°C ~ 1100°C	-40°C ~ 80°C
Pressure Resistance	Excellent (≥1000 bar deep-sea grade)	Good (≤300 bar)	Poor (≤10 bar)
Spectral Range	150nm–5.5μm (UV-Vis-Mid IR)	190nm–3.5μm (UV-Vis-NIR)	Limited to visible light
Corrosion Resistance	Excellent (resistant to seawater/chemicals)	Good (resistant to most chemicals)	Poor (prone to aging & chemical attack)
Service Life	Decades in harsh environments	3–5 years under high stress	Months to 1 year in outdoor/industrial use



✅ Common Applications



- Aerospace and defense EO/IR systems, including missile guidance and aircraft targeting pods

- Satellite and space-borne optical sensor housings, protecting against vacuum, radiation, and thermal cycling

- Deep-sea exploration equipment, such as ROV/AUV camera domes and subsea observation windows

- High-speed aircraft and UAV optical systems, withstanding aerodynamic heating and pressure

- Military surveillance and night vision systems operating in harsh field environments

- Industrial high-temperature furnaces, kilns, and combustion chamber viewports



All sapphire domes undergo rigorous quality control, including optical performance testing, dimensional accuracy checks, and environmental stability validation, to meet or exceed aerospace and defense standards. We support small-batch prototypes and large-volume production, with flexible lead times to align with your project milestones. Our team of optical engineers can also assist with material selection, coating design, and structural optimization to ensure your dome meets the exact specifications of your application.



If you have specific size, shape, or coating requirements, please share your drawings or technical specifications. We will provide a customized design solution and a free, detailed quote within 24 hours.



✅ Aerospace/Defense grade material

✅ Custom size, shape, and edge configurations

✅ Anti-reflection coatings for UV/Vis/IR bands

✅ High pressure and temperature resistance

✅ Strict quality control and inspection

✅ 24-hour technical support and quotation



Send your detailed requirements or design drawings today, and let’s build the perfect sapphire dome for your most demanding applications.
