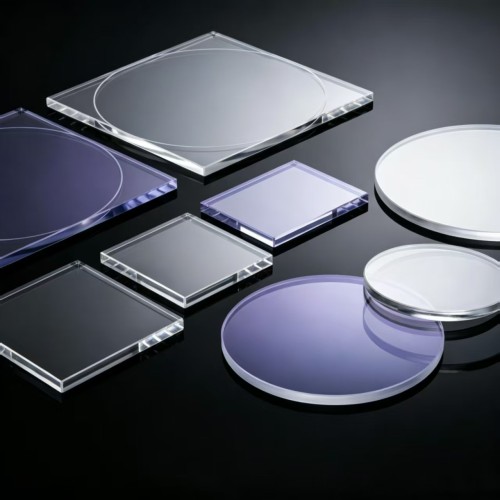

Quartz Glass Plate Manufacturer | Custom Fused Silica Plates for Optics, Semiconductor & UV Applications
- Model
- FG-QT-002
Item specifics
- Material
- High Purity Fused Silica
- SiO₂ Purity
- ≥99.99%
- Density
- 2.20 g/cm³
- Refractive Index
- 1.458 @ 587.6nm
- Thermal Expansion Coefficient
- 5.5 × 10⁻⁷ /°C
- Softening Point
- 1730°C
- Annealing Point
- 1180°C
- Continuous Working Temperature
- 1100°C
- Instant Temperature Resistance
- 1300°C
- Transmittance Range
- 185nm–3500nm
- Processing
- Cutting, Drilling, Slotting, Chamfering
- Surface Quality
- 60/40, 40/20, 20/10
- Optical Flatness
- λ/2, λ/4, λ/10
- Thickness Range
- Thickness Range
- Optional Coating
- AR, UV, IR Coating
Review
Description
Quartz Glass Plate Manufacturer | Custom Fused Silica Plates for Optics, Semiconductor & UV Applications
Felix Glass is a professional quartz glass plate manufacturer and supplier specializing in high-purity fused silica plates for optical, semiconductor, laboratory, UV and infrared applications. Made from 99.99% SiO₂ fused quartz, our quartz glass plates deliver outstanding UV & IR transmittance, ultra-low thermal expansion, strong thermal shock resistance and excellent chemical stability.
We supply JGS1, JGS2 and JGS3 grade quartz plates, available with precision cutting, drilling, polishing and optical coatings to satisfy strict industrial and scientific specifications.
Technical Specifications
| Property | Value |
|---|---|
| Material | High Purity Fused Silica |
| SiO₂ Purity | ≥99.99% |
| Density | 2.20 g/cm³ |
| Refractive Index | 1.458 @ 587.6nm |
| Thermal Expansion Coefficient | 5.5 × 10⁻⁷ /°C |
| Softening Point | 1730°C |
| Annealing Point | 1180°C |
| Continuous Working Temperature | 1100°C |
| Instant Temperature Resistance | 1300°C |
| Transmittance Range | 185nm–3500nm |
| Average Transmittance | >90% |
| Surface Quality | 60/40, 40/20, 20/10 |
| Optical Flatness | λ/2, λ/4, λ/10 |
| Thickness Range | 0.5mm–50mm |
| Processing | Cutting, Drilling, Slotting, Chamfering |
| Optional Coating | AR, UV, IR Coating |
Product Grades
JGS1 Deep UV Quartz Glass Plate
Wavelength Range: 185nm–2500nm
Suitable for:
- Excimer laser systems
- Deep UV sterilization equipment
- UV spectroscopy
- Semiconductor photolithography
JGS2 UV Quartz Glass Plate
Wavelength Range: 220nm–2500nm
Suitable for:
- Laboratory equipment
- Optical instruments
- UV curing systems
- Inspection devices
JGS3 Infrared Quartz Glass Plate
Wavelength Range: 260nm–3500nm
Suitable for:
- Infrared imaging systems
- Thermal sensing equipment
- IR optical components
- High-temperature observation windows
Key Features
- High Optical Purity: Premium fused silica with ultra-low impurities for consistent optical transmission.
- Outstanding Thermal Stability: Maintains precise dimensions under extreme temperatures and rapid thermal cycling.
- Broad UV & IR Transmission: Works for ultraviolet, visible and infrared optical systems.
- Superior Chemical Resistance: Resistant to most acids, alkalis and organic solvents, ideal for lab & industrial use.
- Precision Optical Machining: High flatness, tight tolerances and optical-grade polishing available.
Applications
- Semiconductor wafer processing equipment
- Photolithography systems
- UV sterilization equipment
- UV curing machines
- Optical windows & optical instruments
- Laser processing equipment
- Infrared imaging systems
- Thermal sensing devices
- Laboratory analytical instruments
- Medical sterilization equipment
- Aerospace optical components
- High-temperature furnace sight windows
Custom Manufacturing Services
Felix Glass provides full OEM & ODM services for quartz glass plates.
Customization options:
- Custom dimensions & thicknesses
- Precision cutting and shaping
- Drilling and slotting
- Edge grinding and chamfering
- Optical polishing
- AR anti-reflection coating
- UV coating
- Infrared coating
We support both prototype sampling and mass volume production.
Why Choose Felix Glass
- Professional quartz glass manufacturer
- ISO 9001 quality management system
- Advanced optical processing capabilities
- Stable bulk production capacity
- Fast sampling service
- Global export experience
- Onboard engineering technical support
- OEM and ODM manufacturing
FAQ
What is a quartz glass plate?
A quartz glass plate is a flat fused silica optical component featuring high purity, excellent light transmission and superior heat resistance.
What is the difference between quartz glass and ordinary glass?
Quartz glass delivers far higher temperature tolerance, lower thermal expansion and much better UV transmittance than conventional glass.
What is the maximum operating temperature?
Continuous working up to 1100°C, short instant exposure up to 1300°C.
Can quartz glass plates withstand thermal shock?
Yes. Its ultra-low thermal expansion coefficient gives excellent thermal shock resistance.
Can you manufacture custom quartz glass plates?
Yes. We customize dimensions, thickness, shape, machining and optical coatings per your drawings.
What industries commonly use quartz glass plates?
Semiconductor, optics, laboratory, UV systems, infrared imaging, aerospace and medical industries.
Which grade should I choose?
JGS1 for deep UV, JGS2 for general UV & lab use, JGS3 for infrared optical systems.
Do you provide OEM and ODM services?
Yes. We fabricate strictly according to customer drawings, samples and technical specs.
Are optical coatings available?
Yes. AR, UV and infrared coatings can be applied.
Do you supply test samples?
Yes. Samples are available for customer qualification before bulk production.
