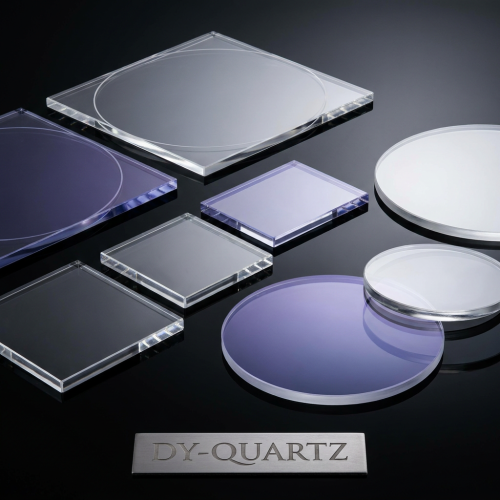

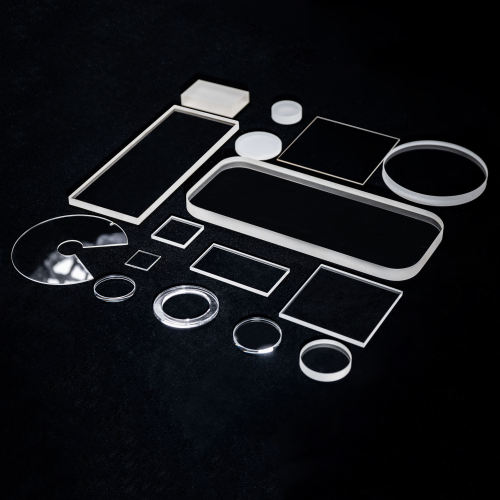

custom quartz plate - High Precision Fused Quartz Plate Manufacturer
- Model
- FG-QT-002
Item specifics
- Material
- High Purity Fused Silica
- SiO₂ Purity
- ≥99.99%
- Density
- 2.20 g/cm³
- Refractive Index
- 1.458 @ 587.6nm
- Thermal Expansion Coefficient
- 5.5 × 10⁻⁷ /°C
- Softening Point
- 1730°C
- Annealing Point
- 1180°C
- Continuous Working Temperature
- 1100°C
- Instant Temperature Resistance
- 1300°C
- Transmittance Range
- 185nm–3500nm
- Processing
- Cutting, Drilling, Slotting, Chamfering
- Surface Quality
- 60/40, 40/20, 20/10
- Optical Flatness
- λ/2, λ/4, λ/10
- Thickness Range
- Thickness Range
- Optional Coating
- AR, UV, IR Coating
Review
Description
Quartz Glass Plate Manufacturer | Custom Fused Silica Plates for Optics, Semiconductor & UV Applications
Felix Glass is a professional quartz glass plate manufacturer and supplier specializing in high-purity fused silica plates for optical, semiconductor, laboratory, UV and infrared applications. Manufactured from 99.99% SiO₂ fused quartz, our quartz glass plates offer exceptional UV and infrared transmittance, ultra-low thermal expansion, excellent thermal shock resistance and outstanding chemical stability. Available in JGS1, JGS2 and JGS3 grades, our quartz plates can be customized with precision cutting, drilling, polishing and optical coatings to meet demanding industrial and scientific requirements.
Technical Specifications
| Property | Value |
|---|---|
| Material | High Purity Fused Silica |
| SiO₂ Purity | ≥99.99% |
| Density | 2.20 g/cm³ |
| Refractive Index | 1.458 @ 587.6nm |
| Thermal Expansion Coefficient | 5.5 × 10⁻⁷ /°C |
| Softening Point | 1730°C |
| Annealing Point | 1180°C |
| Continuous Working Temperature | 1100°C |
| Instant Temperature Resistance | 1300°C |
| Transmittance Range | 185nm–3500nm |
| Average Transmittance | >90% |
| Surface Quality | 60/40, 40/20, 20/10 |
| Optical Flatness | λ/2, λ/4, λ/10 |
| Thickness Range | 0.5mm–50mm |
| Processing | Cutting, Drilling, Slotting, Chamfering |
| Optional Coating | AR, UV, IR Coating |
Product Types
JGS1 Deep UV Quartz Glass Plate
Wavelength Range: 185nm–2500nm
Suitable for:
- Excimer laser systems
- Deep UV sterilization equipment
- UV spectroscopy
- Semiconductor photolithography
JGS2 UV Quartz Glass Plate
Wavelength Range: 220nm–2500nm
Suitable for:
- Laboratory equipment
- Optical instruments
- UV curing systems
- Inspection devices
JGS3 Infrared Quartz Glass Plate
Wavelength Range: 260nm–3500nm
Suitable for:
- Infrared imaging systems
- Thermal sensing equipment
- IR optical components
- High-temperature observation windows
Key Features
High Optical Purity
Manufactured from premium fused silica with extremely low impurity levels, ensuring stable optical performance and excellent light transmission.
Outstanding Thermal Stability
Quartz glass maintains dimensional stability under extreme temperatures and rapid thermal cycling.
Excellent UV and Infrared Transmission
Suitable for ultraviolet, visible and infrared optical systems.
Superior Chemical Resistance
Resistant to most acids, alkalis and organic solvents, making it ideal for laboratory and industrial applications.
Precision Optical Processing
Available with high flatness, tight tolerances and optical-grade polishing.
Applications
- Semiconductor wafer processing equipment
- Photolithography systems
- UV sterilization equipment
- UV curing machines
- Optical windows and optical instruments
- Laser processing equipment
- Infrared imaging systems
- Thermal sensing devices
- Laboratory analytical instruments
- Medical sterilization equipment
- Aerospace optical components
- High-temperature furnace sight windows
Custom Manufacturing Services
Felix Glass provides complete OEM and ODM services for quartz glass plates.
Customization options include:
- Custom dimensions and thicknesses
- Precision cutting and shaping
- Drilling and slotting
- Edge grinding and chamfering
- Optical polishing
- AR anti-reflection coating
- UV coating
- Infrared coating
Both prototype orders and volume production are supported.
Why Choose Felix Glass
- Professional quartz glass manufacturer
- ISO 9001 quality management system
- Advanced optical processing capabilities
- Stable bulk production capacity
- Fast sampling service
- Global export experience
- Technical engineering support
- OEM and ODM manufacturing
FAQ
What is a quartz glass plate?
A quartz glass plate is a flat fused silica component with high purity, excellent optical transmission and exceptional heat resistance.
What is the difference between quartz glass and ordinary glass?
Quartz glass offers significantly higher temperature resistance, lower thermal expansion and better UV transmission than conventional glass.
What is the maximum operating temperature?
Continuous operation up to 1100°C and short-term exposure up to 1300°C.
Can quartz glass plates withstand thermal shock?
Yes. Their extremely low thermal expansion coefficient provides excellent thermal shock resistance.
Can you manufacture custom quartz glass plates?
Yes. We support custom dimensions, thicknesses, shapes, machining and coatings.
What industries commonly use quartz glass plates?
Semiconductor, optics, laboratory, UV systems, infrared imaging, aerospace and medical industries.
Which grade should I choose?
JGS1 for deep UV applications, JGS2 for general UV and laboratory applications, and JGS3 for infrared optical systems.
Do you provide OEM and ODM services?
Yes. We manufacture according to customer drawings, samples and specifications.
Are coatings available?
Yes. AR, UV and infrared coatings are available.
Do you provide samples?
Yes. Samples are available for qualification and testing before volume production.
