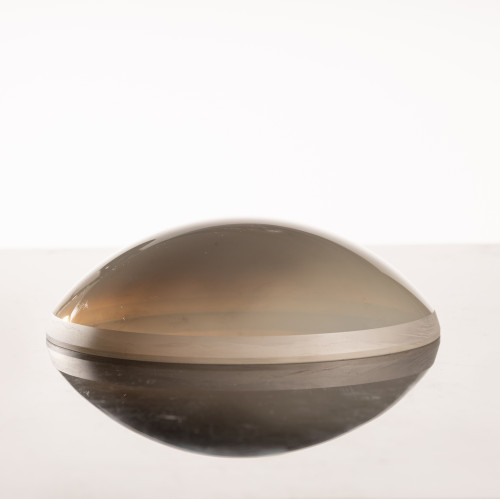

ZnSe ZnS Germanium Infrared Optical Dome Manufacturer | OEM IR Hemispherical Dome
- Model
- FG-IR-DOME
Item specifics
- Material
- CVD ZnSe, CVD ZnS, Germanium (Ge)
- Transmission Band
- ZnSe:0.5~16μm; ZnS:3~12μm; Ge:2~14μm
- Diameter Range
- 20mm ~ 150mm, custom sizes supported
- Optional Coating
- MWIR 3~5μm AR, LWIR 8~14μm AR, dual band IR AR coating
- MOQ
- 1pc prototype available
- Lead Time
- :5pcs; lead time:3~5 weeks
- Application
- LWIR thermal camera, CO2 laser, airborne IR detection, IR seeker sensor
Review
Description
ZnSe ZnS Germanium Infrared Optical Dome Manufacturer | OEM IR Hemispherical Dome
Felix Glass acts as a professional infrared optical component manufacturer, delivering comprehensive OEM and ODM solutions for custom infrared optical dome alongside diverse infrared optical windows and lenses. This custom IR optical dome serves as a tangible showcase of our full-spectrum infrared optical processing capability. Relying on mature single-point diamond turning, precision optical polishing, CVD substrate processing, vacuum IR anti-reflection coating and integrated flange machining technologies, our factory produces tailored ZnSe, ZnS and Germanium infrared domes for thermal imaging system integrators, defense & aerospace suppliers and infrared sensor manufacturers.
As an experienced infrared optical dome manufacturer, we adapt diameter, wall thickness, hemispherical profile, surface finish, coating spectrum and integrated flange pattern fully in accordance with client drawings and project specifications. Clients looking for custom IR dome can count on our flexible manufacturing system for small batch samples and large volume repeated bulk orders.
Send Inquiry
Core Optical Processing Capabilities
All finished infrared optical domes are manufactured within our in-house workshops, implementing complete infrared optical processing workflows:
- Single point diamond turning & CNC profile machining for hemispherical IR dome shaping
- Optical surface grinding and high-precision polishing for required surface figure & roughness
- Integrated flange machining and bolt circle pattern fabrication for direct bolt-on assembly
- Vacuum deposited IR broadband / single band anti-reflection coating
- FEA stress simulation and optional hydrostatic pressure test for pressure-bearing dome designs
- Interferometer, spectrophotometer and AOI full optical inspection before shipment
Technical Specifications
| Item | Specification Description |
|---|---|
| Base Material | CVD ZnSe, CVD ZnS, Germanium (Ge) |
| Transmission Band | ZnSe:0.5~16μm; ZnS:3~12μm; Ge:2~14μm |
| Diameter Range | 20mm ~ 150mm, custom sizes supported |
| Surface Figure | λ/2, λ/4, λ/8 @632.8nm, customizable per drawing |
| Surface Roughness | Ra 0.5nm ~ 5nm, customer specified |
| Optional Coating | MWIR 3~5μm AR, LWIR 8~14μm AR, dual band IR AR coating |
| Dome Structure | Standard hemispherical dome, one-piece integrated flanged dome |
| Mechanical Service | FEA stress analysis, hydrostatic pressure test & certification optional |
| MOQ & Lead Time | 1pc prototype available; mass MOQ:5pcs; lead time:3~5 weeks |
| Application Fields | LWIR thermal camera, CO2 laser, airborne IR detection, IR seeker sensor |
Customization Range
1. Custom dome diameter, wall thickness and hemispherical profile according to your engineering drawing
2. Substrate material selection: CVD ZnSe, CVD ZnS or Germanium for different infrared bands
3. Custom IR anti-reflection coating tuned for MWIR 3~5μm or LWIR 8~14μm target wavelength
4. One-piece integrated flange, customized bolt hole layout and mounting interface
5. Adjustable optical precision: surface figure, surface roughness and dimensional tolerance
6. Optional FEA simulation and hydrostatic pressure test report for pressure-bearing applications
7. Flexible MOQ accommodates prototype sampling and mass production framework orders
Product Strengths
1. Optimized Infrared Transmission Performance
Our CVD grade ZnSe, ZnS and Germanium substrates deliver high transmittance across target infrared bands. Custom IR AR coating cuts surface reflection loss and maximizes signal throughput for thermal imaging and laser systems.
2. High Precision Optical Surface Quality
Single point diamond turning and advanced polishing achieve excellent surface figure and low surface roughness, minimizing scattering and distortion for high-performance infrared detection systems.
3. Material Options For Different Working Environments
ZnSe offers superior LWIR & CO2 laser transmission. ZnS provides outstanding hardness and rain/particle erosion resistance for harsh airborne or outdoor environments. Germanium works well for both MWIR and LWIR night vision applications.
4. Integrated Flange Design Simplifies System Assembly
One-piece flanged infrared dome eliminates separate mounting adapters. Custom bolt circle pattern allows direct bolt-on installation, saving assembly cost and improving structural stability.
5. Complete Optical & Mechanical QC System
Every dome undergoes interferometer surface test, spectrophotometer transmission test and AOI defect inspection. FEA and hydrostatic test documents can be supplied for high-reliability aerospace and defense projects.
Standard Manufacturing Workflow
1. CVD Infrared Substrate Raw Material Selection & Initial Inspection
2. CNC Machining & Single Point Diamond Turning for Hemispherical Dome Forming
3. Optical Grinding & Precision Polishing to Meet Surface Figure & Roughness Requirement
4. Integrated Flange Machining & Bolt Hole Pattern Fabrication
5. Vacuum IR Anti-Reflection Coating Deposition
6. Optical Performance Testing: Interferometer & Spectrophotometer Measurement
7. Optional FEA Stress Simulation & Hydrostatic Pressure Test
8. Full AOI Defect Inspection & Dimensional Verification
9. Cleanroom Cleaning, Dust-free Packaging & Consolidated Shipment
Available Download Documents
- ZnSe / ZnS / Germanium substrate material datasheet
- IR anti-reflection coating spectral curve document
- Dome engineering drawing template
- OEM cooperation specification document. Batch optical test reports and pressure test certificates can be provided upon request for large orders.
B2B Application Scenarios
Long wave infrared thermal imaging camera systems
CO₂ laser transmission optical assemblies
Airborne infrared target detection & tracking equipment
IR sensor protection for surveillance & night vision systems
Guided optical seeker protective windows
Harsh environment infrared optical detection devices
Our Factory Advantages
- Production executed under ISO9001 quality management system
- Integrated cleanroom workshops covering diamond turning, optical polishing, vacuum IR coating
- Complete optical metrology lab: interferometer, spectrophotometer and AOI inspection system
- Professional optical engineering team to evaluate drawings and perform FEA structural simulation
- Full production records reserved to realize batch quality traceability
- Flexible MOQ to satisfy prototype sampling and mass procurement demands
FAQ
1. What is the difference between ZnSe and ZnS infrared dome?
ZnSe delivers excellent transmittance for LWIR and CO₂ laser applications. ZnS has higher mechanical hardness and better rain/particle erosion resistance for harsh airborne and outdoor environments.
2. Can you deposit IR anti-reflection coating on ZnSe, ZnS and Germanium domes?
Yes. We provide custom single-band or dual-band IR AR coating tuned for your target wavelength such as MWIR 3~5μm or LWIR 8~14μm.
3. Can you fabricate one-piece integrated flanged infrared dome?
Absolutely. We can machine integrated flange and custom bolt circle pattern for direct bolt-on assembly, which simplifies system integration.
4. What is your MOQ for OEM infrared dome orders?
We accept 1pc prototype for trial testing, flexible MOQ for formal mass production orders.
5. Can you offer FEA stress analysis and hydrostatic pressure test reports?
Yes, FEA simulation is available for pressure-bearing dome designs. Hydrostatic pressure test and official certification can be arranged for large projects.
6. What optical test documents can you provide with shipment?
We can supply interferometer surface test report, spectral transmission curve and dimensional inspection documents upon request for bulk orders.
