ZnSe ZnS Infrared Optical Dome | IR Hemisphere Dome for Thermal Imaging
- Model
- FG-IR DOME
Item specifics
- Material
- ZnSe, CVD ZnS, Multispectral ZnS
- Wavelength Range
- 3 ~14μm Infrared Band
- Surface Quality
- 20/10 ~ 80/50 (Customizable)
- Coating Option
- AR, DLC, Anti-corrosion coating
- Service Type
- OEM & ODM Custom Machining
- Diameter Range
- 8mm ~ 350mm Custom Size
- Application
- Thermal Imaging, Night Vision, IR Sensor
- Tolerance
- ±0.01mm ~ ±0.1mm
Review
Description

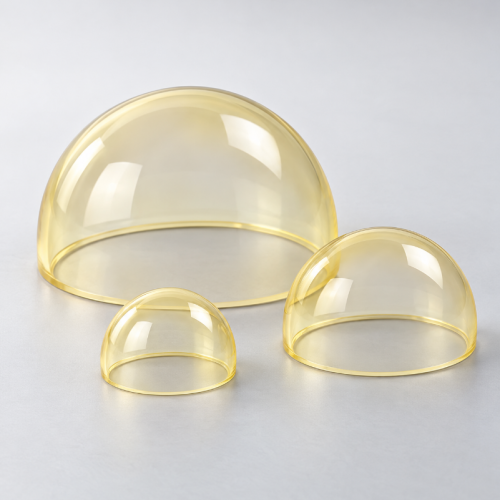

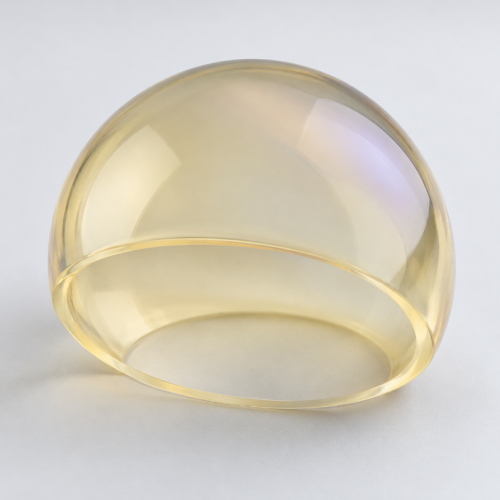

Custom CVD ZnS Infrared Optical Dome
8‑14μm LWIR Hemispherical Dome For Thermal Imaging & IR Detection
Felix Glass manufactures high-performance CVD ZnS infrared optical domes, including standard CVD ZnS and multi-spectral CVD ZnS hemispherical protective domes. Custom machined to your drawings, precision optical polishing, optional 8-14μm IR anti-reflection coating. We support prototype validation and large-volume OEM orders for UAV, ground security and marine thermal camera systems.
Submit Drawing & Get RFQ View Technical Datasheet
IR‑AR Coating | Prototype & OEM Available
Your Infrared Optics Engineering Contact
Direct communication with Felix Glass engineering and sales team for custom CVD ZnS infrared dome projects.
James Fu
International Sales Director
James supports global OEM customers with custom CVD ZnS infrared optical domes for thermal imaging, FLIR, UAV payloads and marine infrared detection systems.
Our engineering team provides full support: drawing review, material selection, FEA assessment, coating recommendation, prototype development, and mass production with full optical inspection reports.
CVD ZnS Infrared Dome Product Solutions
Custom hemispherical infrared protective domes manufactured for thermal imaging and infrared camera systems.

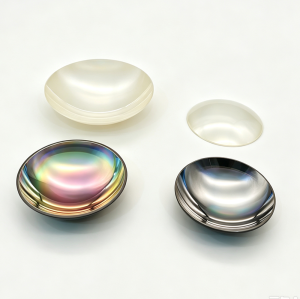

Uncoated CVD ZnS Dome
Precision polished bare CVD-ZnS hemispherical dome for infrared protective applications.
IR‑AR Coated ZnS Dome
8‑14μm long-wave infrared anti-reflection coated ZnS dome for higher IR transmittance & sharper thermal image.
Custom‑Size ZnS Dome
Custom outer diameter, wall thickness and edge bevel processed per your engineering drawings.

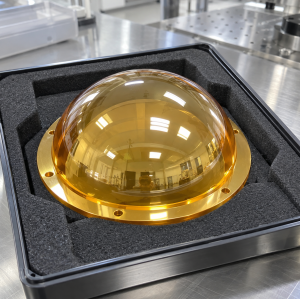

ZnSe Infrared Dome Option
Zinc selenide dome alternative with excellent infrared transmission for low‑stress IR optical systems.
High‑Grade Polished ZnS Dome
Tight scratch-dig surface quality for high-performance thermal imaging payloads.
Multi-Spectral CVD ZnS Dome
Multi-spectral ZnS dome transmits both visible and infrared light for multi-band optical systems.
CVD ZnS Infrared Dome Technical Datasheet
Custom CVD-ZnS hemispherical infrared dome windows manufactured against customer drawings for LWIR thermal imaging systems.
| Engineering Parameter | Manufacturing Capability |
|---|---|
| Primary Material | Standard CVD ZnS / Multi-spectral CVD ZnS |
| Alternative Substrate | CVD ZnSe, Germanium upon request |
| Geometry | Hemispherical / half‑sphere infrared dome window |
| Operating Waveband | Long‑Wave Infrared 8‑14 μm |
| Customizable Parameters | Outer diameter, wall thickness, edge bevel, radius of curvature |
| Coating Option | IR anti‑reflection coating for 8‑14μm / uncoated |
| Surface Finish | Precision optical polishing |
| Surface Quality | 60/40, 40/20 scratch & dig specifications available |
| MOQ | 1 pcs prototype available, mass‑production support |
| Lead Time | Sample: 10‑16 working days; Bulk: 25‑40 working days |
| Production Mode | Prototype Samples to OEM Mass‑Production |
Key Advantages of CVD ZnS Infrared Optical Domes
Mechanical and optical strengths making CVD ZnS the preferred protective dome for LWIR thermal imaging devices.
Excellent 8‑14μm LWIR Transmission
CVD-ZnS delivers stable long-wave infrared transmittance, well-suited for thermal camera detection channels.
High Mechanical Hardness & Ruggedness
Hemispherical ZnS domes provide impact and abrasion resistance for field-deployed infrared payloads, outdoor & marine use.
IR‑AR Coating Performance Boost
8‑14μm anti-reflection coating reduces surface reflection and improves thermal-image signal-to-noise performance.

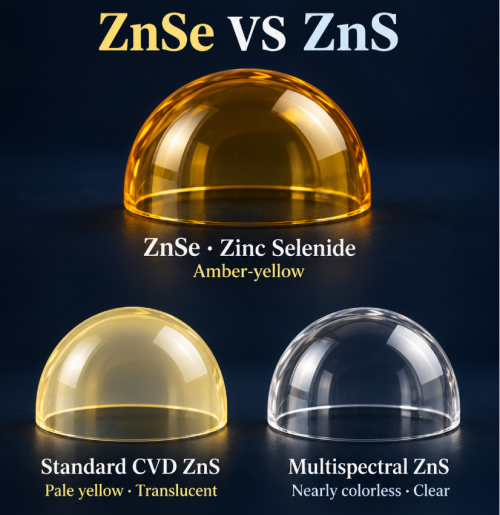

CVD ZnS vs ZnSe vs Germanium Infrared Substrate Comparison
Select between ZnS, ZnSe and Germanium based on mechanical ruggedness and application environment.
| Engineering Requirement | CVD ZnS | CVD ZnSe | Germanium |
|---|---|---|---|
| 8‑14μm IR Transmission | ★★★★ Very Good | ★★★★★ Excellent | ★★★★ Very Good |
| Mechanical Hardness | ★★★★★ High | ★★ Low‑Medium | ★★★ Medium |
| Abrasion / Impact Resistance | High, ideal for external exposed dome | Limited, better for internal optics | Moderate, indoor IR systems |
| IR‑AR Coating Compatibility | Fully Supported | Fully Supported | Fully Supported |
| Typical Deployment | External protective dome for FLIR / thermal imager | Low‑stress internal infrared optical components | Indoor thermal detection & optical sensors |
How Engineers Spec Custom CVD ZnS Infrared Domes
Felix Glass IR‑optics engineers evaluate operating conditions to define dome geometry, material and coating requirements.
Deployment Environment
External exposed vs internal installation, shock, dust, salt fog and weather exposure define substrate choice.
Optical Requirements
LWIR waveband, transmittance target, need for 8‑14μm IR anti‑reflection coating.
Mechanical Geometry
Outer diameter, wall thickness, radius‑of‑curvature, edge‑bevel and mounting interface.
Production Requirements
Surface scratch‑dig specs, prototype / batch quantity, inspection document expectations.
CVD ZnS Infrared Dome Application Solutions
Hemispherical ZnS protective domes for thermal imaging and infrared surveillance equipment.
FLIR Thermal Imaging Camera
Solution: IR‑AR coated CVD ZnS hemispherical dome
Application: Forward‑looking infrared thermal‑imaging camera payloads.
Benefit: LWIR transmission plus mechanical protection for IR detector optics.
UAV Infrared Surveillance Payload
Solution: Custom‑size CVD‑ZnS protective dome
Application: Drone‑mounted thermal infrared monitoring systems.
Benefit: Light‑weight dome with impact‑resistance for airborne IR equipment.
Marine & Ground IR Surveillance
Solution: Precision polished CVD ZnS hemispherical dome
Application: Offshore and outdoor fixed thermal security‑monitoring cameras.
Benefit: Salt fog & environmental shielding while preserving long‑wave infrared performance.
CVD ZnS Dome Engineering Project Cases
Reference application scenarios. Final specifications are confirmed against customer drawings and field operating conditions.
FLIR Camera ZnS Protective Dome Project
Customer Requirement: External hemispherical protective dome for field thermal‑imaging FLIR unit working in 8‑14μm band.
Challenge: Dome must survive outdoor mechanical exposure without degrading IR imaging quality.
Solution: CVD‑ZnS dome with 8‑14μm IR‑AR vacuum coating, strict scratch‑dig surface specs.
Engineering objective: Maximize LWIR transmittance and provide rugged external optical protection.
Discuss Your Similar ProjectUAV Thermal Payload ZnS Dome Project
Customer Requirement: Compact custom‑wall‑thickness ZnS dome for drone‑mounted infrared surveillance payload.
Challenge: Balance weight limitation, mechanical robustness and infrared optical performance.
Solution: Custom‑machined thin‑wall ZnS hemispherical dome with targeted edge‑bevel for assembly.
Engineering objective: Meet airborne size‑weight constraints while maintaining dome mechanical reliability.
Get A QuoteOffshore Marine IR Monitoring ZnS Dome Project
Customer Requirement: Hemispherical dome for offshore thermal monitoring camera with salt spray exposure.
Challenge: Long-term saltwater, moisture and vibration exposure with stable thermal imaging readout.
Solution: Precision-polished CVD ZnS dome with IR-AR coating, controlled tolerance for sealing assembly.
Engineering objective: Reliable long-term marine field deployment for perimeter infrared monitoring.
Send Drawing For ReviewCVD ZnS Dome Window Manufacturing Capability
Full‑chain CVD‑ZnS dome processing: raw blank inspection, CNC grinding, polishing, IR‑AR coating and final optical QC.
ZnS Blank Incoming Inspection
Screen CVD‑ZnS raw blanks for inclusions and material defects prior to dome processing.
Special‑Fixture CNC Grinding
Custom fixture setup for hemispherical geometry to control radius‑of‑curvature and wall‑thickness accuracy.
Optical Fine Polishing
High‑grade optical polishing to achieve required scratch‑dig surface quality for IR imaging paths.
LWIR Anti‑Reflection Coating
Vacuum‑deposited IR‑AR coating optimized for 8‑14μm long‑wave infrared thermal‑imaging band.
Multi‑Parameter Final QC
Dimensional metrology, surface defect check and coating spectrum verification before product shipment.
CVD ZnS Dome Production Workflow
Controlled manufacturing workflow supporting prototype validation and long‑term OEM mass‑production for infrared dome projects.
Drawing Engineering Review
Evaluate dome geometry, surface specs, waveband and determine CVD ZnS / ZnSe / Germanium material selection.
Raw Blank Screening
Inspect CVD‑ZnS blanks for internal defects before dome‑shape machining.
CNC Machining & Polishing
Grind hemispherical near‑net‑shape then fine‑polish inner and outer optical surfaces.
Coating & Multi‑Stage QC
Optional IR‑AR vacuum coating, dimensional, surface and coating‑performance inspection before packing.
CVD ZnS Dome Quality Assurance
Multi‑step quality control for custom hemispherical infrared domes for thermal‑imaging OEM customers.
Dimensional Metrology
Verify outer diameter, wall thickness, curvature radius and edge‑bevel against drawing tolerances.
Optical Surface Inspection
Check scratch‑dig specifications for inner and outer dome optical surfaces.
Coating Spectrum Verification
For coated domes: test IR‑AR coating spectral performance within 8‑14μm target band.
Specialized Protective Packing
Individual foam‑and‑tissue protective packing to avoid dome surface scratches during transit.
Certification & Technical Documents
Felix Glass provides supporting documents for international industrial OEM customers.
Specification Confirmation
Available When Agreed
Available When Agreed
CVD ZnS Spec Sheet
Available When Agreed
Frequently Asked Questions About CVD ZnS Infrared Optical Domes
Can you manufacture custom CVD ZnS hemispherical dome windows per engineering drawings?
Yes. Felix Glass produces fully-custom CVD ZnS hemispherical infrared domes, custom outer diameter, wall thickness, curvature and edge-bevel strictly based on your engineering drawing.
What is the operating infrared band for CVD ZnS dome?
CVD-ZnS domes are optimized for long-wave infrared 8‑14 μm thermal imaging applications. Multi-spectral ZnS supports both visible + IR transmission.
What coating options are available for CVD ZnS infrared dome?
We provide vacuum-deposited IR anti-reflection coating tuned for 8‑14μm LWIR band. Uncoated domes are also available upon request.
CVD ZnS vs ZnSe vs Germanium dome: which one should I select?
Choose CVD ZnS for externally mounted protective domes for higher mechanical hardness and impact resistance. ZnSe delivers superior IR transmission but softer, recommended for internal low-stress optics. Germanium works well for indoor LWIR sensors.
Do you support prototype samples and OEM mass production?
Yes, single-piece prototype sampling is supported, and we can scale up to stable volume OEM orders for infrared-system projects.
What drawing formats do you accept for RFQ?
We accept PDF, DXF, DWG and STEP engineering drawing files for technical evaluation and formal RFQ quotation.
Can CVD ZnS dome withstand salt fog and marine environment?
CVD ZnS has excellent chemical stability. For offshore marine deployment, we can recommend optimized edge treatment and coating to resist salt spray and humidity.
Related Infrared Optics Solutions
Explore complementary infrared optical components for your thermal‑imaging system design.
Request Custom CVD ZnS Infrared Dome Engineering Evaluation
Submit your drawing, dimension specs or application requirements. Our infrared optics engineers will evaluate and provide suitable CVD ZnS hemispherical dome solutions with formal pricing.
