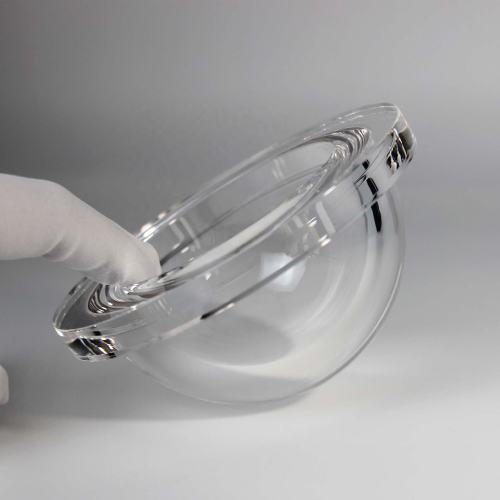

Fused Silica Subsea Dome Port | Flanged Underwater Optical Dome for Deep Sea Camera
- Model
- FG-Custom
Item specifics
- Material
- Fused Silica (UV Fused Silica)
- Structure

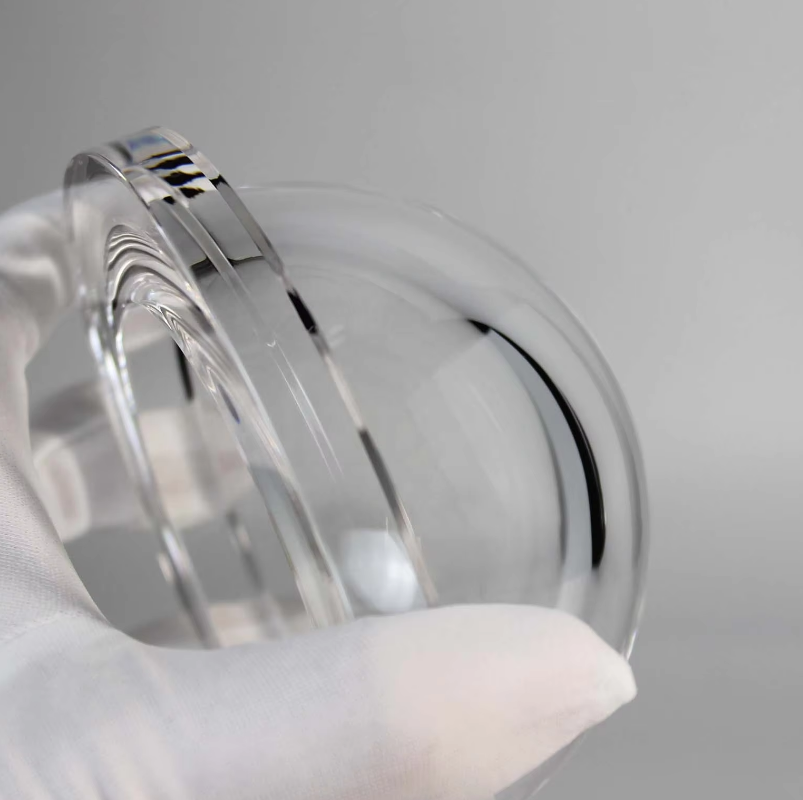

- Hemispherical dome with stepped mounting flange
- Spectral Transmission
- 185 nm ~ 2500 nm
- Coating Option
- AR / BBAR coating
- Application
- Deep sea camera, ROV, underwater vision, marine observation
- Feature
- High hydrostatic pressure resistance, salt spray corrosion resistant, low bubble & inclusion
- Custom Service
- Custom diameter, wall thickness, coating specification
Review
Description

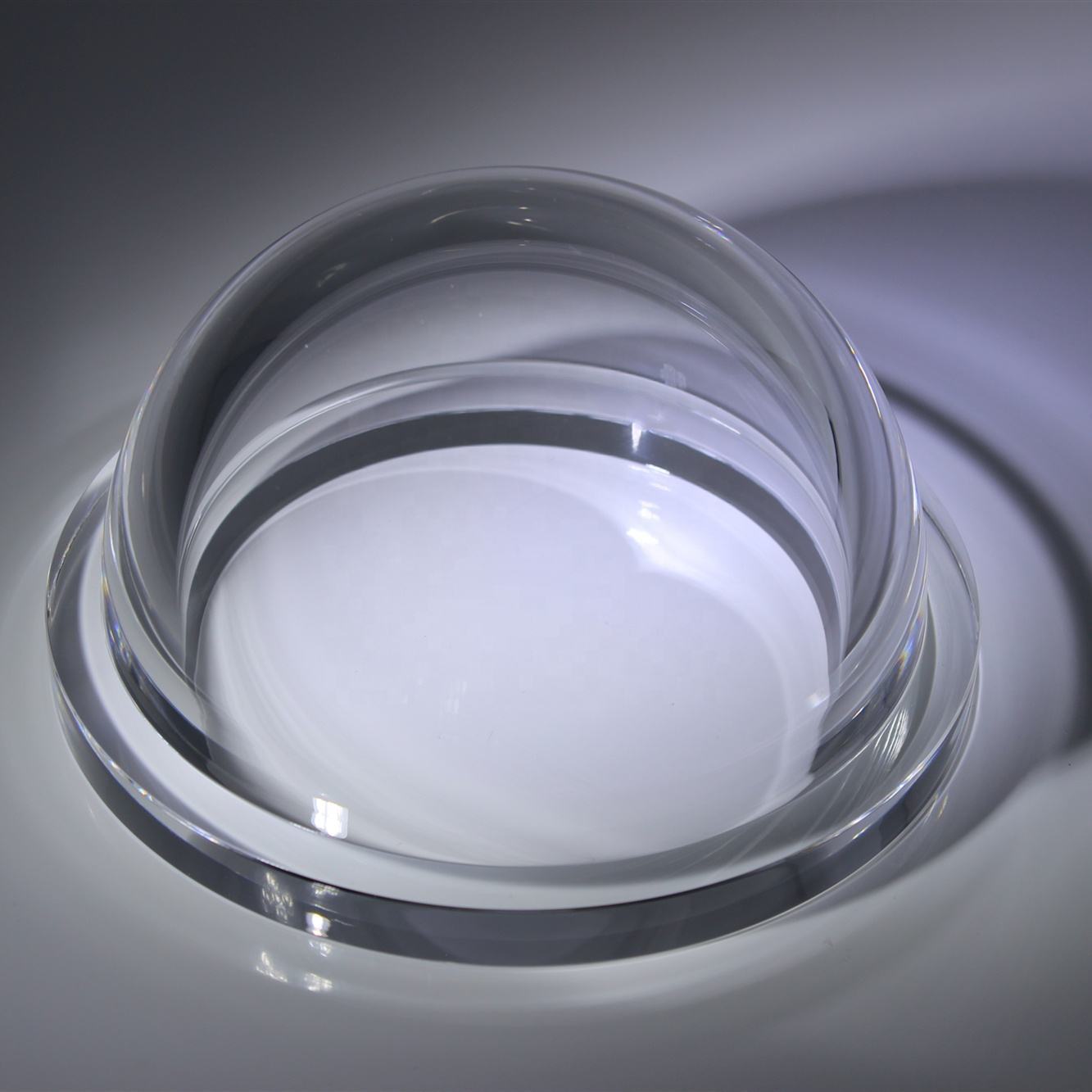

Custom optical dome ports for underwater cameras, ROVs and marine observation systems. Felix Glass supplies custom fused silica underwater dome ports with an integrated mounting flange. The curved optical surface and stepped flange can be manufactured to your drawing, with dimensions, optical finish and coating requirements tailored to your camera housing and imaging system. From prototype evaluation to repeat production, define the dome geometry and mounting interface together to achieve the optical performance and mechanical fit your project requires. A dome port provides a curved optical interface between the surrounding water and the camera housing. Its performance depends on dome curvature, wall thickness, surface quality and the position of the camera lens relative to the dome. Lens alignment and entrance-pupil position should be considered during system design, particularly for wide-angle imaging. For subsea use, the dome, flange, supporting seat, retaining mechanism and seals must be considered as a complete assembly. A flange helps define the mounting interface, but does not independently establish a pressure rating. Pressure qualification: Please provide your maximum operating depth, pressure-cycle requirements and housing drawing. Suitability for repeated deep-water operation must be confirmed through engineering assessment and an agreed pressure-test programme for the assembled design. Optional anti-reflection coatings can be tailored to the camera's operating wavelength band. Identify the outer water-facing surface and inner air-facing surface when specifying coatings, as their optical interfaces differ. For an exposed outer coating, include immersion duration, cleaning method and durability requirements in the RFQ. Fused silica is an option for UV and visible optical systems, but material transmission alone does not determine underwater imaging range. Water conditions, illumination, working distance and detector response also influence system performance. Send your PDF drawing and STEP model for a manufacturing review. Specify critical optical zones separately from mounting and non-optical surfaces so that inspection requirements match the function of each area. A depth rating cannot be assigned from the material name or outer diameter alone. Provide the complete dome and housing geometry, operating conditions and required service cycles for assessment. Any depth claim must be supported by qualification of the relevant assembly. The 89 mm dimension is a reference configuration. Please confirm the dimension definition, complete drawing and quantity with Felix Glass. Stock availability and lead time are confirmed in the quotation. Custom dimensions can be reviewed against your drawing, including dome curvature, wall thickness, flange diameter and seating geometry. Final manufacturability is confirmed after drawing review. The product described is the optical dome component. Mounts, O-rings, retainers and assembly services are separate requirements and are included only if listed in the quotation. Please send the drawing, material grade, quantity, optical requirements, operating depth, seal and mounting details, coating specification, delivery destination and requested schedule. Share your design with Felix Glass to review the optical dome, flange geometry and manufacturing requirements. Dongguan Felix Glass Co., Ltd.Fused Silica Subsea Dome Port with Mounting Flange

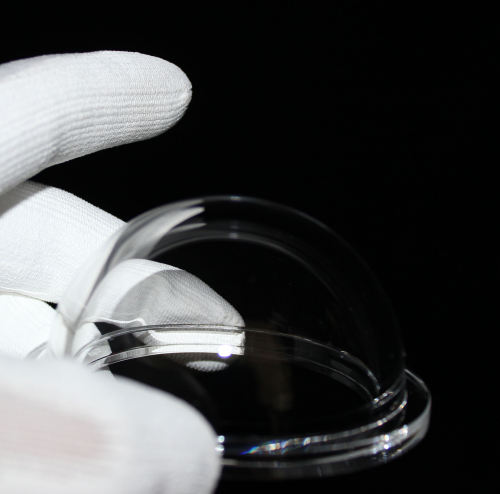

Optical Clarity for Underwater Imaging
Product Specifications

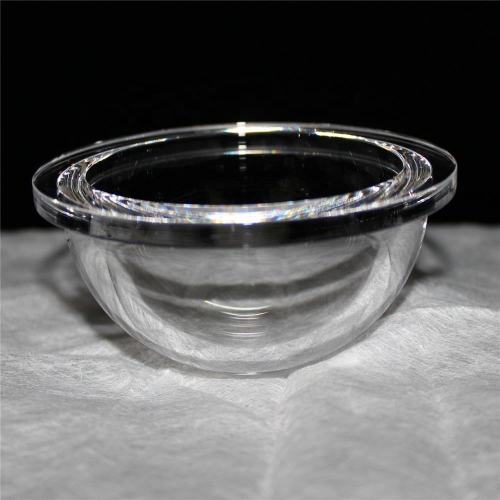

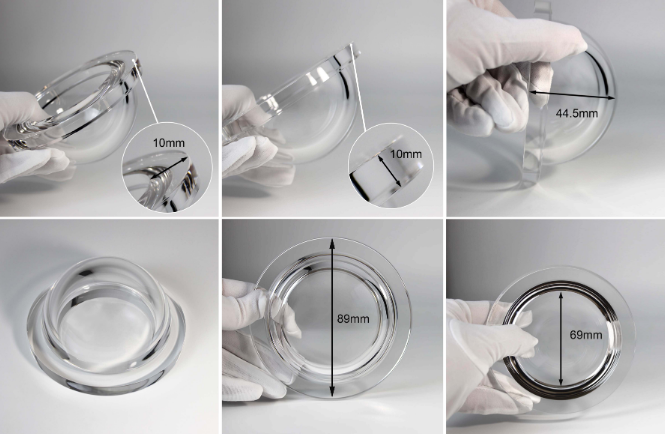

Product Fused silica subsea dome port with mounting flange Material Optical-grade fused silica; UV-grade material subject to project requirements and availability Structure Curved optical dome with integrated stepped flange; dome angle and profile per approved drawing Outer Diameter 89 mm reference configuration; confirm whether this denotes the flange diameter or optical dome diameter. Custom dimensions available. Wall Thickness / Height Custom; determined by optical geometry, mounting design and mechanical requirements Flange and Seal Interface Flange diameter, thickness, seating surfaces and sealing arrangement per agreed drawing Spectral Requirements UV, visible and near-infrared applications. A requested 185–2500 nm band requires material-grade, thickness and coating review; uniform transmission across this range is not implied. Coating Options Uncoated, AR or BBAR; specify coated surfaces, wavelength band, angle of incidence and transmission target Optical Quality Scratch-dig, surface figure, clear aperture and dimensional tolerances to be agreed before manufacture Operating Depth Project-specific; no standard depth rating is stated for this reference configuration Applications Underwater camera housings, ROV/AUV imaging, marine observation and subsea optical instruments Supply Scope Optical dome component; mounts, retaining hardware, seals and testing included only when expressly quoted Designed Around Your Housing and Operating Depth
AR and BBAR Coating Options

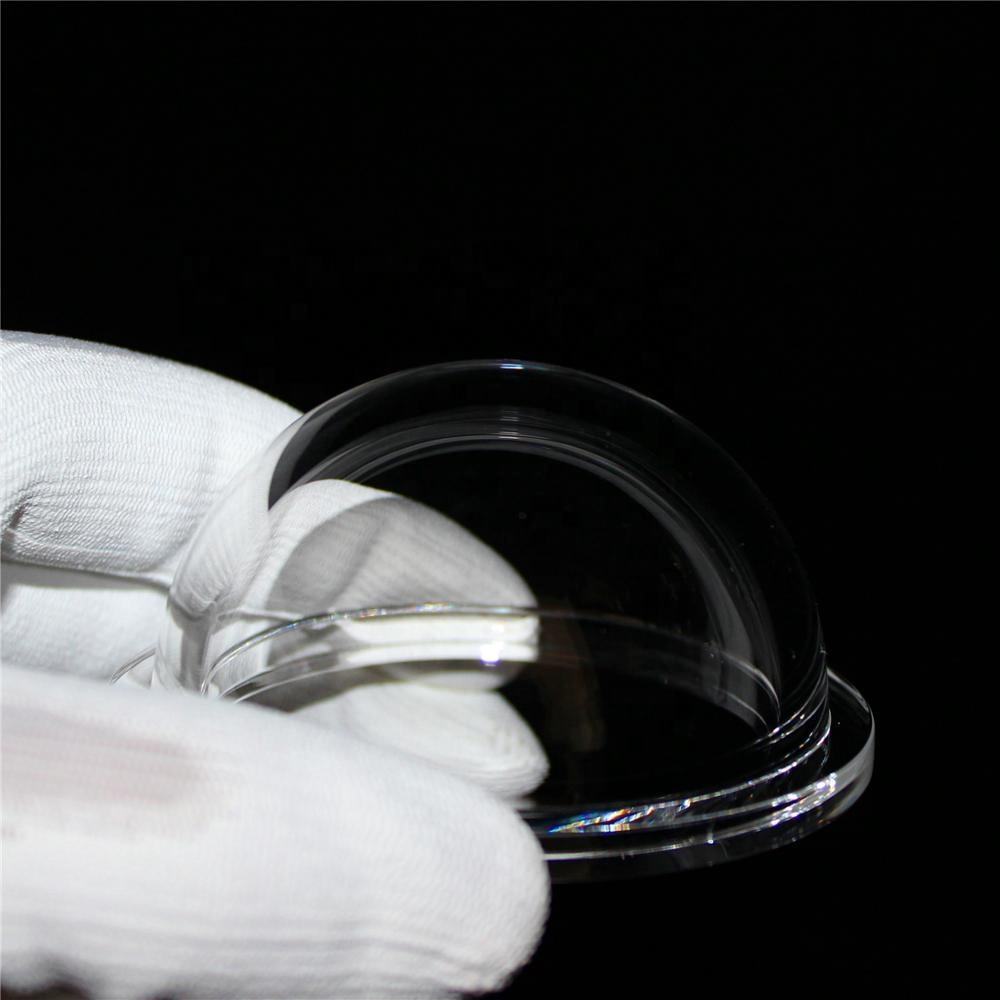

Custom Manufacturing and Inspection Requirements
Typical Applications
Frequently Asked Questions
Can this dome be used at 1,000 m or greater depth?
Is the 89 mm size a standard stock item?
Can you manufacture a different dome size or flange?
Are mounts and O-rings included?
What information is needed for an accurate quotation?
