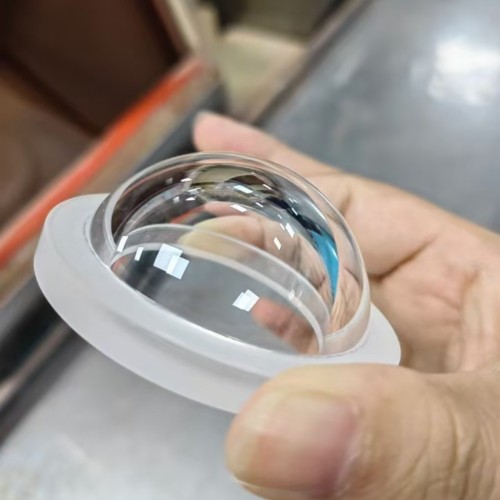

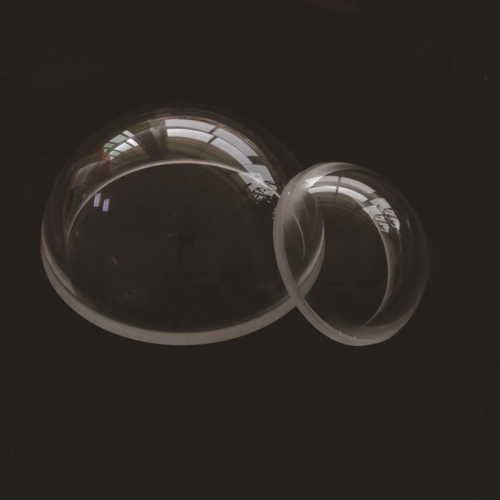

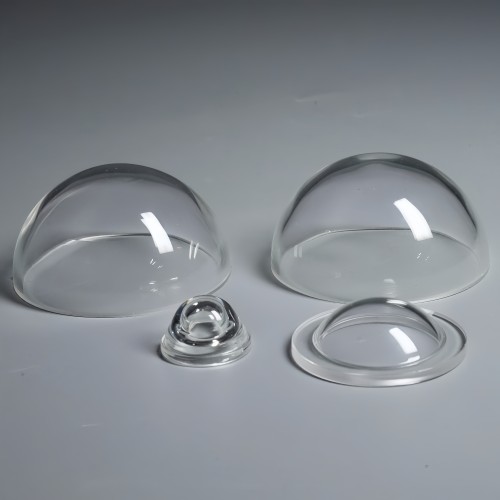

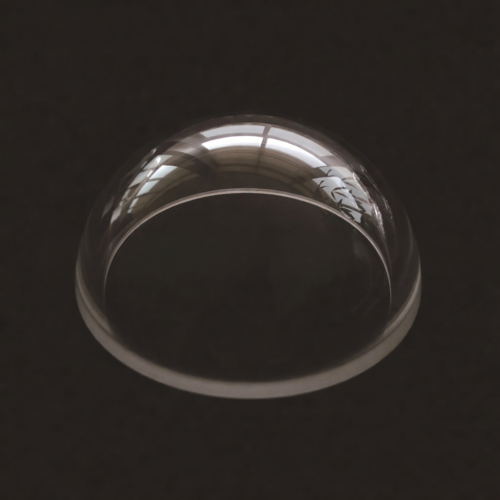

3000m Deep Sea Optical Dome Port | Underwater Camera Lens Cover
- Model
- FG-DOME-3000M
Item specifics
- Material
- Fused Silica / BK7
- Outer Diameter
- 20–60 mm, custom
- Coating
- Optional Broadband AR coating
- MOQ
- 5 pcs; 1 pc sample acceptable
- Lead Time
- 3–5 weeks
Review
Description
3000m Deep Sea Optical Dome Port
Underwater Camera Lens Cover
Our 3000m rated optical dome ports are custom subsea optical windows designed for underwater camera housings, ROV and marine inspection equipment. With working pressure up to 300 bar, these dome ports deliver stable optical performance under deep seawater pressure. Diameter range 20–60 mm. No stock available, fully custom fabrication. Submit your drawing now to get quotation for 3000m subsea optical dome port.
Request Quotation View Technical Specs
Key Features of 3000m Optical Dome Port
Engineered for deep seawater high pressure, seawater corrosion resistance and low distortion underwater imaging.
- Rated working depth: 3000 meters (300 bar hydrostatic pressure)
- Available material: JGS1 Fused Silica (Recommended), BK7 optical glass
- Diameter range: 20 mm ~ 60 mm
- Shape options: Hemispherical dome / flat optical window
- Optional AR anti-reflection coating for visible & near infrared
- Pass factory hydrostatic pressure test, test certificate available
- Excellent seawater corrosion resistance, low optical distortion
Typical Applications
Custom deep sea dome ports deployed for subsea visual inspection & marine scientific systems.
- ROV / AUV underwater inspection cameras
- Subsea pipeline & underwater structure monitoring
- Marine scientific observation instruments
- Offshore underwater visual detection systems
Technical Specification Table
Core technical parameters for our custom 3000m deep sea optical dome port series.
| Item | Specification |
|---|---|
| Depth Rating | 3000 m |
| Material | Fused Silica / BK7 |
| Outer Diameter | 20–60 mm, custom |
| Surface Quality | 60/40 |
| Surface Accuracy | λ @632.8nm |
| Coating | Optional Broadband AR coating |
| MOQ | 5 pcs; 1 pc sample acceptable |
| Lead Time | 3–5 weeks |
| Test | Hydrostatic pressure test report optional |
Material Selection Guide for 3000m Dome
Select the optimal optical blank to avoid failure under 300 bar deep seawater pressure.
Fused Silica (JGS1) is the preferred option for 3000m deep sea. It offers high compressive strength, stable optical transmission and strong resistance to seawater corrosion. BK7 is available for cost-sensitive projects with strict annealing process. Acrylic is NOT acceptable for 3000m service.
Material Selection Chart
| Material | Max Rated Depth | Hydrostatic Resistance | Seawater Resistance | Optical Performance | Cost Level | Recommended Use Case |
|---|---|---|---|---|---|---|
| JGS1 Fused Silica | 3000m+ | Excellent | Excellent | High transmittance, low birefringence | Medium | Primary choice for 3000m ROV/AUV camera dome |
| BK7 Optical Glass | ≤3000m (with strict annealing) | Good | Good | Good for visible band | Low | Cost-sensitive projects, not for long-term deep immersion |
| Sapphire | 7000m+ | Outstanding | Outstanding | High hardness & transmission | High | Reserve upgrade option for 3000m when extra safety margin needed |
| Acrylic (PMMA) | <500m | Poor, creep risk | Fair | Good light transmission | Very Low | NOT acceptable for 3000m service |
Note: Acrylic is not recommended for 3000m deep water due to material creep and failure risk under high pressure.
Manufacturing & Pressure Validation
Rigorous machining workflow and pressure simulation to guarantee subsea reliability.
Every custom dome port is precision ground, polished and inspected. We perform pressure simulation before machining. Final hydrostatic pressure test can be provided upon request to verify safety margin under 300 bar.
Customization Options
Custom geometry, coating and tolerances matched to your underwater camera housing design.
- Custom OD, ID, wall thickness & flange dimension
- AR coating for target wavelength band
- Custom drawing tolerance per your mechanical housing
- Flat optical window alternative if you do not need wide-angle dome
MOQ & Lead Time
All 3000m optical dome ports are custom manufactured with no ready stock.
No ready stock. MOQ is 5 pcs. Sample order of 1 piece is supported with separate sample cost. Production lead time 3–5 weeks including inspection and pressure test.
How To Order
Simple RFQ workflow for your custom subsea optical dome project.
Please send your engineering drawing or dimension sketch, define dome/flat type, working wavelength and coating requirement. We will return formal quotation and DFM review within 24 hours.
Frequently Asked Questions
Do you have 3000m dome ports in stock?
No stock, all custom manufactured.
Can you make diameter between 20–60 mm?
Yes, this is our core size range for this series.
Is pressure test certificate available?
Yes, we can provide factory hydrostatic test document.
Can I get 1pc sample for testing?
Yes, sample order is acceptable.
