7000m Ultra Deep Sea Optical Dome Port | Underwater Camera Lens Housing
- Model
- FG--Sea -DOME-23
Item specifics
- Material
- Sapphire (Recommended) / Fused Silica
- Outer Diameter
- 20–60 mm, custom
- Surface Quality
- 60/40
- Surface Accuracy
- λ @632.8nm
- Coating
- Optional Broadband AR coating
- MOQ
- 5 pcs; 1 pc sample acceptable
- Lead Time
- 4–6 weeks
- Applications
- Deep ROV / AUV Camera System,Deep Ocean Exploration
Review
Description

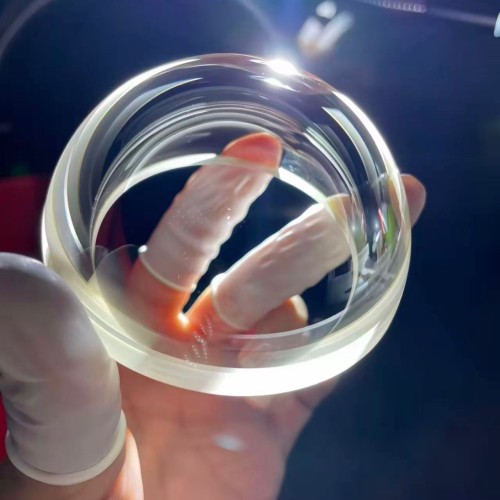

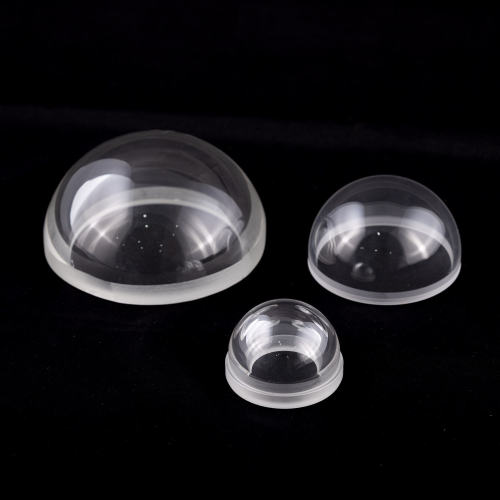

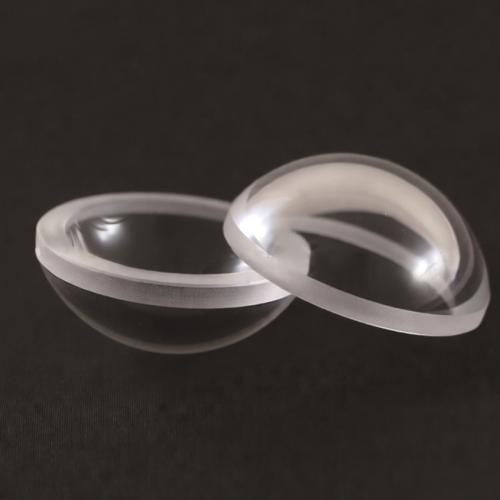

7000m Ultra Deep Sea Optical Dome Port
Underwater Camera Lens Housing
Our 7000m ultra-deep optical dome ports are engineered for extreme deep-sea environments, rated to 700 bar hydrostatic pressure for deep-water ROV, AUV and deep ocean camera housings. Diameter range 20–60 mm. No inventory, fully custom production.
Request Quotation View Technical Specs
Key Features of 7000m Optical Dome Port
Engineered for 700 bar extreme abyssal pressure, outstanding seawater corrosion resistance and stable deep ocean imaging performance.
- Rated working depth: 7000 meters (700 bar extreme pressure)
- Preferred material: Single-crystal Sapphire (C-axis oriented)
- Alternative: JGS1 Fused Silica with reinforced wall thickness
- Diameter range: 20 mm ~ 60 mm
- Shape: Hemispherical dome / flat optical window
- Optional multilayer AR coating
- Full FEA pressure simulation + hydrostatic pressure test
- Superior seawater & chemical corrosion resistance
Technical Specification Table
Core technical parameters for our custom 7000m ultra deep sea optical dome port series.
| Item | Spec |
|---|---|
| Depth Rating | 7000 m |
| Material | Sapphire (Recommended) / Fused Silica |
| Outer Diameter | 20–60 mm, custom |
| Surface Quality | 60/40 |
| Surface Accuracy | λ @632.8nm |
| Coating | Optional Broadband AR coating |
| MOQ | 5 pcs; 1 pc sample acceptable |
| Lead Time | 4–6 weeks |
| Test | FEA simulation + hydrostatic pressure certificate |
Material Selection Guide for 7000m Dome
Select the optimal optical blank to guarantee safety under 700 bar ultra deep seawater pressure.
Sapphire is the primary recommendation for 7000m extreme deep sea. C-axis oriented sapphire delivers the highest compressive strength, long-term stability under 700 bar. Fused Silica is available but needs thicker wall design and pressure simulation. BK7 / acrylic cannot be used for 7000m service.
Material Selection Chart
| Material | Max Rated Depth | Hydrostatic Resistance | Seawater Resistance | Optical Performance | Cost Level | Recommended Use Case |
|---|---|---|---|---|---|---|
| C-axis Sapphire | 7000m+ | Outstanding | Outstanding | High hardness, scratch resistant, stable transmission | High | Primary material for 7000m ultra-deep dome port |
| JGS1 Fused Silica | 7000m (reinforced wall + FEA validation) | Very Good | Excellent | Superior optical uniformity | Medium-High | Alternative option, requires customized thick wall & pressure simulation |
| BK7 Optical Glass | <3000m | Not sufficient | Good | Visible band transmission | Low | NOT suitable for 7000m deep application |
| Acrylic (PMMA) | <500m | Poor | Fair | Good light transmission | Very Low | Forbidden for 7000m extreme deep sea |
Note: BK7 and acrylic cannot withstand 700 bar pressure. Sapphire C-axis cut is the top recommendation for long-term ultra-deep operation.
FEA Simulation & Pressure Testing
Mandatory FEA simulation before production plus hydrostatic pressure validation for extreme 700bar conditions.
For all 7000m dome orders, finite element pressure simulation is mandatory before production. After polishing, we support hydrostatic pressure testing to validate safety margin for 700 bar deep water condition.
- FEA finite element pressure simulation prior to machining
- Stress analysis for sapphire / fused silica dome geometry
- Precision grinding & optical surface polishing
- Optional hydrostatic pressure test certificate
Customization Options
Custom dome geometry, AR coatings and mechanical tolerances matched to your deep ocean camera housing.
- Custom OD, ID, wall thickness and flange geometry
- AR coating for target wavelength (VIS / NIR)
- Flat optical window option for non-wide-angle lens
- Tolerance adjustment to match your camera housing
MOQ & Lead Time
All 7000m ultra deep optical dome ports are custom manufactured with no ready stock.
No ready stock. MOQ 5 pcs. Single piece sample available at sample pricing. Lead time 4–6 weeks including FEA simulation, optical fabrication and pressure validation.
MOQ: 5 pcs
Standard minimum order quantity for custom production.
Lead Time: 4–6 weeks
Includes FEA simulation, fabrication and pressure validation.
How To Order
Simple RFQ workflow for your custom ultra-deep sea optical dome project.
Send your mechanical drawing, select dome/flat type, specify wavelength and coating needs. Our optical engineer will provide DFM feedback and formal quotation within 24 hours.
Typical Applications
C-axis sapphire ultra-deep dome ports used for abyssal imaging and deep ocean exploration systems.
- Deep diving ROV & AUV visual imaging
- Deep sea resource exploration equipment
- Abyssal marine scientific research cameras
- Deep ocean structural monitoring instruments
Deep ROV / AUV Camera System
7000m rated sapphire dome port for abyssal underwater visual inspection vehicles.
Deep Ocean Exploration
Deep sea resource survey and abyssal scientific observation instruments.
Frequently Asked Questions
Do you keep 7000m dome ports in stock?
Not in stock, all ultra-deep dome ports are custom built.
Can you produce 20–60 mm diameter?
Yes, 20mm to 60mm is our standard custom size range.
What material is best for 7000m?
Sapphire (C-axis cut) is the recommended material for 7000m deep service.
Can I order one sample?
Yes, 1pc sample order is supported.
