AR anti-reflection
Reduces surface reflection under sunlight and cabin lighting so more display luminance reaches the viewer.
Custom Multi-Size Automotive Display Cover Glass for Car Center Console Dashboard Infotainment
- Model
- FG-DCG-220
Item specifics
- Base Glass Material
- Chemically Tempered Aluminosilicate Glass
- Surface Coating
- AR Anti-reflection + AF Anti-fingerprint Dual Coating
- Available Thickness
- 1.1mm / 1.5mm / 2.0mm Customizable
- Working Temperature Range
- -30℃ ~ 85℃ Automotive Grade
- Custom Processing Service
- CNC Cutting, Silk Screen, Hole Punching, Chamfer
Review
Description
Felix Glass Co., Limited · Model FG-DCG-220
1. Multi-Size Automotive Display Cover Glass Overview
Felix Glass manufactures chemically strengthened aluminosilicate cover glass for vehicle dashboards, center consoles, navigation systems, instrument displays, and infotainment touchscreens. The panel can be produced in multiple sizes and custom profiles to match the display module and interior housing.
The existing product specification lists a chemically tempered substrate, Mohs grade 7 scratch-resistance reference, AR anti-reflection and AF anti-fingerprint coatings, and a working-temperature reference from -30°C to 85°C.
This product remains in the Display Cover Glass category.
Values below retain the source product information. Final substrate, size, tolerance, coating, printing, test method, and acceptance criteria are confirmed against the approved drawing and project standard.
Optical and touch surfaces
2. AR Anti-Reflection and AF Anti-Fingerprint Functions
The AR+AF combination addresses reflected light over the display and fingerprint adhesion on a frequently touched panel. Each treatment should be specified using measurable optical and surface targets.
AF anti-fingerprint
Reduces adhesion from fingerprints, skin oil, and routine stains so the surface can be wiped more easily.
Strengthened glass
Chemical strengthening supports scratch and structural performance for handling, assembly, vibration, and daily touch use.
Browse the broader Felix Glass product catalog for related display and functional-glass options.
Cabin environmental planning
3. Automotive Temperature-Cycle Reference
The original product description and visible attributes list a -30°C to 85°C automotive working-temperature range. They also state that the coating is intended to maintain optical performance without peeling or fading through the specified temperature cycle.
- Low temperature: evaluate glass, printing, adhesive, and housing stress at the specified cold condition.
- High temperature: assess coating, ink, bonding, and display behavior for parked-vehicle cabin exposure.
- Temperature cycling: define ramp rate, dwell time, cycle count, inspection method, and acceptance criteria.
The listed range is a product reference, not a stand-alone certification statement.
Drawing-based customization
4. Multi-Size CNC Cutting, Openings, and Edge Finishing
Felix Glass supports multiple sizes and custom geometry from customer engineering files. The original content lists precision cutting, CNC positioning holes, edge chamfering, and customized black silk-screen borders.

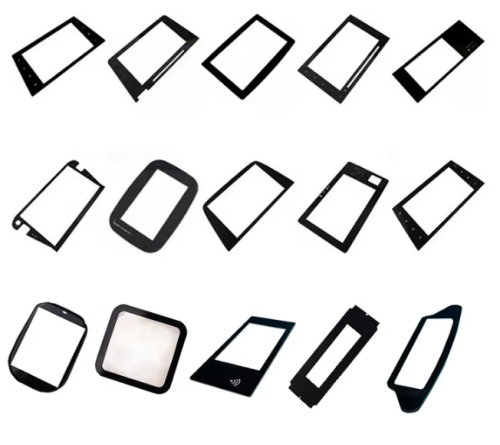

Multi-size production
Panel length, width, thickness, and aspect ratio are reviewed against material and process limits.
CNC openings
Positioning holes, button areas, sensor windows, slots, and other features can be processed from CAD data.
Edge chamfering
Edge geometry is selected for handling, bonding, assembly clearance, and stress control.
Silk-screen printing
Black borders, reserved display areas, model markings, icons, and customer logos can be matched to approved artwork.
The source specification lists ±0.01 mm dimensional tolerance. Feasibility depends on feature geometry, datum definition, measurement method, and drawing approval. Read more about the company on About Us.
Housing and module fit
5. Irregular Profiles and Vehicle-Display Integration

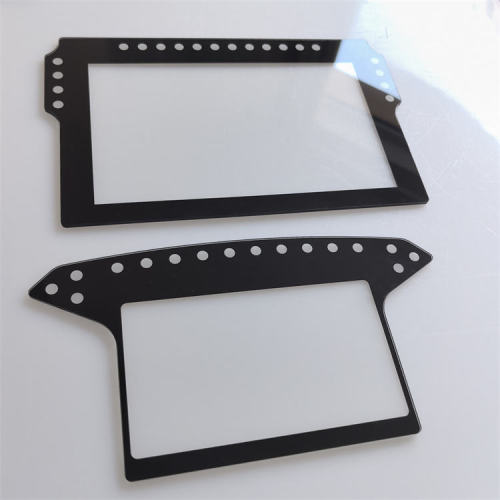

The source content describes irregular panels with positioning holes, reserved button areas, and model-specific printing. These features can be evaluated for center consoles, dashboard displays, navigation frames, and other vehicle interfaces.
The original description references navigation-frame applications associated with Toyota, Honda, BMW, Mercedes-Benz, and Volkswagen vehicles. Fit must be verified from the exact part drawing, model year, module, and housing. Brand names identify compatibility targets and do not imply affiliation.
Additional application and process guidance is available in the Felix Glass blog.
Inspection planning
6. Flatness, Optical, Durability, and Appearance Inspection
The existing description lists flatness, transmittance, friction durability, and appearance inspection, supported by CCD visual-inspection equipment in a Class 100 clean-workshop environment.
FlatnessMeasurement method and allowable deviation should match the bonding and display-module requirements.
Optical performanceTransmittance and reflectance targets should identify wavelength range, angle, and sampling plan.
Friction durabilityLoad, material, stroke, cycle count, and pass criteria should be defined for the coating and printing.
AppearanceInspection conditions can cover scratches, particles, print alignment, coating uniformity, and edge quality.
Manufacturing capability
7. Cutting, Printing, Machining, and Clean Handling

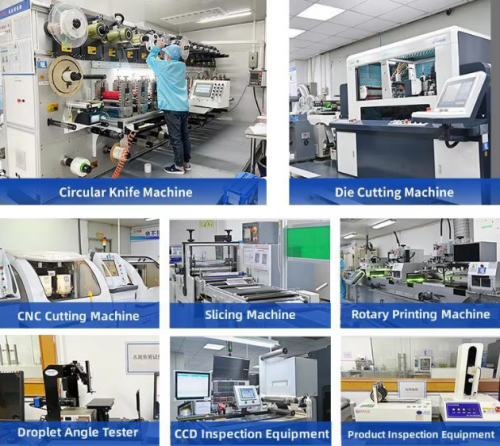

The original product content lists rotary printing, CNC cutting, die cutting, and slicing equipment as part of the available production line. The working route is set according to substrate, dimensions, shape, openings, printing layers, and coating sequence.
- 1Material and drawing review
- 2Cutting and profile machining
- 3Edge and opening processing
- 4Cleaning and printing
- 5Strengthening and coating
- 6Inspection and clean packaging
Start from the Felix Glass home page for a broader view of material and processing capabilities.
Prototype and volume programs
8. Automotive Display Applications and OEM Supply
The product is intended for commercial-vehicle equipment suppliers, automotive interior display programs, aftermarket upgrade projects, prototype builds, and volume production.
Dashboard displays
Cover glass for digital instrument clusters, navigation interfaces, and driver-information modules.
Center consoles
Multi-size touchscreen glass with printed borders, positioning features, and AR/AF surface options.
Commercial equipment
Custom display protection for fleet, truck, bus, and specialized vehicle-control interfaces.
Prototype and production discussions can begin through Contact Us.
Source specification consolidated
9. Automotive Cover Glass Specification Summary
| Base material | Chemically strengthened aluminosilicate glass |
|---|---|
| Scratch reference | Mohs grade 7 listed in the original specification |
| Surface coating | AR anti-reflection + AF anti-fingerprint |
| Working-temperature reference | -30°C to 85°C |
| Available thickness | 1.1 mm, 1.5 mm, and 2.0 mm; custom review available |
| Dimensional-tolerance reference | ±0.01 mm, subject to geometry and measurement agreement |
| Additional processing | Black silk-screen borders, CNC positioning holes, irregular cutting, chamfers, and logo printing |
Packaging and RFQ
Send project requirements
10. Dust-Protected Packaging and Drawing-Based Quotation

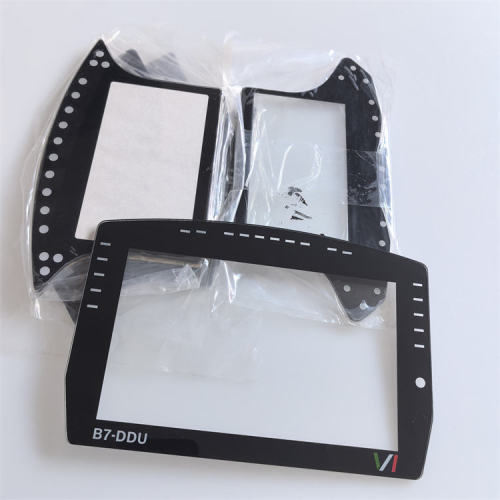

The source specification lists individual dust-protective plastic-bag packaging. Additional separators, protective film, cartons, labels, and shipment validation can be discussed according to panel size, coating, quantity, and transport route.
For a project review, provide the CAD drawing, display type, glass thickness, coating targets, printing artwork, holes and slots, edge requirements, tolerance, annual quantity, inspection standard, packaging, and requested schedule.
