Custom Tempered Glass Display Window Panel | Electronic Device Glass Cover
- Price
- US $2.88-5.99
- Model
- FE-AGP-03004011
- MOQ
- 5 piece
Item specifics
- Material:
- High-Strength Tempered Glass
- Coating:
- AF Anti-Fingerprint / AG Anti-Glare / AR High-Transmittance / ITO Conductive
- Size
- Fully Customizable (Any Dimension & Shape)
- Surface:
- Ultra-Smooth / Matte
- Color:
- Clear / Tinted / Silk Screen Printing / Custom Pattern / Logo Printing
- Production Process
- Cutting → Edge Polishing → CNC Machining → Cleanin
- Edge
- 2.5D / 3D Rounded Edge / Flat Edge / Polished Edge (Customizable)
- Feature:
- High Light Transmittance, Anti-Scratch, Wear-Resistant, Waterproof, Dustproof
- Application
- Electronic Device, Display Screen, Smart Device, Instrument, Industrial Control, Home Appliance
Review
Description

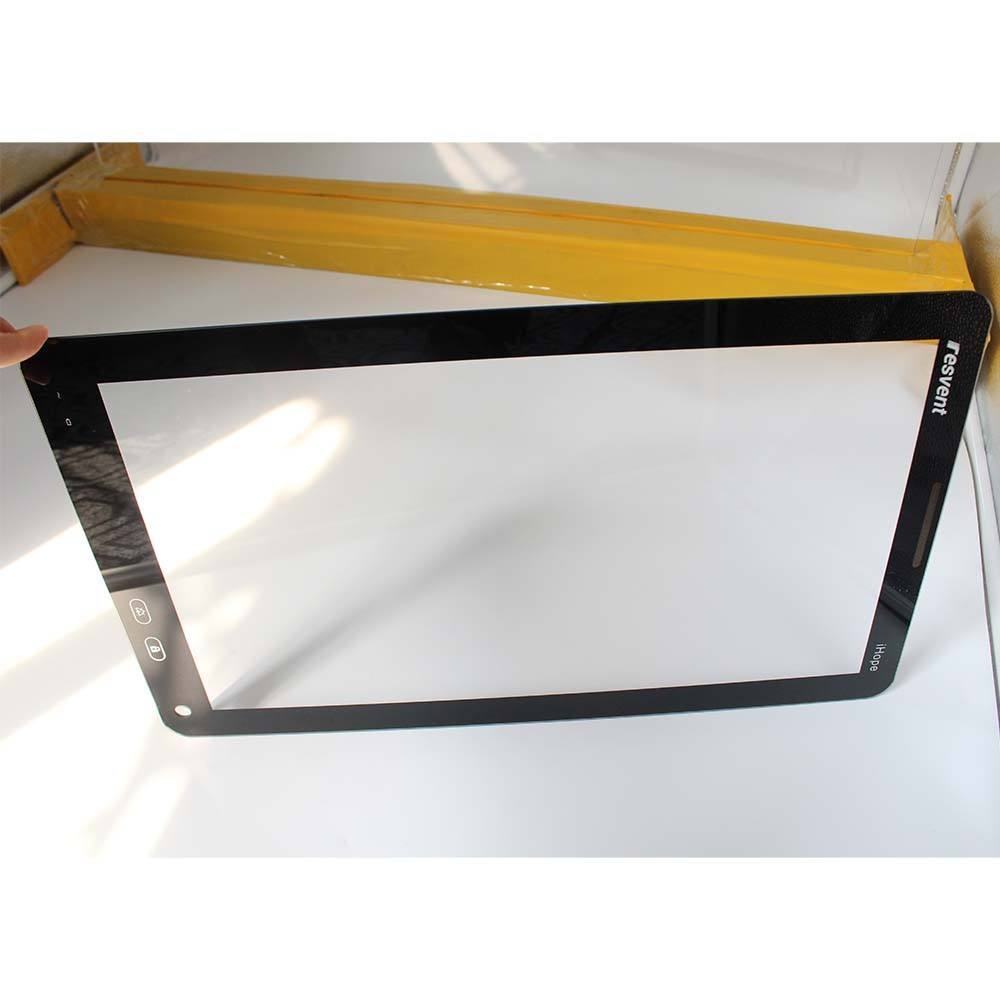

Custom Tempered Display Glass Manufacturer
Felix Glass supplies custom tempered glass display window panels for electronic and smart devices. Core product keywords: glass display window, glass screen cover panel, electronic device glass, printed display glass, tempered viewport panel, smart device glass cover. Full in-house cutting, CNC shaping, silk printing, chemical tempering and AG/AR/AF coating, single prototype to mass production supported.
✅ ISO 9001 Certified
✅ 19+ Years Optical & Display Glass Manufacturing
✅ Custom Size, Printing & Functional Coatings
✅ MOQ 1 Prototype
✅ Fast Global Delivery
Link: [ Request Quote ] | [ Send Drawing ]
Display Glass Panel Types (Image Matrix Ready)
Glass Display Window
Flat transparent tempered viewport for industrial equipment and control cabinets.
Glass Screen Cover Panel
Full-size protective cover for touch screens, HMI and commercial display terminals.
Electronic Device Glass
General tempered glass substrate for all consumer & industrial electronic equipment.
Printed Display Glass
Custom silk printed black border, logo and light-shield frame for display modules.
Tempered Viewport Panel
Impact-resistant tempered window for equipment observation and display viewing areas.
Smart Device Glass Cover
Thin high-strength cover glass for smart home, wearable and portable smart devices.
Technical Specifications
| Parameter | Capability |
|---|---|
| Base Material | High-strength aluminosilicate glass, soda lime glass |
| Size Range | 10mm – 1500mm custom dimension |
| Thickness | 0.3mm – 5.0mm customizable |
| Tempering Index | DOL 30~90μm, CS 600~900MPa |
| Surface Options | AG anti-glare, AR anti-reflection, AF anti-fingerprint |
| Printing Precision | ±0.03mm black border & logo printing |
| Edge Treatment | Flat edge, C/J chamfer, 2.5D rounded edge |
| Testing | Hardness tester, haze meter, AOI full defect inspection |
Material Selection Guide
Aluminosilicate Tempered Glass
Best for smart devices, automotive screens, high-end industrial touch displays
Advantages: 9H anti-scratch, strong drop resistance, stable coating adhesion
Soda Lime Tempered Glass
Best for low-cost equipment viewports, simple electronic display windows
Advantages: Cost-effective, clear transmittance, basic impact protection
Manufacturing Capability
Full closed-loop in-house production flow:
Raw Glass Cutting → CNC Precision Machining → Edge Polishing → Silk Screen Printing → Chemical Tempering → AG/AR/AF Coating → AOI Inspection → Protective Film Lamination
Stable mechanical strength, printing accuracy and optical performance for long-term electronic device operation.
Application Solutions (Problem & Solution)
Industrial HMI Control Display
Problem: Screen scratches, glare and light leakage reduce operation experience
Solution: Printed tempered glass screen cover panel with AG coating, anti-scratch and light-shield black border
Smart Portable Electronic Devices
Problem: Thin glass easily breaks during daily use
Solution: High-strength smart device glass cover with deep chemical tempering for drop resistance
Equipment Observation Viewport
Problem: Ordinary glass cracks under impact and cannot block external glare
Solution: Tempered viewport panel with high impact resistance and clear viewing transmittance
Commercial Touch Terminals
Problem: Fingerprint residue and reflection affect screen visibility
Solution: Glass display window with composite AR+AF coating for clean, high-clear touch experience
Project Cases
Industrial HMI Equipment Project
Custom printed glass screen cover panels with C chamfer and AG coating, mass supplied to factory automation control display manufacturers.
Smart Home Touch Panel Project
Thin tempered smart device glass cover with AF anti-fingerprint coating, widely adopted for wall-mounted smart control screens.
Quality Control & Testing Equipment
100% full inspection before shipment with professional testing instruments:
- AOI Visual Inspection Machine: Detect surface scratch, printing pinhole defects
- Hardness & Stress Tester: Verify tempering DOL and surface compressive stress
- Haze & Spectrophotometer: Test AG haze, AR reflectance and light transmittance Third-party test reports available for electronic OEM brand projects.
Why Choose Felix Glass
- 19+ years tempered display glass manufacturing experience for electronics industry
- Complete CNC, printing, chemical tempering and magnetron sputtering coating lines
- Custom printed black border, logo and functional optical coatings
- Strict control of thickness, tempering stress and printing precision
- Flexible prototype sampling & stable bulk supply for global electronic brands
- ISO9001 certified factory direct pricing
FAQ
What is the difference between glass display window and glass screen cover panel?
Glass display window is simple transparent viewport; glass screen cover panel supports touch matching, silk printing and multi-layer functional coatings.
Can you make printed display glass with custom logo and black frame?
Yes, automatic silk printing line supports customized shading border, brand logo and transparent sensor windows.
What functional coatings are available for electronic device glass?
AG anti-glare, AR anti-reflection, AF anti-fingerprint single or composite coatings are optional.
Is tempered viewport panel impact resistant?
All panels pass chemical tempering process, reach 9H surface hardness and strong anti-drop performance.
Can I get prototype samples for electronic device testing?
Yes, MOQ 1 piece for display project qualification testing.
Related Products
Link: Automotive Display Cover Glass
Link: 2.5D Touch Cover Glass
Link: Rounded edge anti-scratch glass for consumer touch devices
Link: AG AR AF Functional Coated Glass
Link: Single & composite optical coating display protective glass
Link: Optical Quartz Window
Link: Sapphire Optical Cover
Request a Custom Quote
Send your tempered glass drawing, thickness, printing pattern and coating requirements.
Our display glass engineering team will provide customized solutions and factory quotation within 24 hours.
